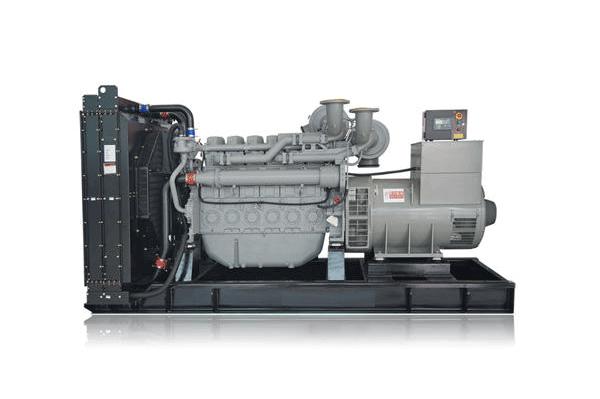

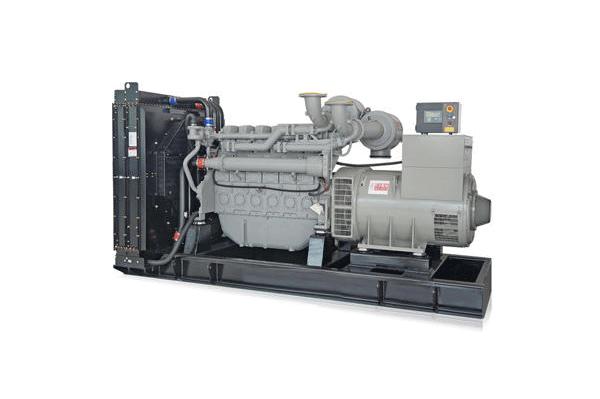

JT‑640KW Perkins Generator | 800kVA Prime Power

The JT‑640KW runs the Perkins 4006‑23TAG3A — a 6‑cylinder 22.92L inline turbocharged diesel engine rated at 640kW prime power with 704kW standby capacity. At 8.8t, it is the lightest unit in JUTOP's Perkins range and targets the sub‑1000kVA market where medium‑scale manufacturers, agricultural processing facilities, small‑to‑mid telecom switching stations and commercial building complexes require reliable prime or backup power without the capital commitment of larger V‑configuration sets. The 22.92L displacement engine sits in the sweet spot of the Perkins 4000 series — large enough for genuine 640kW continuous output, compact enough for standard container or truck transport without specialized logistics.

The Perkins 4006‑23TAG3A delivers continuous 640kW prime power per Perkins 4006‑23TAG3A power curve data, with 704kW standby available for 1 hour per Perkins standard operating cycle. Below 500kW, generator sets often run at the edge of their thermal envelope — engines sized to deliver rated output under ideal conditions. At 640kW with the 22.92L displacement, the engine runs well below its peak output capacity at rated load, which means it tolerates high‑ambient‑temperature conditions, altitude derating and sustained partial‑load operation without frequent overheating shutdowns.

The 4006‑23TAG3A is a 6‑cylinder inline engine — the dominant diesel configuration across Africa, South Asia and Southeast Asia for commercial vehicles, agricultural equipment and power generation in the 400‑800kVA range. This is not a niche format: it means local mechanics are familiar with inline‑6 service procedures, fuel injection pump timing and cylinder head replacement without specialized tooling. It also means the supply chain for filters, injectors and gaskets is deep and locally available rather than requiring a Perkins‑authorized distributor for every common repair.

The 4006‑23TAG3A produces 3,400 N·m peak torque at 1500RPM versus the older 4006‑23TAG2A at 3,050 N·m — an 11.5% improvement per Perkins 4000 series datasheet. The practical implication: at 640kW rated output, the engine is running at approximately 85‑90% of its rated power output. Without adequate torque reserve, motor starting loads (inrush currents 6‑7 times running current) cause voltage dip events that trip protection relays. The 11.5% torque improvement over the TAG2A gives the JT‑640KW enough margin to start a 200kW motor directly on‑line without oversized soft‑starters or sequential load‑start sequencing.

At 76‑78 dB(A) at 1 meter, the JT‑640KW is 2‑4 dB quieter than most 800kW+ units and 4‑6 dB quieter than 1,000kW+ sets. This noise level opens deployment options that are impractical for louder units: ground‑floor plant rooms in mixed commercial‑residential zones, basement installations with partial ventilation, and semi‑enclosed canopy setups that do not require heavy acoustic specification. The practical boundary noise difference — at 10 meters, 78 dB(A) becomes approximately 58 dB(A) — is often the threshold between requiring and not requiring a formal noise impact assessment under local planning regulations.

At 640kW with a 22.92L engine, the JT‑640KW sits in the middle of the 4000 series range. The practical benefit: 500‑hour service interval maintained by Perkins across this series, with common consumables (oil filters, air filters, fuel filters, injector seals) shared across the 4006, 4008 and 4012 engine families. For operators running a mixed fleet of JUTOP Perkins generators, stocking one set of filter kits covers multiple engine displacements — reducing inventory cost and simplifying maintenance scheduling for multi‑unit operations.

The TAG3A consumes 216‑224 g/kW·h at 100% load versus the TAG2A at 222‑230 g/kW·h — a 6‑8 g/kW·h improvement per Perkins 4000 series datasheet. At 75% load, the difference is 200‑208 vs approximately 206‑214 g/kW·h. For a manufacturing facility running 4,000 hours annually, the fuel saving between TAG3A and TAG2A at $1.0‑1.3/L diesel works out to roughly $8,000‑18,000 per year. The price premium between a TAG3A and TAG2A unit is typically absorbed within 18‑30 months of operation through fuel savings alone — and the TAG3A carries a stronger residual value for resale or fleet rotation.
