JT‑1200KW Perkins Generator | 1500kVA Prime Power

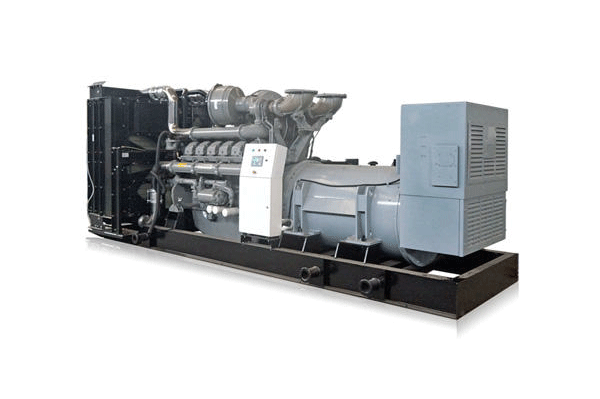

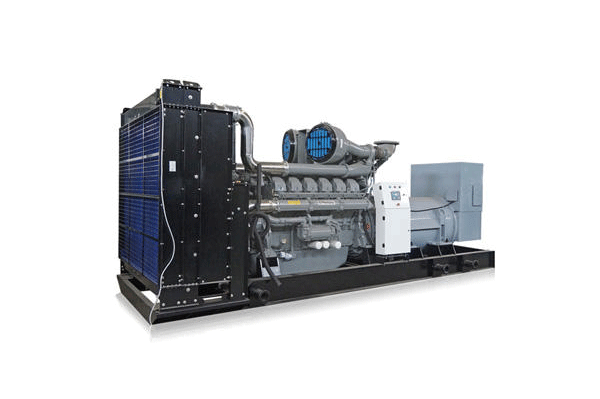

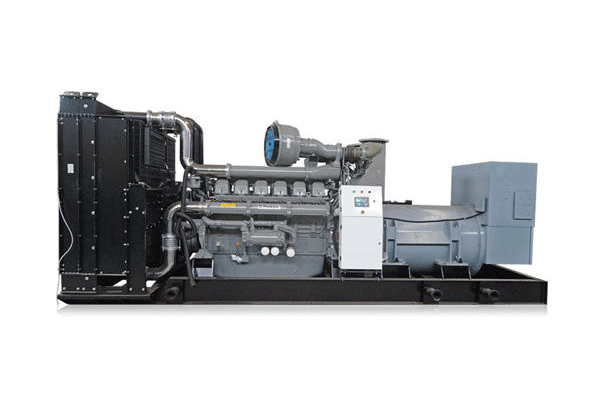

The JT‑1200KW runs the Perkins 4012‑46TAG2A — a 12‑cylinder 45.842L V‑type turbocharged diesel engine rated at 1200kW prime power with 1320kW standby capacity. It targets medium‑large industrial complexes, mine‑site baseload, regional telecom switching stations and smaller data center facilities across Europe, Africa and Southeast Asia. At 12.8t with a 2,000L fuel tank offering approximately 7 hours runtime at 75% load, it sits between JUTOP's smaller V8/V10 generator range and the heavier 1500kW+ V16 units — positioning it as the prime‑power choice for operations that need 1200kW without the footprint and logistics cost of a V16 engine.

The Perkins 4012‑46TAG2A delivers continuous 1200kW prime power per Perkins 4012‑46TAG2A power curve data, with 1320kW standby available for 1 hour per Perkins standard operating cycle. Many projects spec 1200kW generators when the actual load calculation shows 1100‑1150kW running demand — the 10% overload margin covers motor starting currents and short peak events without needing to step up to 1500kW. Oversizing to 1500kW when 1200kW covers the load means higher capital cost, higher fuel consumption at partial load and more complex installation logistics.

The 4012‑46TAG2A is a 12‑cylinder V engine — the most widely supported configuration for 1000‑1500kW diesel generator sets globally. This matters for parts sourcing: V12 is the dominant configuration in this power band, meaning alternator, turbocharger, injection pump and cylinder head gaskets are stocked by distributors across Sub‑Saharan Africa, Southeast Asia and the Middle East. The 4012‑46TAG2A produces 6,200 N·m peak torque at 1500RPM versus the older 4012‑46TAG1A at 5,700 N·m — an 8.8% torque improvement that handles compressor and conveyor motor inrush currents without stall events.

The JT‑1200KW includes an industrial‑grade LCD panel with Diagnostic Trouble Code (DTC) readout capability. When an oil pressure fault or overtemp event triggers a shutdown, the DTC tells the maintenance technician exactly which sensor or circuit is involved — reducing time‑on‑site diagnosis from hours to minutes. For mine sites and telecom switching stations where technicians travel from multiple tower locations in a single day, this cut in diagnostic time translates directly to more generators serviced per shift.

The 4012‑46TAG2A burns 220‑228 g/kW·h at 100% load versus the 4012‑46TAG1A at 226‑234 g/kW·h per Perkins 4000 series datasheet — a 3‑6 g/kW·h improvement at full load. At 75% load, the gap narrows to 204‑212 vs approximately 210‑218 g/kW·h. For an operation running 6,000 hours annually, the difference at $1.2‑1.5/L diesel works out to roughly $13,000‑30,000 in annual fuel savings. At 1000+ operating hours per year, the fuel efficiency gain pays back the price premium between TAG2A and TAG1A units within 2‑3 years.

The 1200kW unit produces 80‑82 dB(A) at 1 meter — 2‑4 dB lower than most 1500kW+ units at equivalent load. In practical terms, this does not make it a quiet generator, but 2‑4 dB lower at source can be the difference between needing a 15dB or a 20dB acoustic canopy to meet local noise ordinances at industrial park boundaries. For telecom sites near commercial zones or industrial complexes adjacent to residential areas, this 2‑4 dB advantage at source reduces canopy specification and associated cost.

Perkins specifies 500 working hours between scheduled services for the 4012‑46TAG2A. For mining and industrial sites running 2‑week on/2‑week off rosters — approximately 350‑400 hours per rotation — the 500‑hour interval means most service events fall within the planned shutdown window at crew changeover rather than requiring a dedicated maintenance visit mid‑cycle. This reduces the total number of site trips per year and avoids paying overtime rates for mid‑roster maintenance calls.
