Drilling depth: 600-1200m
Main motor power:118kW
Total weight: 6T
Drilling depth: 600-1200m
Main motor power:118kW
Total weight: 6T
1200 m Max BTW Depth | 300 kN Lifting Force | Yuchai YC6MK / Weichai WP6 118 kW Engine | 0°‑90° Full‑Angle Drilling

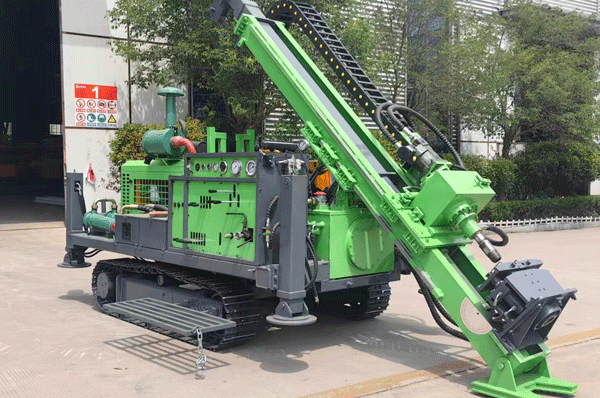

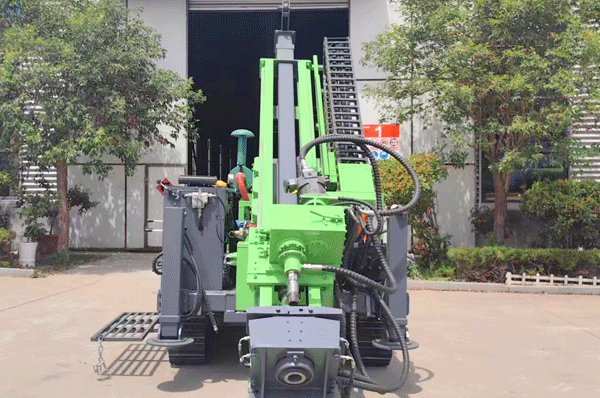

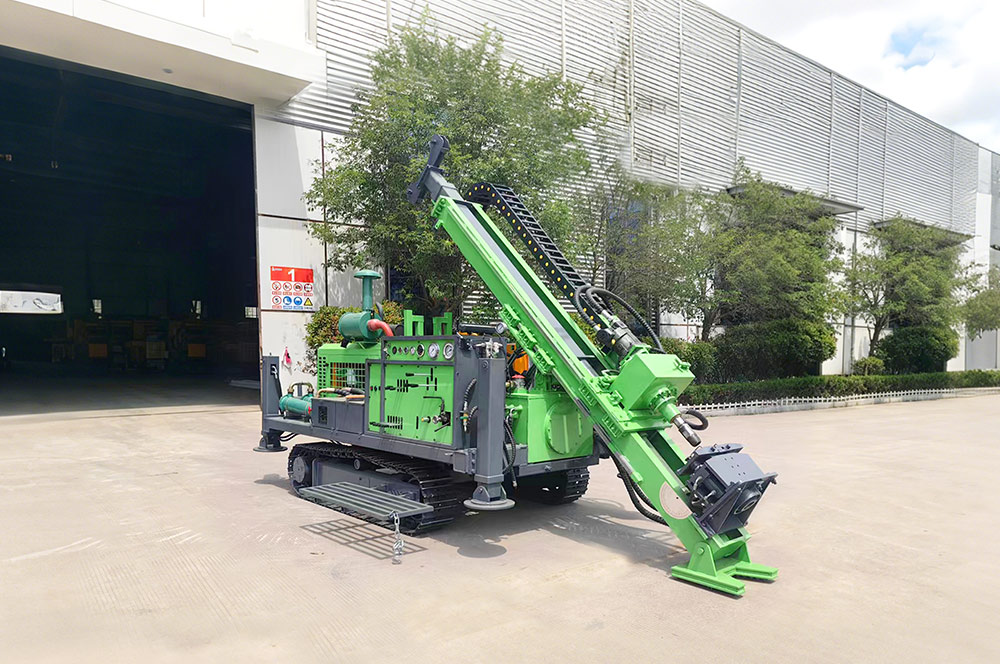

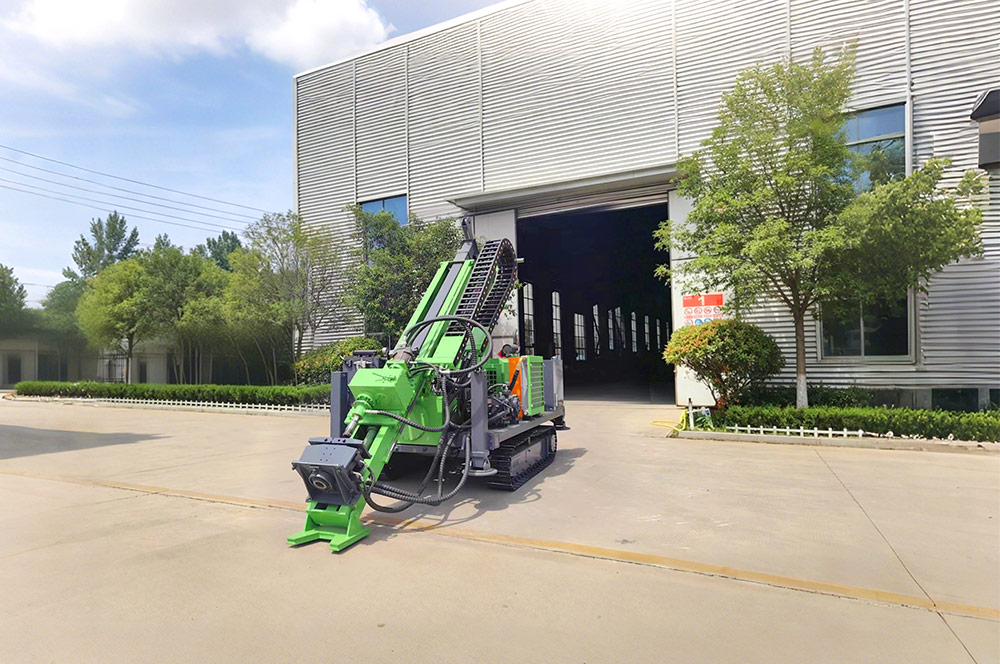

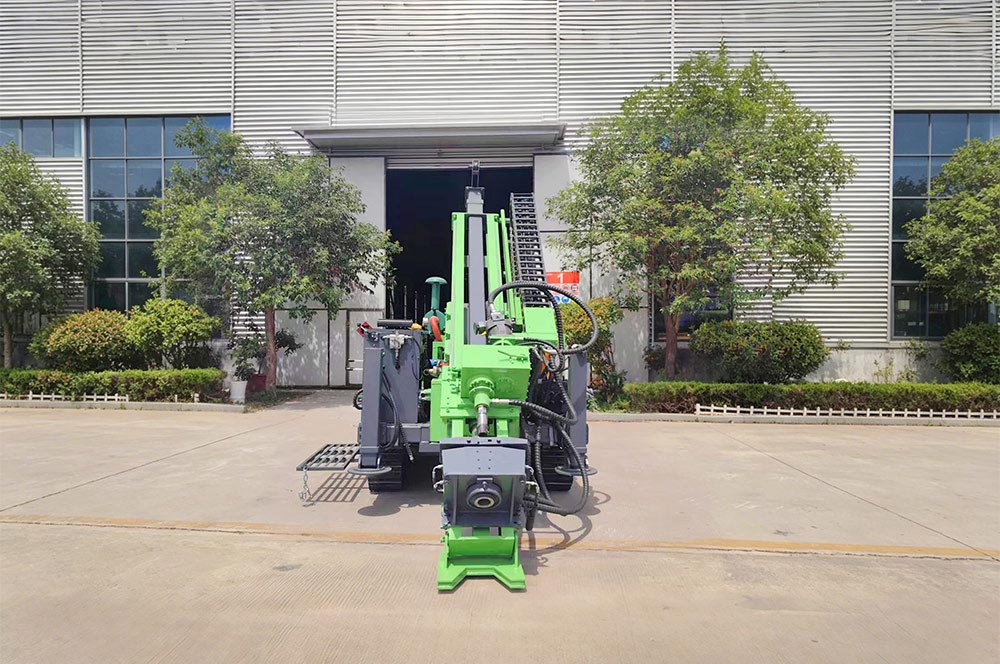

The JTYS‑800 crawler hydraulic wire-line core drill rig is built for medium-deep geological exploration and medium-scale mining projects. It supports dual engine options: Yuchai YC6MK or Weichai WP6 118kW.
Equipped with 32+16MPa high-pressure hydraulic system, it runs stably in mountain areas and hard rock. Featuring 0°‑90° full-angle drilling and compact lightweight design, it meets project standards for Africa, Southeast Asia and other global markets with complete export certifications.

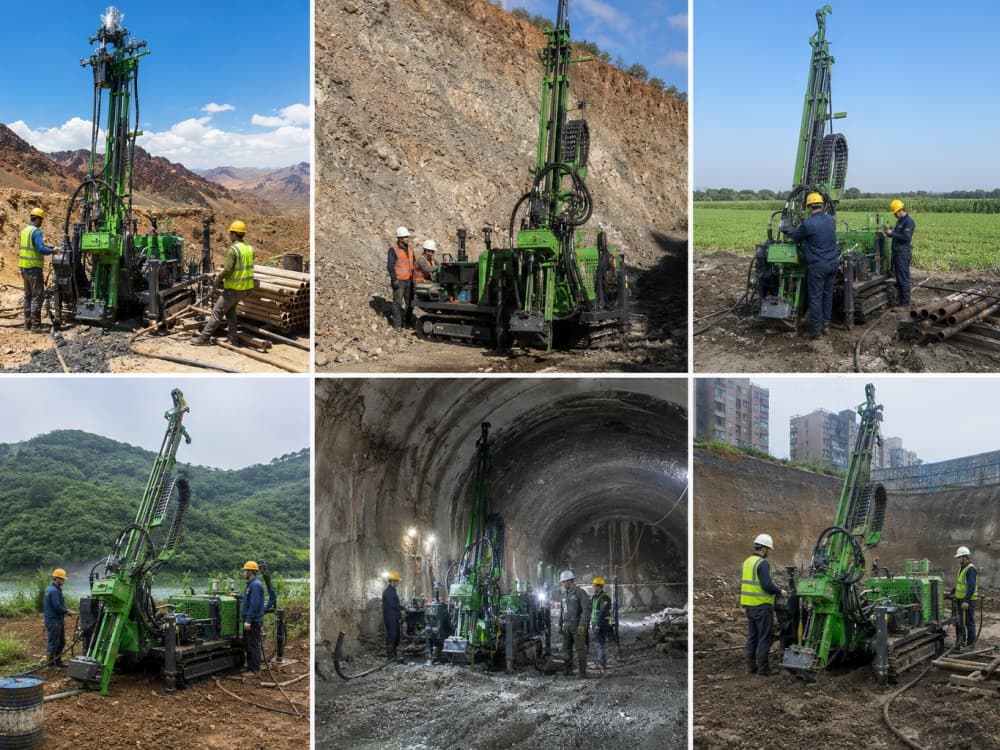

· Medium-scale mineral exploration in mountainous areas
· Core sampling for infrastructure projects
· Subsurface survey for highway & tunnel engineering
· Environmental monitoring drilling in rural regions
· Multi-directional boreholes for irregular terrain
· Regional natural resource prospecting
| Model | JTYS800 |
| Hydraulic System Rated Pressure | 32 + 16 MPa |
| Cooling Method | Air‑cooled + Water‑cooled |
| Engine Model | Yuchai YC6MK / Weichai WP6, 6.87L Displacement |
| Engine Rated Power | 118 kW |
| Maximum Torque | 1,800 N.m |
| Maximum Rotating Speed | 1,400 rpm |
| Feed Stroke | 2.0 m |
| Lifting Capacity | 300 kN |
| Propulsion Force | 150 kN |
| Rope Capacity | 1,000 m |
| Rope Lifting Capacity | 20 kN |
| Rope Lifting Speed | 110 m/min |
| Derrick Total Height | 7.9 m |
| Drilling Angle | 0°‑90° (Vertical‑Horizontal Full Range) |
| Fuel Consumption (Full Load) | 16‑20 L/h |
| Fuel Tank Capacity | 180 L |
| Continuous Working Endurance | 9‑11 Hours |
| Scheduled Maintenance Interval | 250 Working Hours |
| Noise Level | 82 dB(A) @ 1m |
| Transport Dimensions | 4,800 × 2,000 × 2,500 mm |
| Overall Weight | 6.0 t |
| Max Operating Altitude (No Power Loss) | ≤ 1,000 m |
| Max Drilling Depth | 1000 m (NTW) / 1200 m (BTW) |
Regular 800-grade wire-line rigs only reach 950-1000m BTW. This unit achieves 1200m BTW / 1000m NTW, breaking the depth limit of same-class equipment.
It fully meets medium-deep sampling demands for mining and infrastructure projects, and fits mid-scale project budgets perfectly.
Optional Yuchai YC6MK or Weichai WP6 118kW engines, two reliable brands with global after-sales networks.
You can choose the power unit according to local spare parts and fuel supply, improving regional adaptability for cross-border mining projects.

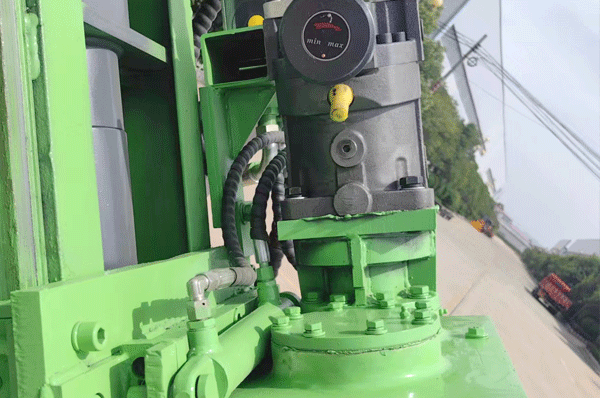

Adopts 32+16MPa high-pressure hydraulic system, stronger than ordinary 800-class rigs. Matched with 300kN lifting force and 150kN propulsion force.
Excellent anti-sticking capability ensures high success rate for tunnel and mountain geotechnical drilling.
Full 0°‑90° angle adjustment supports vertical, inclined and horizontal drilling, different from rigs limited to 45°‑90°.
It adapts to mountain slopes, hills and urban underground works, covering various geotechnical investigation scenarios.
Total weight only 6.0t, lighter and more flexible than traditional 800-grade rigs. It passes narrow mountain roads and rural access roads easily.
Ideal for scattered medium-scale prospecting and regional resource exploration tasks.
Full-load fuel consumption at 16‑20L/h, lower than industry average. 180L fuel tank supports 9-11 hours continuous operation.
250-hour maintenance interval reduces inspection and parts costs, bringing better economic returns for budget-limited projects.
