1,400m Max BTW Depth | 360 kN Lifting Force | Weichai WP6 129 kW Engine | 45°‑90° Angular Drilling

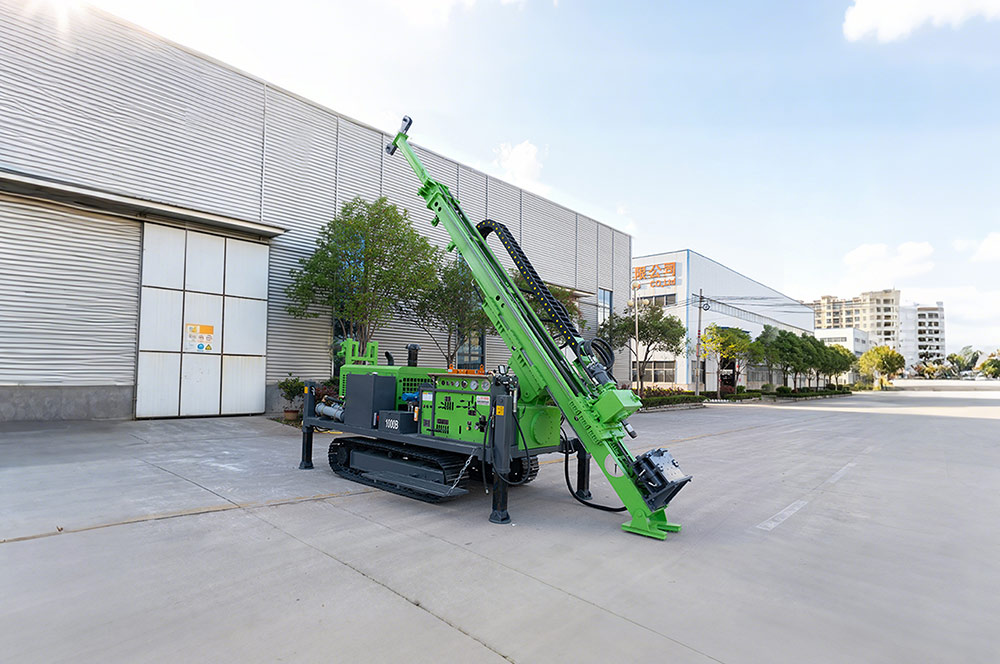

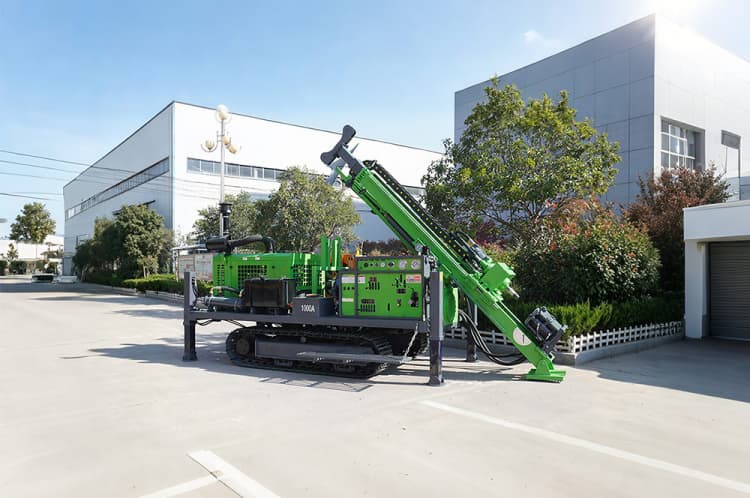

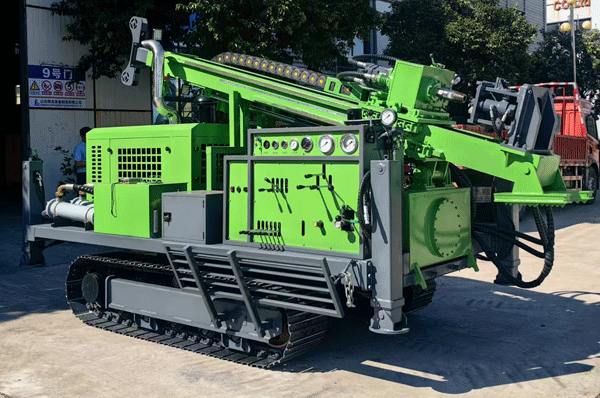

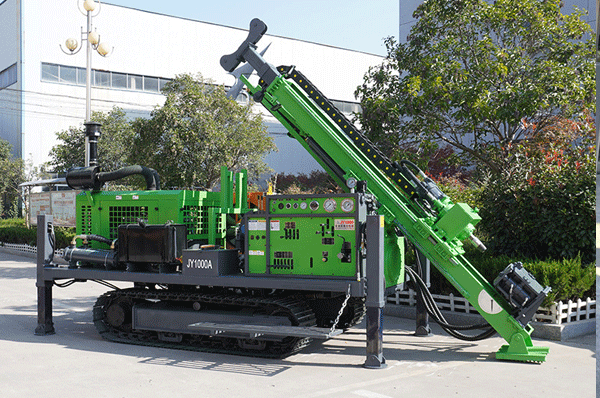

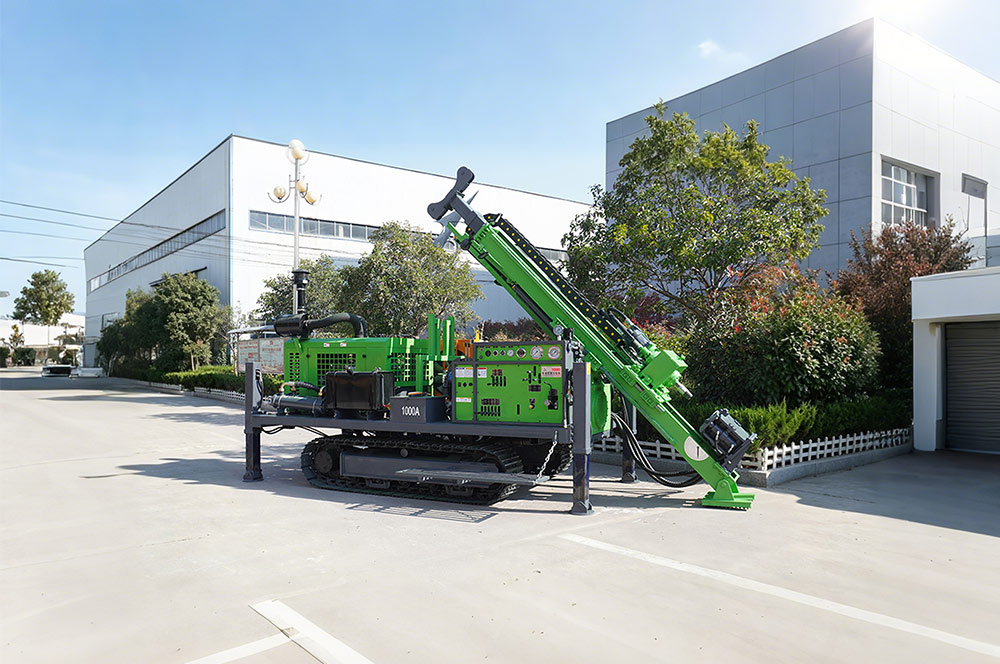

The JTYS-1000 is a heavy-duty hydraulic crawler wireline core drill rig engineered for deep-hole mineral exploration and demanding geotechnical applications. Powered by a genuine 6-cylinder Weichai engine, it delivers stable high-torque performance under extreme mountain conditions and tropical climates, fully matching global mining tender standards.

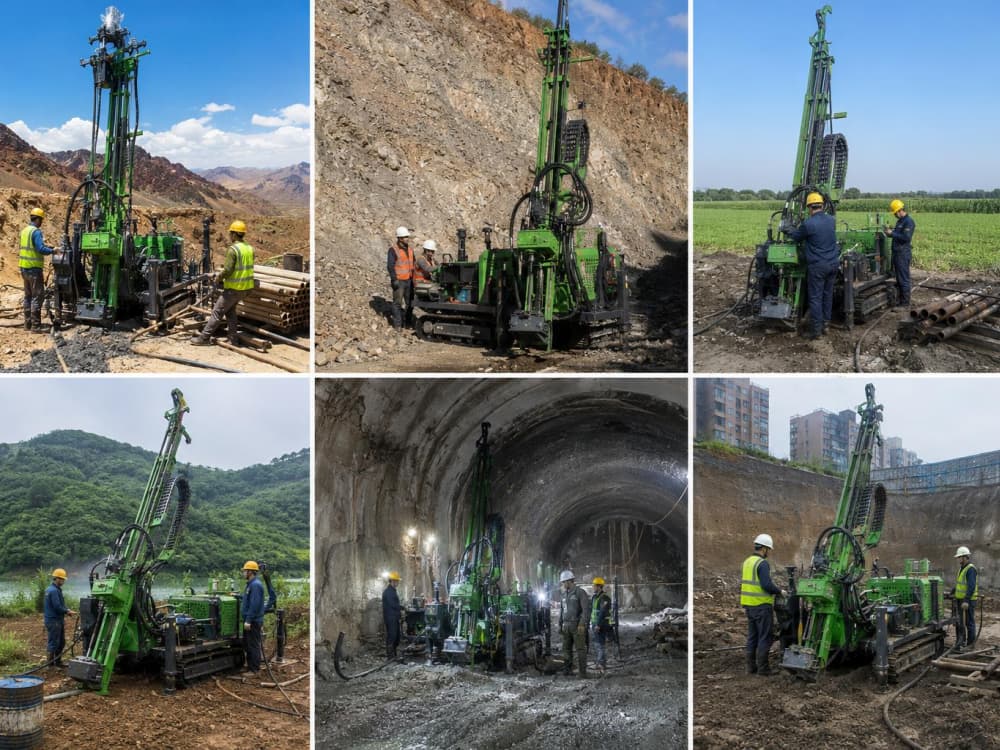

· Deep-hole mineral exploration (Gold, Copper, Silver) in remote terrains.
· High-precision continuous wireline core sampling for deposit evaluation.

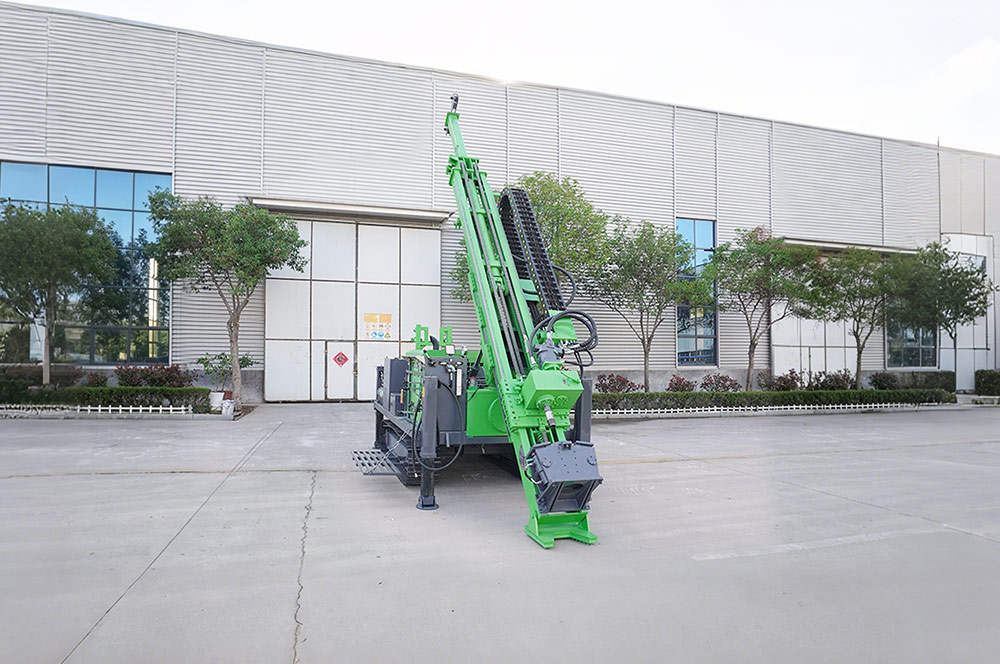

· Angled and vertical deep boreholes (45° to 90°) for structural mapping.
| Parameter | Specification (JTYS1000) |
| Max Drilling Depth | 1,400 m (BTW) / 1,200 m (NTW) |
| Engine Model | Weichai WP6, 6-Cylinder Diesel Engine |
| Engine Displacement | 6.87 L |
| Engine Rated Power | 129 kW @ 2,200 rpm |
| Cooling Method | Air-Cooled + Water-Cooled Dual Radiator |
| Maximum Torque | 2,600 N.m |
| Maximum Rotating Speed | 1,400 rpm |
| Lifting Capacity | 360 kN |
| Propulsion Force | 180 kN |
| Feed Stroke | 1.8 m / 2.0 m (Optional) |
| Slip Stroke | 1,200 mm |
| Winch Rope Capacity | 1,500 m (Heavy-duty drum) |
| Rope Lifting Capacity | 24 kN |
| Rope Lifting Speed | 110 m/min |
| Wire Rope Diameter | 6 mm |
| Derrick Total Height | 6.6 m |
| Drilling Angle Range | 45° - 90° (Adjustable Mast) |
| Clamp Specification | 75 / 89 / 115 mm |
| Maximum Gradeability | 20° |
| Maximum Travel Speed | 2 km/h |
| Fuel Consumption | 18 - 22 L/h (At full workload) |
| Fuel Tank Capacity | 200 L |
| Shift Endurance | 9 - 11 Hours continuous running |
| Maintenance Cycle | Every 250 working hours |
| Noise Level | 84 dB(A) @ 1m |
| Max Operating Altitude | ≤ 1,000 m (High-altitude kits optional) |
| Transport Dimensions | 5,000 × 2,050 × 2,600 mm |
| Overall Weight | 7.8 t |

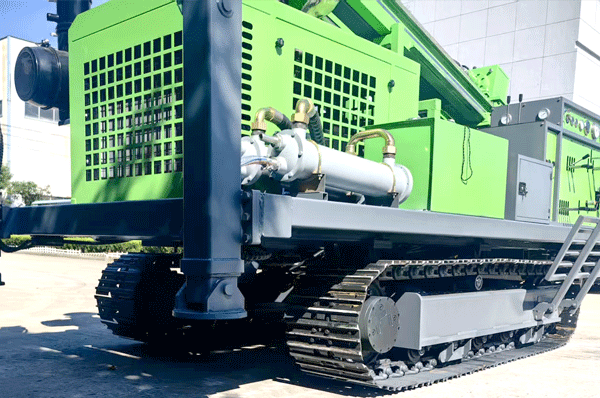

While standard 1000-class rigs struggle past 1,150 meters due to hydraulic pressure drops, the JTYS-1000 maintains continuous flow efficiency to extract full core samples up to 1,400m (BTW) and 1,200m (NTW).
Powered by a 129kW Weichai WP6 engine delivering 2,600 N.m of high torque. The integrated air-water dual cooling system prevents engine overheating and power loss during heavy-load shifts in high-temperature or tropical mine sites.

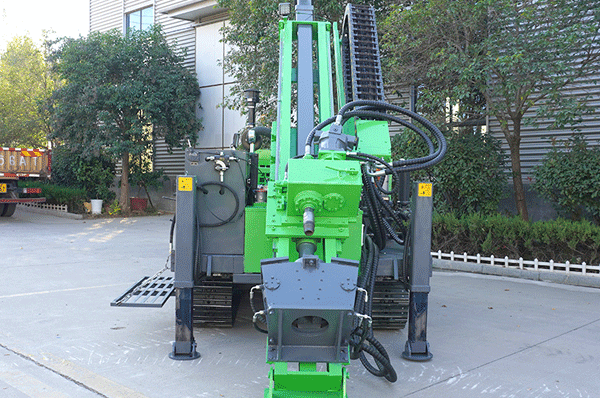

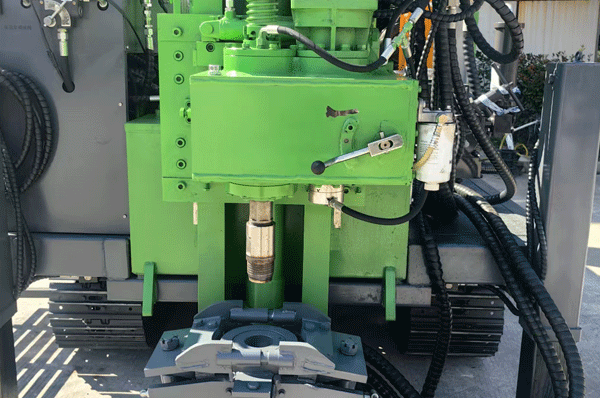

Features an engineering-grade reinforced derrick providing 360kN of lift force. This ensures immediate power reserve to pull out heavy rod strings safely from complex, highly fractured rock formations.
The dedicated wireline winch handles inner tube retrieval at line speeds up to 110 m/min. Fast cycle times reduce non-drilling downtime, driving up daily project footage and shifting schedules ahead.

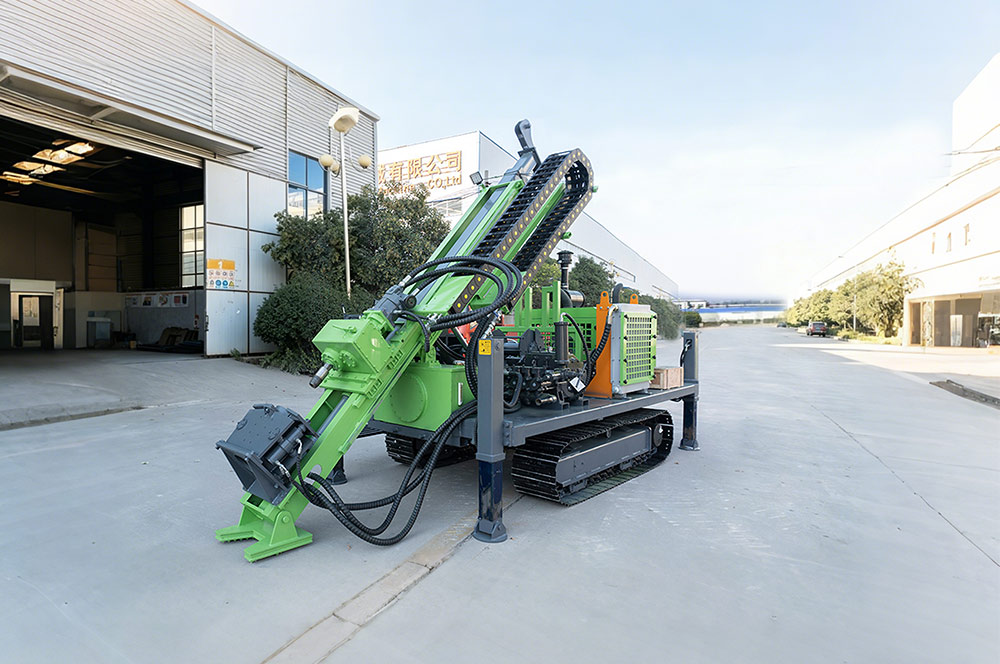

Weighing 7.8 tons with a 6.6m low derrick, it traverses narrow mountain tracks smoothly. The robust steel tracks handle 20° slopes, allowing precise angular core sampling without external setup rigs.
A 200L fuel tank combined with optimized consumption (18-22 L/h) delivers up to 11 hours of continuous operation per shift. Standard 250-hour service intervals minimize downtime and logistical overhead in off-grid exploration zones.
· Factory Price Guarantee: Direct supply with no dealer markups. Authentic components support.
· Tender Compliance: Complete international certifications including ISO9001, CE, NOM, RETIE, INMETRO, SONCAP, PVoC.
· Global Export Support: Full sea freight arrangement, customized customs documentation, and free remote operator training.
· 24-Hour SLAs: Technical specs and commercial quotes issued within 24 business hours.
