Drilling depth:1800-2200m
Main motor power: 180kW
Total weight:12T
Back to List

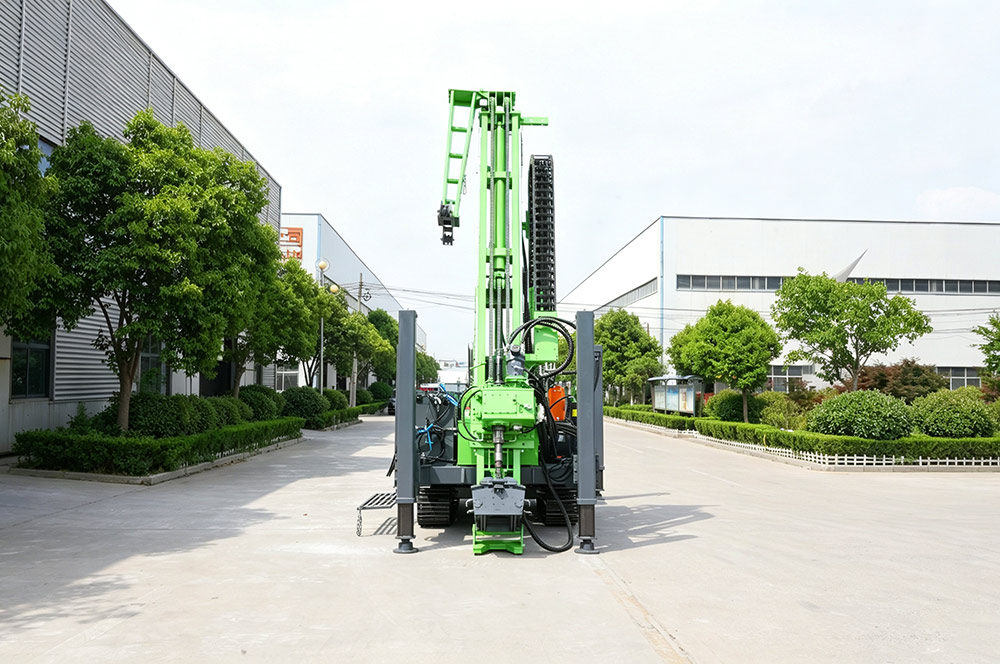

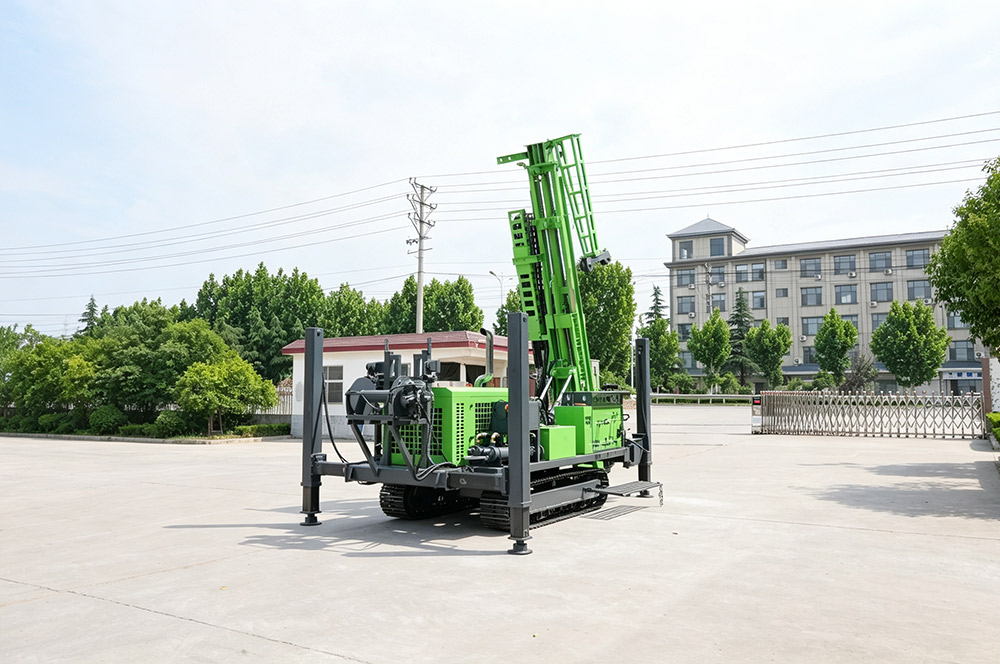

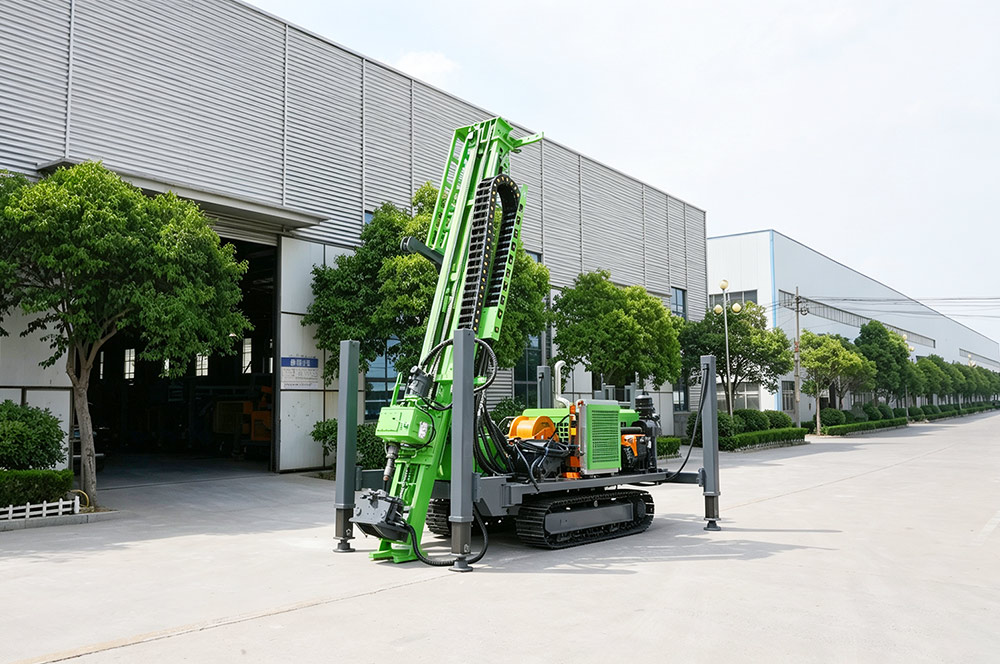

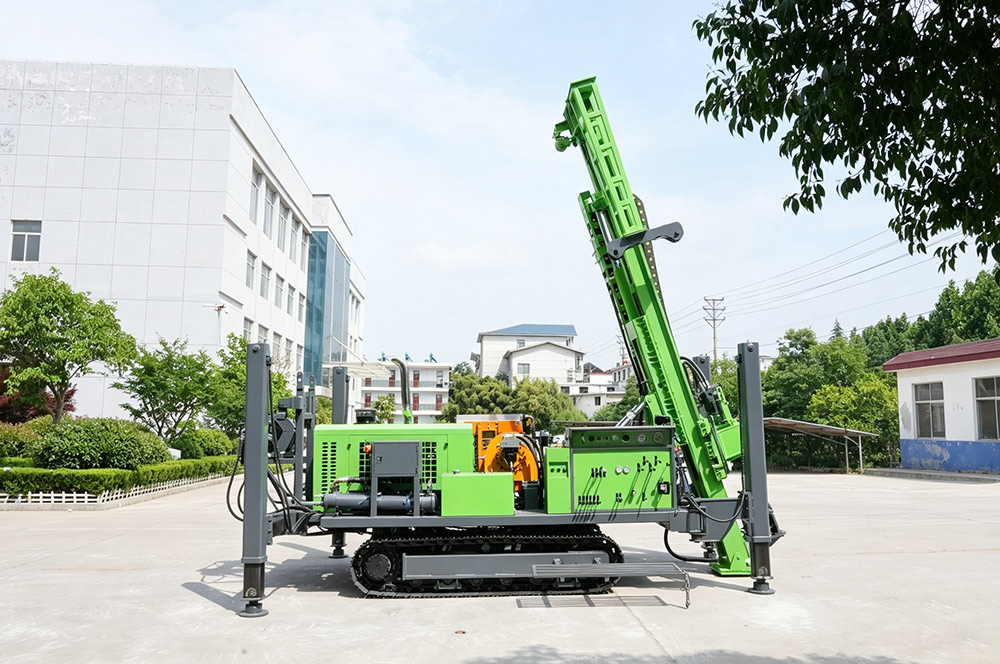

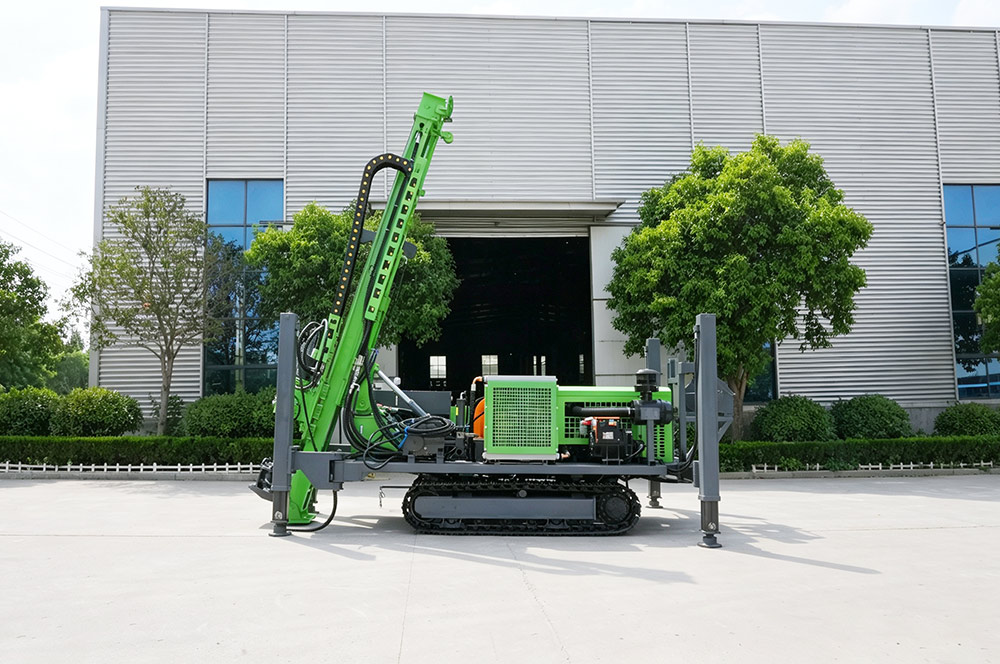

The JTYS-2000 is a fully hydraulic crawler-mounted diamond core drilling rig for deep mineral exploration and geological investigation. Powered by a 180 kW Weichai diesel engine, it offers drilling depths up to 2,200 m (BTW), 600 kN pullback force and 5,000 N·m maximum rotary torque.
| Model | JTYS-2000 |
| Drilling Depth | 2,200 m (BTW) / 2,000 m (NTW) / 1,800 m (HTW) |
| Diesel Engine | Weichai · 6-cylinder · 180 kW |
| Pullback Force | 600 kN |
| Max. Rotary Torque | 5,000 N·m |
| Rotation Speed | 0–1,400 rpm |
| Feed Stroke | 3.5 m |
| Machine Weight | 12,000 kg |
| Feed Thrust Force | 300 kN |
| Mast Slide Stroke | 1,200 mm |
| Wireline Winch Capacity | 2,000 m |
| Wireline Winch Speed | 110 m/min |
| Auxiliary Winch Force | 45 kN |
| Mud Pump Configuration | BW250 triplex |
| Crawler Travel Speed | 2–3 km/h |
| Drilling Angle | 45°–90° (adjustable) |
| Transport Dimensions | 6,100 × 2,200 × 2,500 mm |
| Cooling System | Water + air cooling |
The JTYS-2000 features a hydraulic rotary head, 3.5 m feed stroke and steel crawler undercarriage. Compatible wireline tooling and BW250 mud pump configurations can be discussed according to drilling conditions. Confirm supplied accessories and pump installation in the quotation.
Request factory-direct pricing, technical specifications and an FOB or CIF quotation for your destination.
Ask about the rig alone or packages with wireline rods, core barrels, diamond bits and mud pumps, subject to availability.
Contact us via WhatsApp or the inquiry form. Share your country, target depth and core size for a tailored proposal.
Up to 2,200 m BTW Drilling: supports deep wireline coring for mineral exploration and geological investigations.
600 kN Pullback Force: provides high lifting capacity for handling long drill strings during deep drilling operations.
3.5 m Feed Stroke and 5,000 N·m Torque: combine extended hydraulic feed travel with strong rotary capability for demanding coring projects.
Actual drilling depth depends on core size, geology and tooling. Maximum torque and rotation speed are separate ratings. Verify wireline length, mud pump supply, transport dimensions and included accessories before ordering.
