Drilling depth: 300-650m
Main motor power: 92kW
Total weight: 4.5T
Drilling depth: 300-650m
Main motor power: 92kW
Total weight: 4.5T
650 m Max BTW Depth | 240 kN Lifting Force | Yuchai 4B3.9‑G2 92 kW Engine | 45°‑90° Inclined Drilling

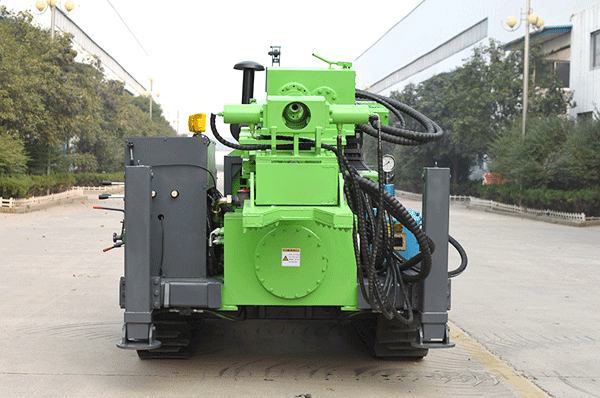

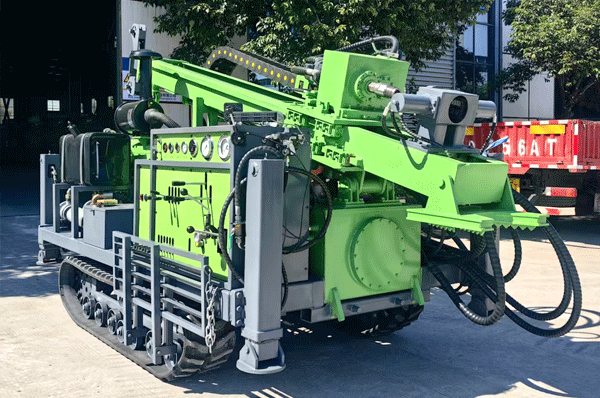

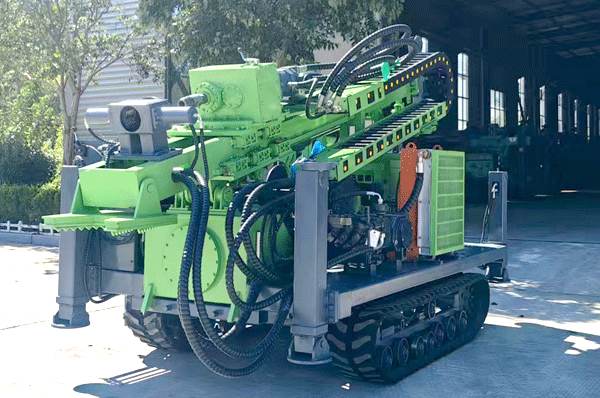

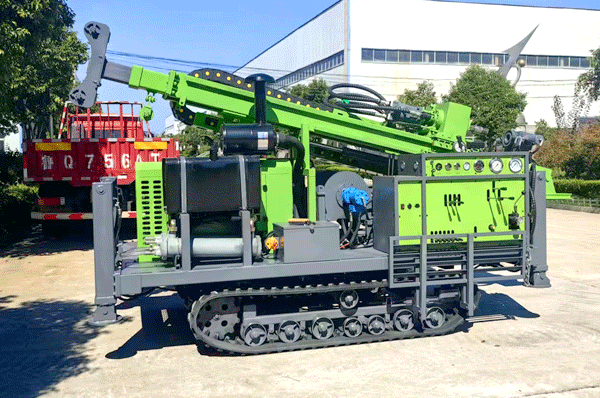

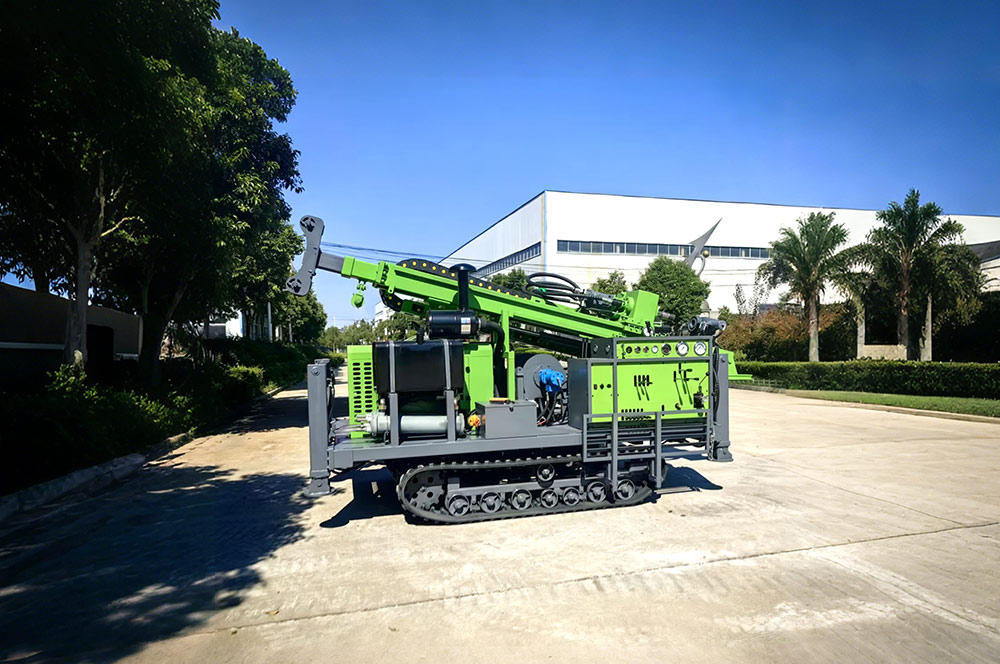

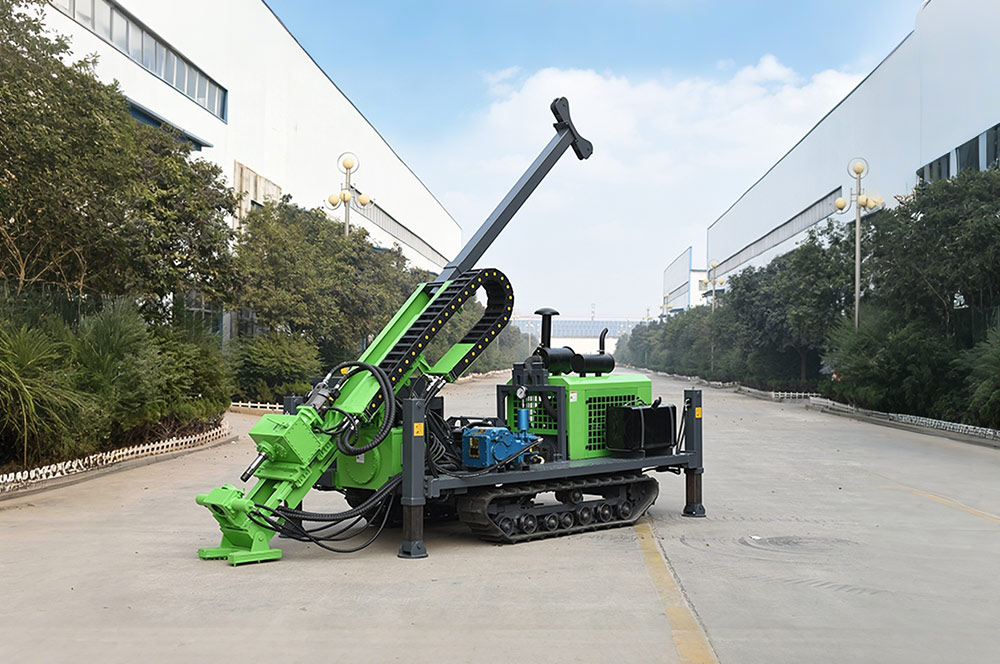

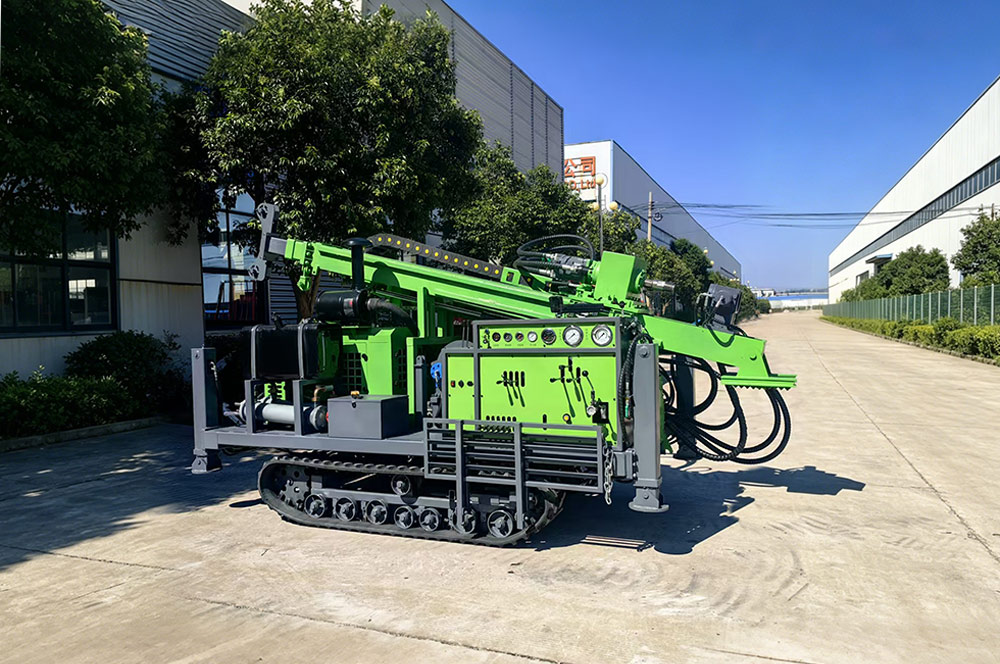

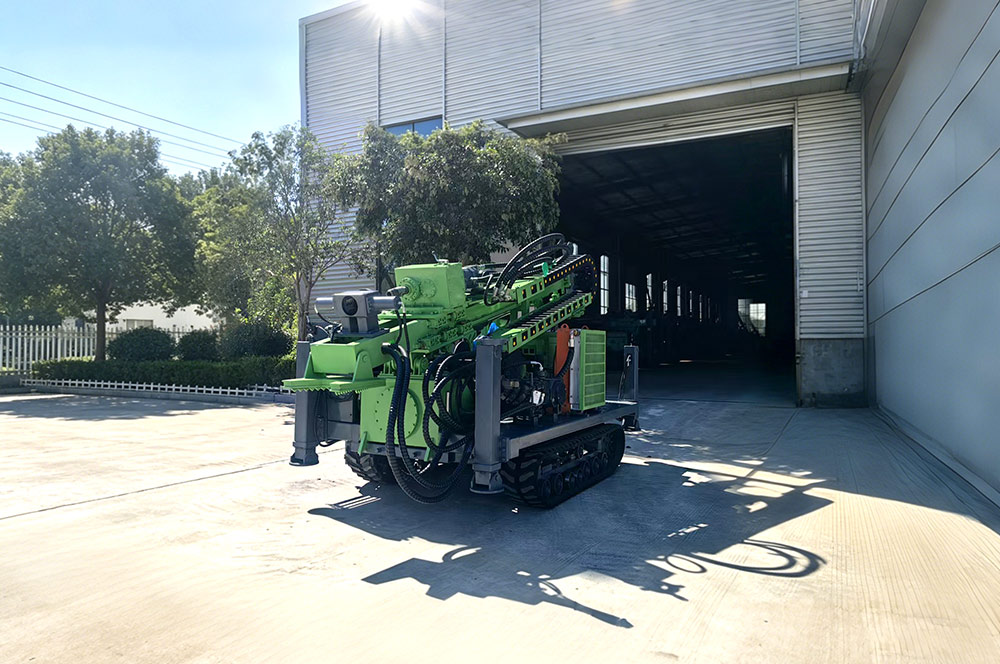

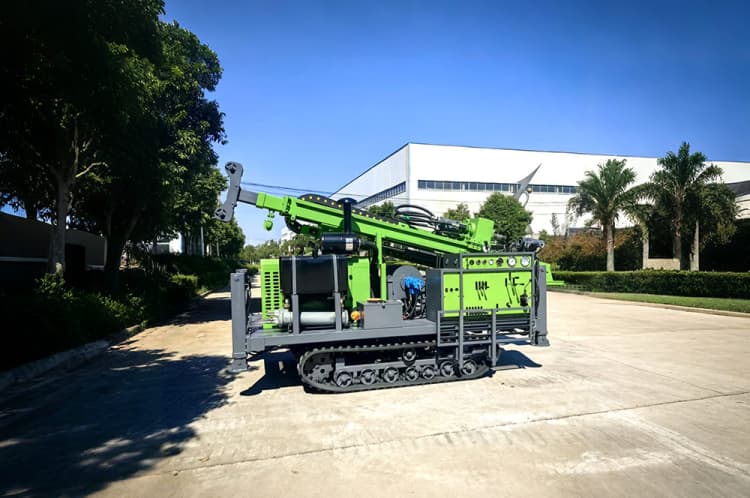

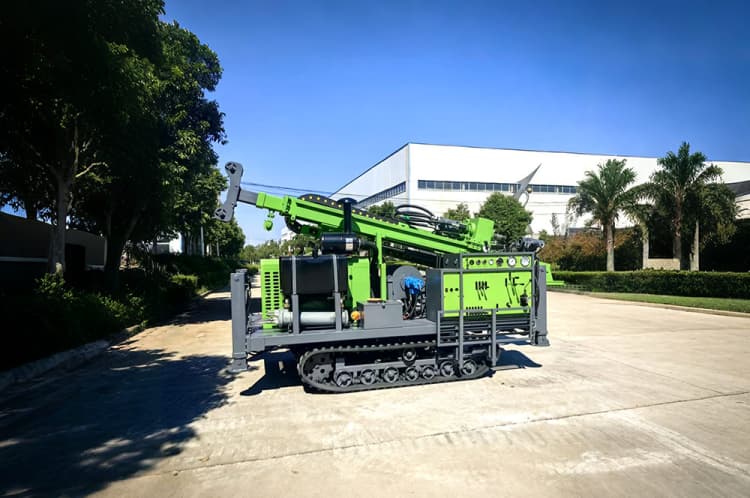

The JTYS‑600 crawler hydraulic wire-line core drill rig is a cost-effective unit for small-to-medium mineral exploration and geotechnical survey projects.
Powered by reliable Yuchai 4B3.9-G2 92kW engine and equipped with 32+16MPa high-pressure hydraulic system, it works steadily in mountainous, hard rock and remote sites. Compact and lightweight, it meets project requirements for Africa, Southeast Asia and other markets with complete export certifications.

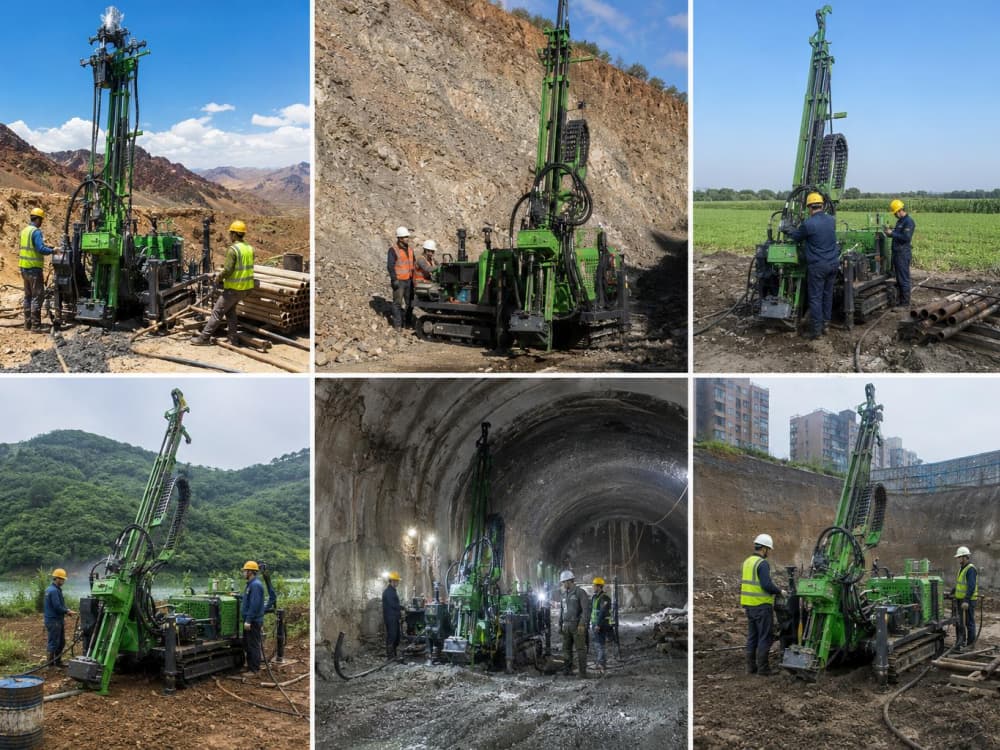

· Small-to-medium scale mineral exploration in mountainous areas
· Core sampling for infrastructure projects
· Subsurface survey for highway engineering
· Environmental monitoring drilling in rural regions
· Inclined boreholes for irregular terrain
· Regional natural resource prospecting
| Model | JTYS600 |
| Hydraulic System Rated Pressure | 32 + 16 MPa |
| Cooling Method | Air‑cooled + Water‑cooled |
| Engine Model | Yuchai 4B3.9‑G2, 4.26L Displacement |
| Engine Rated Power | 92 kW |
| Maximum Torque | 1,400 N.m |
| Maximum Rotating Speed | 1,400 rpm |
| Feed Stroke | 2.0 m |
| Lifting Capacity | 240 kN |
| Propulsion Force | 120 kN |
| Rope Capacity | 800 m |
| Rope Lifting Capacity | 15 kN |
| Rope Lifting Speed | 110 m/min |
| Derrick Total Height | 6.1 m |
| Drilling Angle | 45°‑90° |
| Fuel Consumption (Full Load) | 14‑18 L/h |
| Fuel Tank Capacity | 160 L |
| Continuous Working Endurance | 9‑11 Hours |
| Scheduled Maintenance Interval | 250 Working Hours |
| Noise Level | 80 dB(A) @ 1m |
| Transport Dimensions | 4,500 × 1,900 × 2,400 mm |
| Overall Weight | 4.5 t |
| Max Operating Altitude (No Power Loss) | ≤ 1,000 m |
| Max Drilling Depth | 600 m (NTW) / 650 m (BTW) |
Most regular 600-grade wire-line rigs only reach 580-600m BTW. This unit achieves 650m BTW / 600m NTW, exceeding the depth limit of same-class equipment.
It fully meets medium-depth core sampling needs for small-scale mining and infrastructure projects, ideal for projects with moderate budgets.
Equipped with mature Yuchai 4B3.9-G2 engine with stable 1400N·m torque. It adapts well to ordinary diesel fuel in remote rural mining zones.
Balanced power and fuel economy makes it a perfect choice for small prospecting projects with limited fuel supply.
Adopts 32+16MPa high-pressure hydraulic system, stronger than ordinary 600-class rigs. Matched with 240kN lifting force and 120kN propulsion force.
Great anti-sticking capability ensures high drilling success rate in hard rock and complex strata for highway and small mining projects.
Wire-line lifting speed reaches 110m/min, much faster than traditional lightweight rigs.
Fast core sampling shortens working cycles and improves daily output for multi-point scattered exploration tasks.
Total weight only 4.5t, lighter than conventional 600-grade rigs. The low-profile derrick easily passes narrow mountain and rural roads.
Supports quick transfer between multiple small construction sites with low mobility conditions.
Full-load fuel consumption at 14‑18L/h, leading level among same-power rigs. 160L fuel tank provides 9-11 hours continuous operation.
250-hour maintenance interval reduces inspection and parts costs, maximizing profits for budget-limited long-term projects.
· Factory-direct price & exclusive export terms for global mining partners
· Full global certifications: ISO9001, CE, SONCAP, PVoC, SIRIM, SNI, TISI
· Reply within 24 hours for all inquiries
Shandong Jutop Heavy Industry Technology Co., Ltd. is a national high-tech heavy machinery manufacturer founded in 2013. Equipped with a 50,000㎡ workshop and over 300 professionals, we specialize in R&D and export of construction machinery, drilling rigs and generators. Boasting 200+ patents and global certifications, our products are exported to over 120 countries, dedicated to supplying reliable cost-effective equipment for worldwide clients.
