Lift height:14000mm
Maximum lift capacity: 4000kg
TEngine rate power:91kW
Back to List
The JTTR-1440 Telescopic Handler combines a 4,000 kg maximum lifting capacity, 14.0 m maximum lift height and 9.58 m forward reach for high-reach material handling in construction and industrial projects. Powered by a 91 kW Yuchai YCD4J22T-125 turbocharged diesel engine, it features dual front hydraulic outriggers and ±9° frame leveling for designated lifting operations.
| Model | JTTR-1440 |
| Max. Lift Capacity | 4,000 kg |
| Max. Lift Height | 14,000 mm |
| Max. Forward Reach | 9,580 mm |
| Standard Engine | Yuchai YCD4J22T-125 · 91 kW |
| Stabilizer System | Dual Front Hydraulic Outriggers |
| Frame Leveling | ±9° |
| Operating Weight | Approx. 12,300 kg (With Forks) |
| Overall Dimensions (L × W × H) | 6,970 × 2,430 × 2,550 mm (Indicative) |
| Outrigger Width (Extended) | 3,800 mm |
| Wheelbase / Axle Track | 3,670 / 1,990 mm |
| Ground Clearance | 420 mm |
| Turning Radius | Up to 4,500 mm (Outer Wheel) |
| Drive & Steering | 4WD · Front / 4-Wheel / Crab |
| Transmission | Torque Converter · Electronic F4 / R4 |
| Braking System | Oil-Immersed Multi-Disc Service Brake |
| Travel Speed | Up to 30 km/h |
| Tires / Forks | 16.9-24 Tubeless / 1,200 mm Forks |
The JTTR-1440 features a 91 kW Yuchai YCD4J22T-125 turbocharged diesel engine, a telescopic boom with 14.0 m maximum lift height and a 9.58 m maximum forward reach. Its four-wheel-drive system, selectable steering modes and electronically controlled F4/R4 transmission support maneuverability across suitable construction and industrial working surfaces.
The machine is specified with dual front hydraulic outriggers, ±9° frame leveling, a multifunction joystick and oil-immersed multi-disc service brakes. Approved pallet forks and compatible material-handling attachments can be discussed according to project requirements. Alternative engine configurations and emissions compliance must be confirmed for the selected machine before ordering.
Get factory-direct pricing, detailed specifications and FOB or CIF shipping options for your destination country.
Tell us your country, load weight, required lifting height, forward reach and working conditions. We can also discuss the approved load chart, stabilizer configuration, engine options and suitable attachments.
Send your inquiry through the form on this page or contact us on WhatsApp for a tailored quotation.
14.0 m High Reach & 9.58 m Forward Extension: Offers elevated material placement and extended horizontal reach for multi-level construction, roofing and industrial projects, subject to the approved load chart.

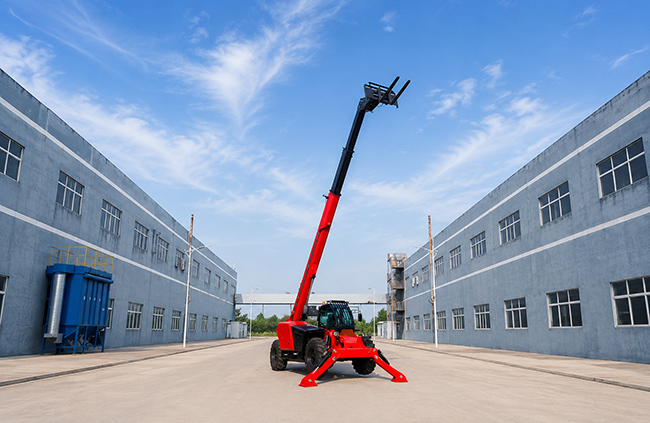

Dual Outriggers & ±9° Frame Leveling: Front hydraulic stabilizers and chassis leveling assist designated lifting operations when correctly deployed on suitable load-bearing ground.
91 kW Power & Multi-Mode Steering: Yuchai diesel engine, 4WD, front-wheel, four-wheel and crab steering, plus multifunction controls support material handling across varied work sites.
The 4,000 kg maximum rated lifting capacity is not necessarily available at 14.0 m height or 9.58 m forward reach. Actual lifting limits depend on boom position, attachment, ground conditions, stabilizer deployment and the approved manufacturer load chart. Frame leveling does not permit operation outside specified slope limits. Dimensions, weight, engine emissions compliance, control systems and optional attachments must be confirmed before ordering. Personnel platforms require a separately approved and certified configuration.
