Lift height:17550mm
Maximum lift capacity: 4000kg
TEngine rate power:91kW
Back to List

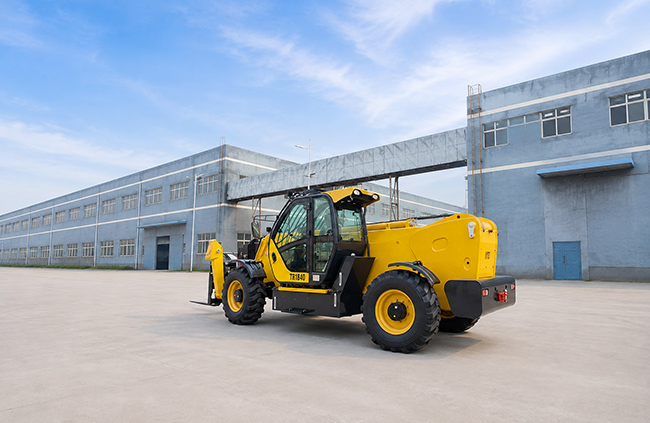

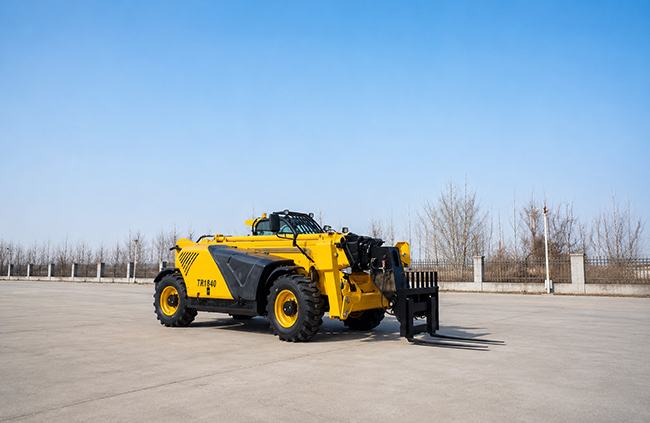

The JTTR-1840 Telescopic Handler combines a 4,000 kg maximum lifting capacity, 17.55 m maximum lift height and 13.08 m forward reach for high-reach material handling in construction and industrial projects. Powered by a 91 kW Yuchai YCD4J22T-125 turbocharged diesel engine, it features dual front hydraulic outriggers and ±9° frame leveling for designated lifting operations.
| Model | JTTR-1840 |
| Max. Lift Capacity | 4,000 kg |
| Max. Lift Height | 17,550 mm |
| Max. Forward Reach | 13,080 mm |
| Standard Engine | Yuchai YCD4J22T-125 · 91 kW |
| Stabilizer System | Dual Front Hydraulic Outriggers |
| Frame Leveling | ±9° |
| Operating Weight | Approx. 13,000 kg (With Forks) |
| Overall Dimensions (L × W × H) | 6,970 × 2,430 × 2,550 mm (Indicative) |
| Outrigger Width (Extended) | 3,800 mm |
| Wheelbase / Axle Track | 3,670 / 1,990 mm |
| Ground Clearance | 420 mm |
| Outside Turning Radius | ≤4,500 mm (Outer Wheel) |
| Drive & Steering | 4WD · Front / 4-Wheel / Crab |
| Transmission | Torque Converter · Electronic F4 / R4 |
| Braking System | Oil-Immersed Multi-Disc Service Brake |
| Maximum Travel Speed | 30 km/h |
| Tires / Forks | 16.9-24 Tubeless / 1,200 mm Forks |
The JTTR-1840 features a 91 kW Yuchai YCD4J22T-125 turbocharged diesel engine, a multi-stage telescopic boom with 17.55 m maximum lift height and a 13.08 m maximum forward reach. Its four-wheel-drive system, selectable front-wheel, four-wheel and crab steering modes, and electronically controlled F4/R4 transmission support maneuverability on suitable construction and industrial working surfaces.
The machine is specified with dual front hydraulic outriggers, ±9° frame leveling, a multifunction joystick with overload protection and oil-immersed multi-disc service brakes. Approved pallet forks and compatible material-handling attachments can be discussed according to project requirements. Alternative engine configurations and applicable emissions certification must be confirmed before ordering.
Get factory-direct pricing, detailed specifications and FOB or CIF shipping options for your destination country.
Tell us your country, load weight, required lifting height, forward reach and working conditions. We can also discuss the approved load chart, stabilizer requirements, engine options and suitable attachments.
Send your inquiry through the form on this page or contact us on WhatsApp for a tailored quotation.

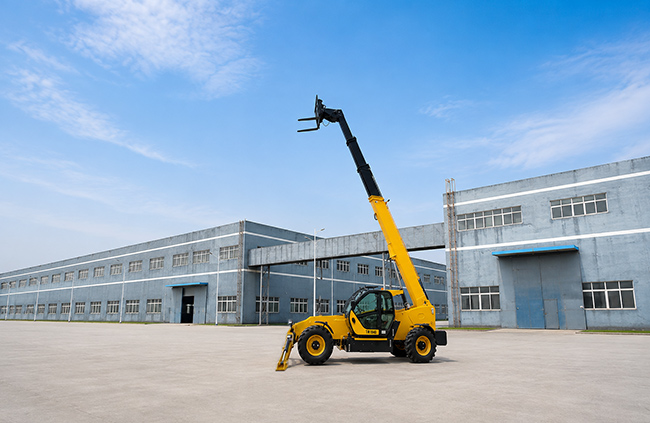

17.55 m High Reach & 13.08 m Forward Extension: Provides extended vertical and horizontal material positioning for multi-level construction, roofing and industrial projects, subject to the approved lifting load chart.
Dual Outriggers & ±9° Frame Leveling: Front hydraulic stabilizers and adjustable chassis leveling assist designated lifting operations when correctly deployed on suitable load-bearing ground.

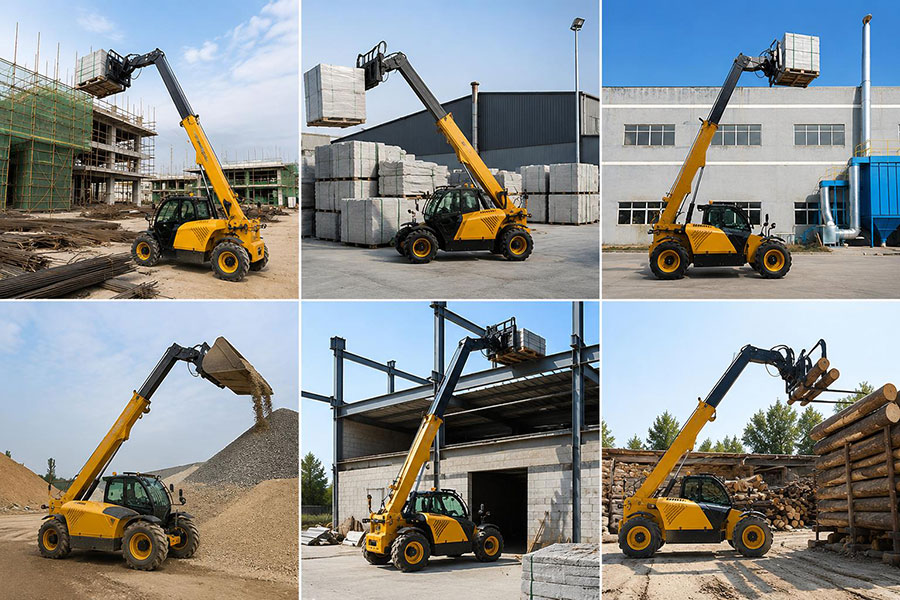

91 kW Power & Multi-Mode Steering: Yuchai turbocharged diesel engine, 4WD, three steering modes and multifunction controls support material handling across varied construction and industrial job sites.
The 4,000 kg maximum lifting capacity is not necessarily available at 17.55 m height or 13.08 m forward reach. Actual load limits depend on boom position, attachment, stabilizer deployment and the approved manufacturer load chart. Frame leveling does not authorize operation beyond permitted slope limits. Dimensions, weight, engine certification and equipment specifications require final confirmation. Personnel platforms may only be used with expressly approved and certified machine configurations.
