Lift height:7000mm
Maximum lift capacity: 4000kg
TEngine rate power:85kW
Back to List

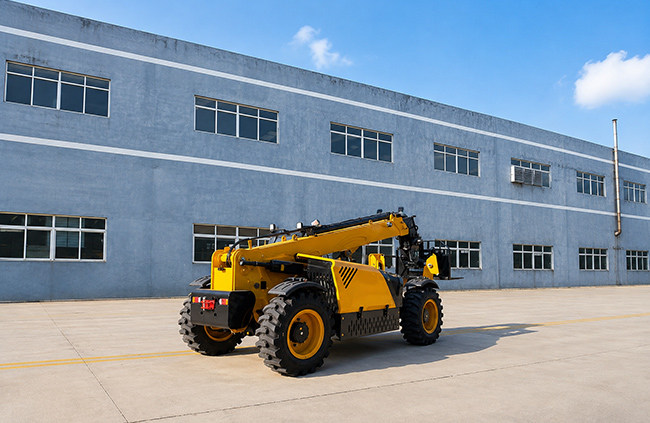

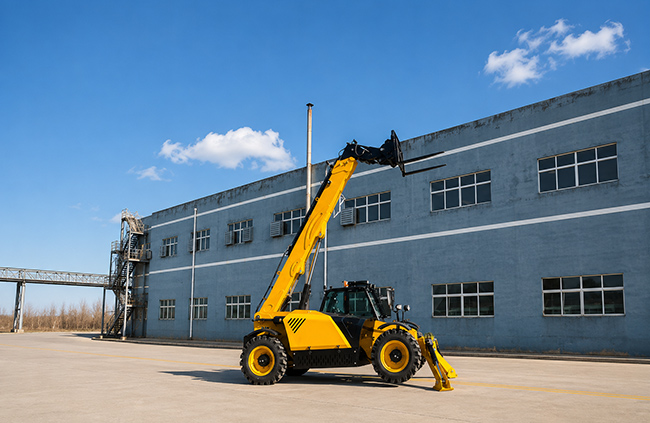

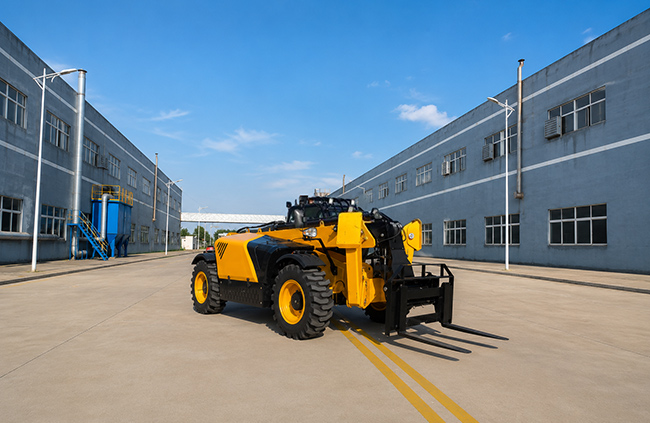

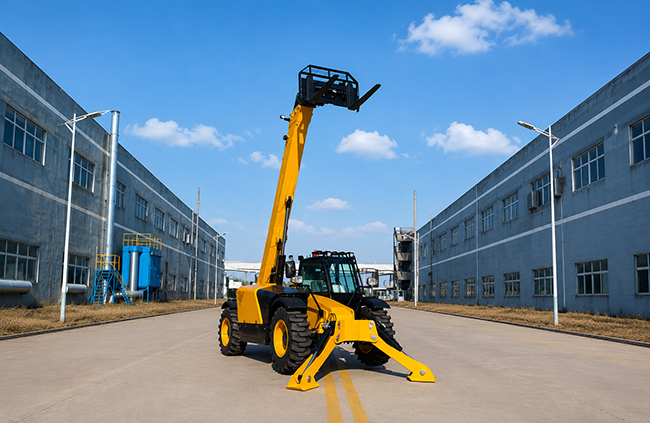

The JTTR-740 Telescopic Handler offers a 4,000 kg maximum lifting capacity, 7.0 m lifting height and 4.0 m forward reach for heavy-duty material handling in construction, agriculture and industrial yards. Powered by an 85 kW Yuchai YCD4J22T-115 turbocharged diesel engine, it is designed for lifting, loading and positioning heavier materials on demanding job sites.
| Model | JTTR-740 |
| Max. Lift Capacity | 4,000 kg |
| Max. Lift Height | 7,000 mm |
| Max. Forward Reach | 4,000 mm |
| Standard Engine | Yuchai YCD4J22T-115 · 85 kW |
| Operating Weight | Approx. 7,800 kg |
| Ground Clearance | 350 mm |
| Tire Specification | 16/70-24 Semi-Solid |
| Overall Height / Width | 2,300 / 2,150 mm (Indicative) |
| Reach at Max. Height | 450 mm |
| Wheelbase / Front Track | 2,850 / 1,750 mm |
| Outside Turning Radius | 4,250 mm (Over Tires) |
| Carriage Rollback Angle | 42.6° |
| Carriage Dump Angle | 37.5° |
| Length to Front Tires | 4,200 mm |
| Cab Internal Width | 800 mm |
| Pallet Fork Length | 1,220 mm |
| Optional Engines | Perkins / FPT / Cummins (Subject to Availability) |
The JTTR-740 features an 85 kW Yuchai YCD4J22T-115 turbocharged diesel engine and a telescopic lifting boom with a 7.0 m maximum lifting height. Its 4,000 kg maximum rated lifting capacity, 4.0 m forward reach and 350 mm ground clearance support heavy material handling on suitable rough-terrain construction and industrial sites.
The machine can be configured with pallet forks and compatible material-handling attachments, including buckets and suitable grabbing tools. 16/70-24 semi-solid tires are specified for this version. Alternative Perkins, FPT or Cummins engine configurations can be discussed according to market requirements. EPA Tier 4 Final or Euro Stage V compliance must be verified for the selected certified configuration.
Get factory-direct pricing, detailed specifications and FOB or CIF shipping options for your destination country.
Tell us your country, required lifting capacity, lift height, working conditions and preferred attachments. We can also discuss tire configurations, emission requirements and shipping arrangements.
Send your inquiry through the form on this page or contact us on WhatsApp for a tailored quotation.
4 Ton Lifting & 7.0 m Lift Height: Offers 500 kg more maximum rated lifting capacity than the JTTR-735, with a 7.0 m lift height for heavier construction materials and industrial loads.
85 kW Diesel Power & Rough-Terrain Tires: Yuchai turbocharged engine, 350 mm ground clearance and 16/70-24 semi-solid tires support material handling on suitable unpaved and debris-prone job sites.
4.0 m Forward Reach & Versatile Attachments: Telescopic boom and compatible attachments enable pallet lifting, construction material placement and industrial yard handling beyond the front of the machine.
Maximum rated lifting capacity does not apply at every boom position. Actual load limits depend on lifting height, forward reach, attachment, ground conditions and the approved manufacturer load chart. Machine dimensions, operating weight, tire construction, engine certification and optional configurations must be confirmed before ordering.
