Lift height:5900mm
Maximum lift capacity: 2500kg
TEngine rate power:58kW
Back to List

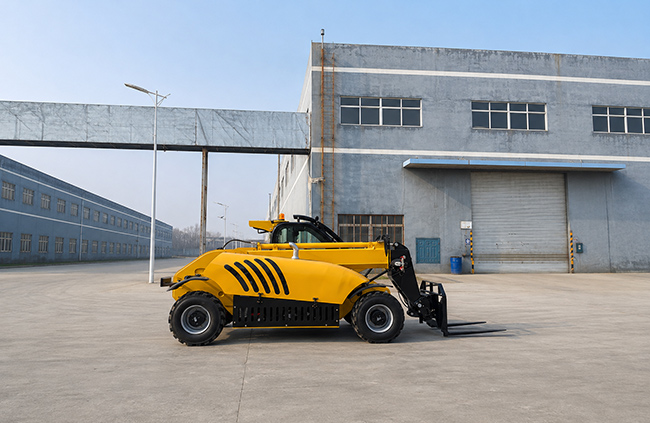

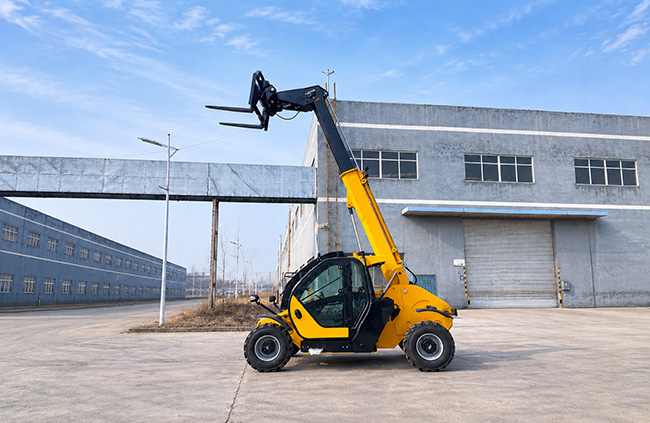

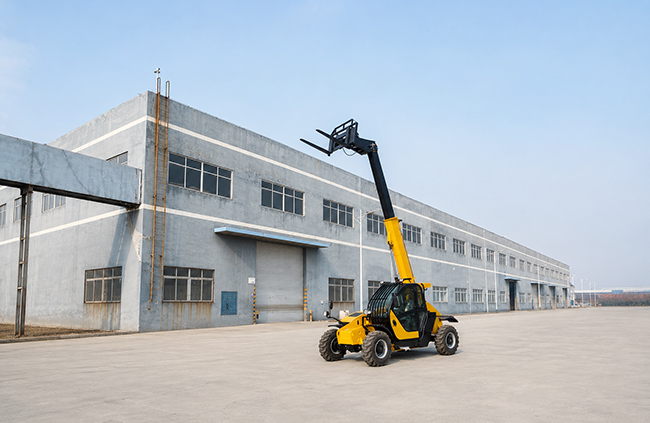

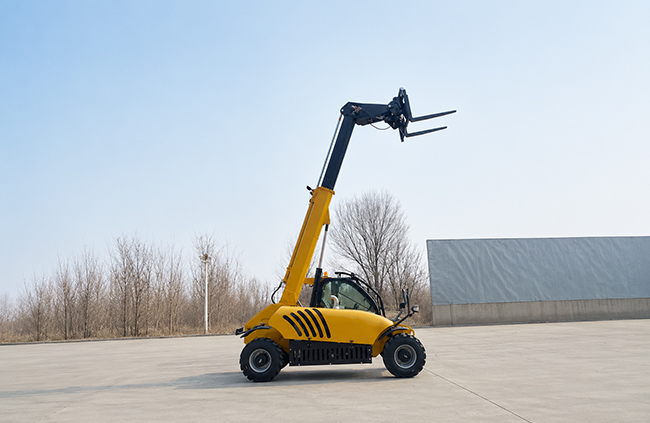

The JTTR-625 Telescopic Handler combines a 2,500 kg maximum lifting capacity, 5.9 m lifting height and 3.3 m forward reach for construction, agriculture and industrial material handling. Equipped with a 58 kW Yunnei diesel engine, 4WD and three steering modes, it offers flexible operation on rough terrain and confined job sites.
| Model | JTTR-625 |
| Max. Lift Capacity | 2,500 kg |
| Max. Lift Height | 5,900 mm |
| Max. Forward Reach | 3,300 mm |
| Capacity at Full Height | 2,000 kg |
| Capacity at Full Reach | 800 kg |
| Standard Engine | Yunnei YN27GBZ · 58 kW |
| Drive & Steering | 4WD · Front / 4-Wheel / Crab |
| Overall Dimensions (L × W × H) | 4,765 × 2,125 × 2,280 mm (Indicative) |
| Unladen Weight | Approx. 4,988 kg (Indicative) |
| Outside Turning Radius | 3,310 mm |
| Ground Clearance | 380 mm |
| Reach at Max. Height | 450 mm |
| Wheelbase / Track | 2,300 / 1,480 mm |
| Tire Size | 14-17.5 Tubeless |
| Pallet Fork Length | 1,220 mm |
| Fuel / Hydraulic Tank | 63 L / 115 L |
| Transmission | Torque Converter & Drive Axle (As Specified) |
The JTTR-625 uses a 58 kW Yunnei YN27GBZ diesel engine with a four-wheel-drive system and three selectable steering modes: front-wheel, four-wheel and crab steering. Its telescopic boom provides a maximum lifting height of 5.9 m, while the 3.3 m forward reach allows materials to be positioned beyond the front wheels.
Standard pallet forks support material handling on construction and agricultural sites. Optional buckets, material-handling attachments and alternative engine configurations can be discussed according to project needs. Kohler KDI2504TCR and Cummins QSF2.8 options may be available; engine emissions compliance depends on the specific certified configuration and destination market.
Get factory-direct pricing, detailed specifications and FOB or CIF shipping options for your destination country.
Tell us your country, required lifting capacity, lift height, working conditions and preferred attachments. We can also discuss engine options, emission requirements and container shipping arrangements.
Send your inquiry through the form on this page or contact us on WhatsApp for a tailored quotation.
2.5 Ton Lifting & 5.9 m Reach Height: Combines 2,500 kg maximum rated capacity with 2,000 kg lifting capacity at full height and 800 kg at maximum forward reach, subject to the approved load chart.
4WD & Three Steering Modes: Front-wheel, four-wheel and crab steering offer maneuverability in narrow construction areas, agricultural facilities and uneven working environments.

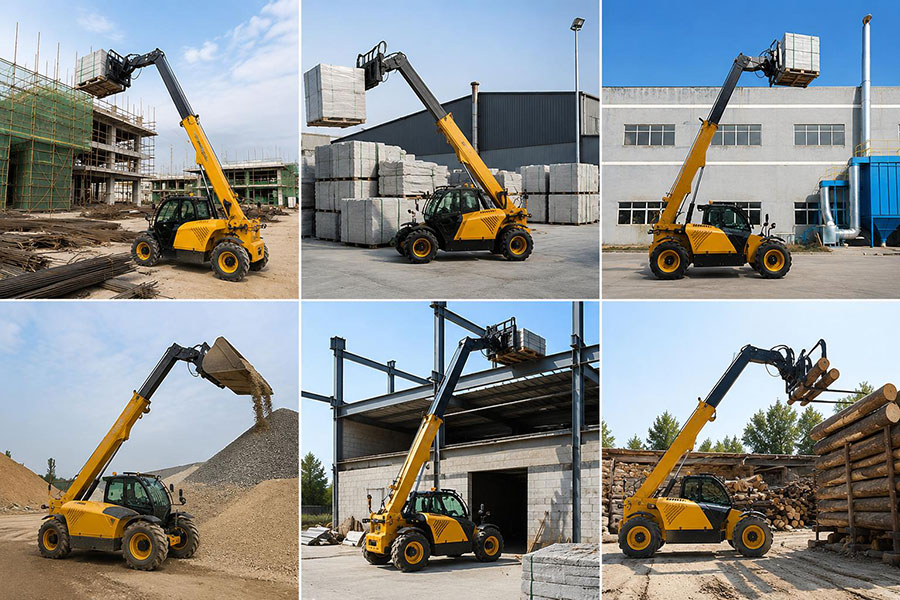

Flexible Material Handling: Telescopic boom and interchangeable attachments make the machine suitable for moving pallets, building materials, agricultural supplies and other compatible loads.
Technical data and lifting capacities are subject to the approved machine configuration, attachment, boom position and manufacturer load chart. Dimensions, weight, engine emissions compliance, shipping arrangements and optional equipment must be confirmed against the final specification sheet before ordering. Never exceed the rated load chart.
