Lift height:10000mm
Maximum lift capacity: 5000kg
TEngine rate power:91kW
Back to List

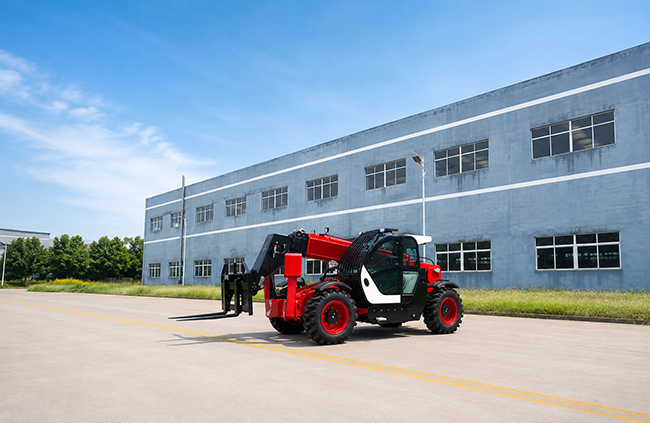

The JTTR-1050 Telescopic Handler combines a 5,000 kg maximum lifting capacity and 10.0 m maximum lift height for heavy material handling in construction, industrial yards and agricultural facilities. Equipped with a 91 kW Yuchai YCD4J22T-125 turbocharged diesel engine, 4WD and three steering modes, it is designed for elevated material placement and operation on suitable rough-terrain job sites.
| Model | JTTR-1050 |
| Max. Lift Capacity | 5,000 kg |
| Max. Lift Height | 10,000 mm |
| Standard Engine | Yuchai YCD4J22T-125 · 91 kW |
| Drive & Steering | 4WD · Front / 4-Wheel / Crab |
| Transmission | Torque Converter · F4 / R4 |
| Operating Weight | Approx. 10,300 kg (Indicative) |
| Tire Specification | 16.9-24 Tubeless |
| Overall Height / Width | 2,300 / 2,150 mm (Indicative) |
| Length to Front Tires | 4,600 mm |
| Wheelbase / Front Track | 2,850 / 1,750 mm |
| Ground Clearance | 350 mm |
| Outside Turning Radius | 4,250 mm (Over Tires) |
| Carriage Rollback Angle | 42.6° |
| Carriage Dump Angle | 37.5° |
| Pallet Fork Length | 1,220 mm |
| Cab Internal Width | 800 mm |
| Optional Engines | FPT / Cummins / Yuchai (Subject to Availability) |
The JTTR-1050 features a 91 kW Yuchai YCD4J22T-125 turbocharged diesel engine with a torque converter transmission and four forward and four reverse gears. Its 4WD system and selectable front-wheel, four-wheel and crab steering modes support maneuverability on construction sites, industrial yards and suitable uneven working surfaces.

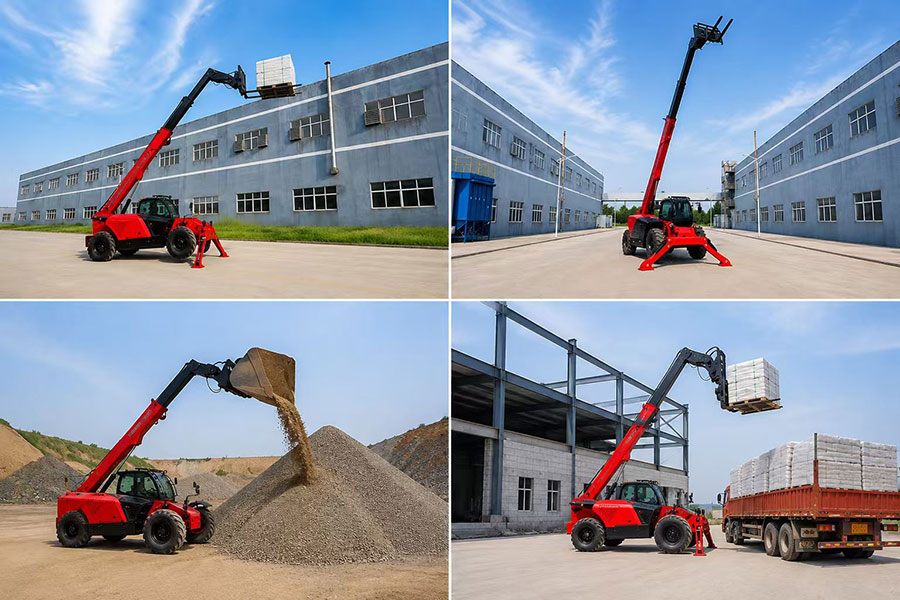

The 10.0 m telescopic boom supports elevated material handling using approved pallet forks and compatible attachments. Optional buckets, material grabs and alternative engine configurations can be discussed according to project requirements. EPA Tier 4 Final or Euro Stage V compliance must be verified for the selected engine and complete machine configuration before ordering.
Get factory-direct pricing, detailed specifications and FOB or CIF shipping options for your destination country.
Tell us your country, load weight, required lifting height, forward reach and preferred attachments. We can also discuss engine options, emissions requirements, load charts and shipping arrangements.
Send your inquiry through the form on this page or contact us on WhatsApp for a tailored quotation.
5 Ton Lifting & 10.0 m Lift Height: Combines a 5,000 kg maximum rated lifting capacity with a 10.0 m maximum lift height for multi-level construction and industrial material handling, subject to the approved load chart.
4WD & Three Steering Modes: Front-wheel, four-wheel and crab steering provide maneuverability in confined job sites, loading yards and suitable rough-terrain conditions.
91 kW Diesel Power & Versatile Attachments: Yuchai turbocharged engine, F4/R4 transmission and compatible material-handling attachments support varied construction and industrial operations.
The 5,000 kg maximum rated load is not necessarily available at 10.0 m lift height or at extended boom positions. Actual load limits depend on height, forward reach, attachment and the manufacturer's approved load chart. Operating weight, dimensions, transmission, tire specification, emissions compliance and container loading arrangements must be confirmed against the final machine specification. Personnel platforms must only be used with expressly approved and certified machine configurations.
