Lift height:10000mm
Maximum lift capacity: 3500kg
TEngine rate power:91kW
Back to List

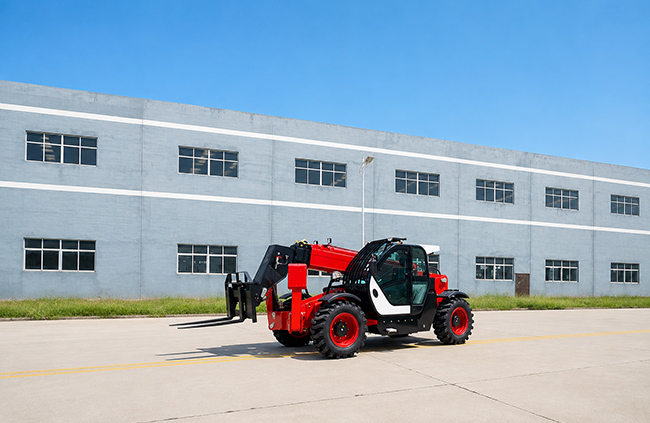

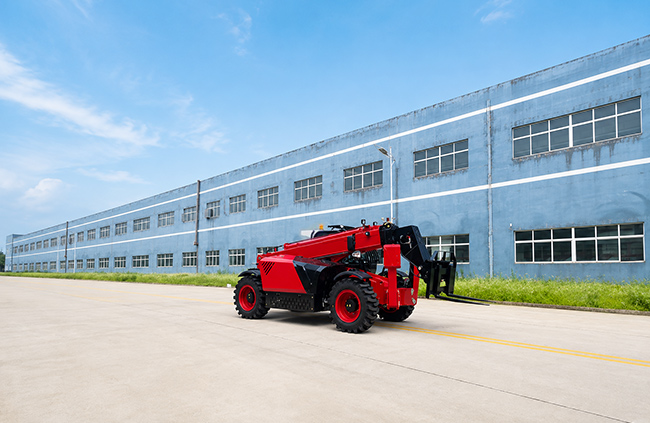

The JTTR-1035 Telescopic Handler combines a 3,500 kg maximum lifting capacity, 10.0 m maximum lift height and dual front hydraulic stabilizers for elevated material handling in construction and industrial applications. Powered by a 91 kW Yuchai YCD4J22T-125 turbocharged diesel engine, it is designed for lifting and positioning palletized building materials at multiple working heights.
| Model | JTTR-1035 |
| Max. Lift Capacity | 3,500 kg |
| Max. Lift Height | 10,000 mm |
| Stabilizer System | Dual Front Hydraulic Outriggers |
| Standard Engine | Yuchai YCD4J22T-125 · 91 kW |
| Operating Weight | Approx. 10,200 kg (Indicative) |
| Ground Clearance | 350 mm |
| Tire Specification | 16/70-24 Semi-Solid |
| Overall Height / Width | 2,300 / 2,150 mm (Indicative) |
| Length to Front Tires | 4,600 mm |
| Wheelbase / Front Track | 2,850 / 1,750 mm |
| Outside Turning Radius | 4,250 mm (Over Tires) |
| Carriage Rollback Angle | 42.6° |
| Carriage Dump Angle | 37.5° |
| Cab Internal Width | 800 mm |
| Pallet Fork Length | 1,220 mm |
| Stabilizer Configuration | Two Front Hydraulic Outriggers |
| Optional Engines | FPT / Cummins / Yuchai (Subject to Availability) |
The JTTR-1035 features a 91 kW Yuchai YCD4J22T-125 turbocharged diesel engine and a telescopic lifting boom with a 10.0 m maximum lift height. Its dual front hydraulic stabilizers provide additional support when deployed according to the manufacturer's instructions, while the 16/70-24 semi-solid tires are specified for material handling on suitable construction and industrial working surfaces.

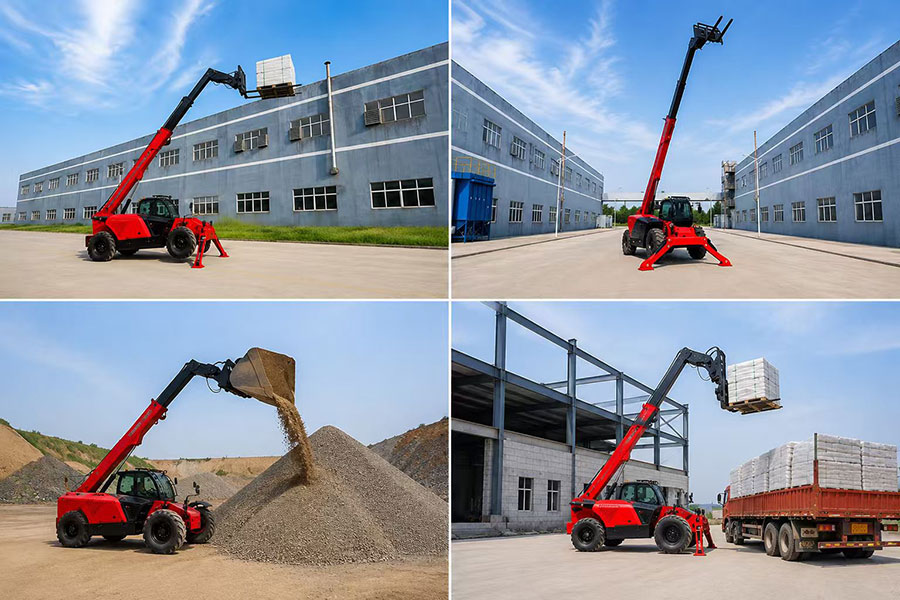

The machine can be configured with pallet forks and compatible material-handling attachments, including buckets, pipe-handling tools and suitable material grabs. Alternative engine configurations and application-specific equipment can be discussed according to project requirements. EPA Tier 4 Final or Euro Stage V compliance must be verified for the selected certified engine and machine configuration.
Get factory-direct pricing, detailed specifications and FOB or CIF shipping options for your destination country.
Tell us your country, required lifting capacity, working height, load dimensions and preferred attachments. We can also discuss stabilizer requirements, engine options, emissions compliance and shipping arrangements.
Send your inquiry through the form on this page or contact us on WhatsApp for a tailored quotation.

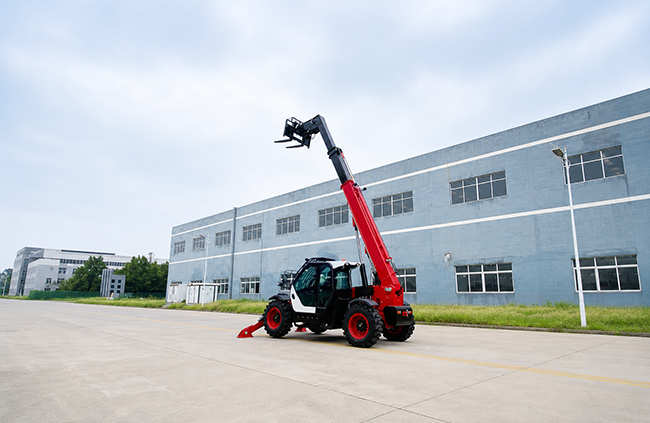

10.0 m High-Reach Lifting: Combines a 3,500 kg maximum rated lifting capacity with a 10.0 m maximum lift height for elevated material placement, subject to the approved load chart.
Dual Front Hydraulic Stabilizers: Two front outriggers provide additional support for designated lifting operations when properly deployed on suitable load-bearing ground.
91 kW Diesel Engine & Flexible Attachments: Yuchai turbocharged power and compatible forks, buckets and material-handling tools support varied construction and industrial lifting tasks.
The 3,500 kg rated capacity is not necessarily available at 10.0 m lifting height or at extended boom positions. Actual load limits depend on reach, lift height, attachment and the approved load chart, including whether stabilizers are deployed. Stabilizers must only be used on suitable ground according to manufacturer instructions. Dimensions, weight, tire construction, engine compliance and optional configurations require final confirmation. Work platforms must only be used if expressly approved and certified for the specific machine.
