JT‑2000KW Yuchai Industrial Generator | 2500kVA Prime Power

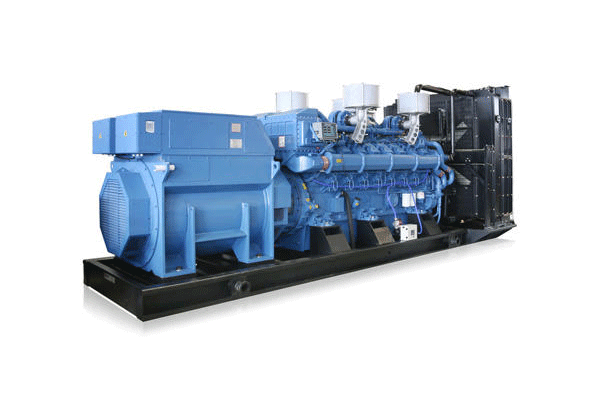

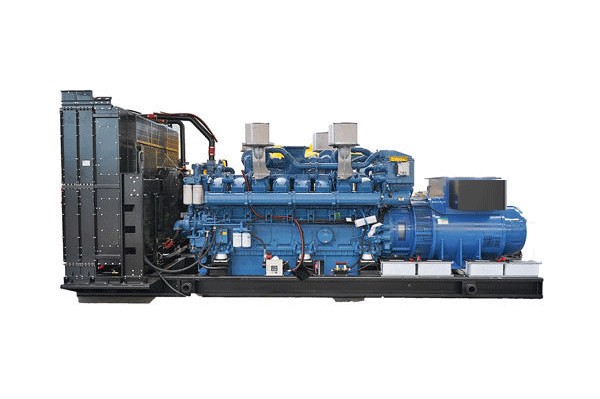

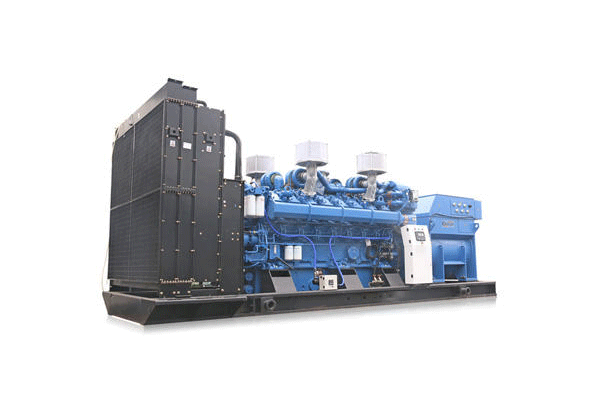

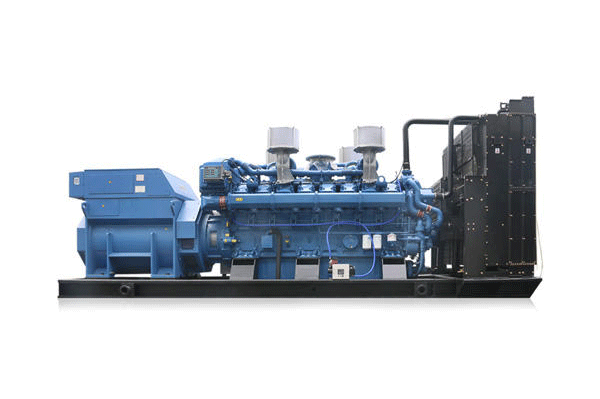

The JT‑2000KW industrial power generator is built around the Yuchai YC16VC3300‑D31 16‑cylinder V‑type turbocharged diesel engine, rated for continuous prime power supply in large‑scale manufacturing complexes, oil‑gas fields, mining operations, port terminals and data centers across Europe, Africa and Southeast Asia. 105.56L displacement, 13200 N·m peak torque and 500‑hour maintenance intervals are sourced from Yuchai VC series datasheet. The unit ships with CE, SONCAP, PVoC, NRCS, SIRIM, SNI and TISI certifications, supporting ocean freight to most global destinations within 45–50 production days.

2000kW in one unit eliminates the complexity of paralleling multiple smaller generators. A single JT‑2000KW running at 75% load still leaves 500kW headroom for crusher motor startup surges, conveyor belt inrush currents and HVAC cold‑start spikes—no derating required. One MCC connection, one service contract, one set of commissioning documentation.

The YC16VC3300‑D31 displaces 105.56L and delivers 13200 N·m peak torque at 1500 RPM—displacement and cylinder count sized for sustained full‑load operation in oil‑gas fields and mining pits where each hour of downtime carries direct production loss. The V‑16 configuration provides primary balance without external counterweights, reducing vibration stress on the alternator bearing and concrete foundation. Data from Yuchai VC series datasheet.

At 75% load, the 2600L tank covers approximately 18 hours of continuous operation. For off‑grid mining sites and port terminals where fuel is contracted, transported and stored under variable conditions, this runtime capacity reduces the number of scheduled refueling windows and provides flexibility in procurement timing.

At 3600A rated current, voltage distortion from nonlinear loads is amplified. The Stamford/Marathon brushless alternator with H‑Class insulation maintains THD below 5% under the inductive and VFD‑driven loads typical of large motor starters, mining equipment and UPS systems in substations and control rooms.

Up to 8 units in parallel provides a capacity upgrade path that does not require decommissioning the original unit. As a mine deepens, a port expands or a data hall is added, the parallel system grows incrementally. Each unit independently complies with IEC 8528‑5, simplifying substation compliance documentation for multi‑unit installations.

Industrial‑grade LCD panel displays real‑time engine and alternator parameters, stores alarm history and supports remote communication via standard BMS and SCADA interfaces. For unmanned mining sites and large industrial complexes, this enables fault diagnosis and operational monitoring from a central control room without on‑site personnel.
