PRP: 640 kW / 800 kVA
Standby: 704 kW / 880 kVA
Engine: YC6C1020-D31
PRP: 640 kW / 800 kVA
Standby: 704 kW / 880 kVA
Engine: YC6C1020-D31
640 kW Prime / 704 kW Standby | Genuine Yuchai YC6C1020‑D31 6‑Cylinder In‑Line Engine | 400/230V 50Hz Global Export Model

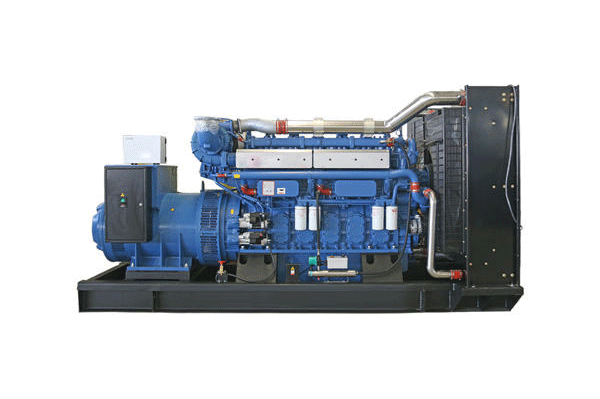

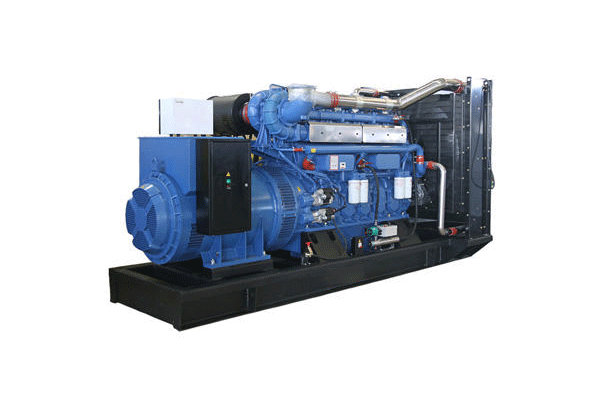

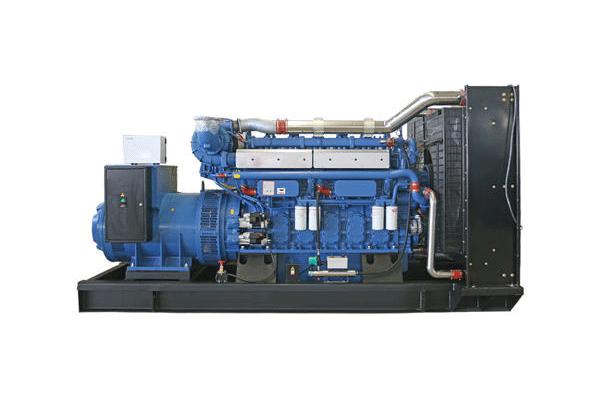

The JT‑640KW heavy-duty industrial generator is powered by authentic Yuchai YC6C1020-D31 inline 6-cylinder turbocharged diesel engine. It is built for 24/7 continuous operation in manufacturing plants, large construction sites, mining auxiliary facilities and data center backup systems. Featuring steady heavy-load performance, low running cost and long service life, all technical parameters comply with Yuchai official datasheet. Equipped with complete global certifications and a standard 500-hour maintenance cycle, it ensures reliable long-term operation for worldwide industrial projects.
· Medium‑Large Manufacturing Plant Continuous Power
· Mining Auxiliary Station Off‑Grid Power
· Large Construction Site Heavy Equipment Supply
· Commercial Complex & Hotel Emergency Backup
· Data Center & Banking Facility Backup
· Railway & Infrastructure Project Power
· Large Residential Community Backup Power
| Model | JT‑640KW |
| Prime Power | 640 kW / 800 kVA |
| Standby Power | 704 kW / 880 kVA |
| Voltage | 400/230 V |
| Rated Current | 1152 A |
| Frequency | 50 Hz |
| Engine Model | Genuine Yuchai YC6C1020‑D31, 6‑Cylinder In‑Line Turbocharged |
| Displacement | 39.584 L |
| Bore × Stroke | 170 mm × 230 mm |
| Compression Ratio | 14.5:1 |
| Cycle Type | 4‑Cycle Diesel |
| Engine Rated Speed | 1500 RPM |
| Peak Torque @1500RPM | 4600 N·m |
| Cooling System | Water‑Cooled |
| Engine Oil Capacity | 92 L |
| Start Motor Voltage | 24V DC |
| Alternator Brand & Type | Stamford/Marathon, Brushless, Self‑exciting, H‑Class Insulation, 3‑Phase |
| Phase & Connection | 3‑Phase 4‑Wire |
| Power Factor | 0.8 (lagging) |
| Insulation Class | Class H |
| Protection Grade | IP21 |
| Total Harmonic Distortion (THD) | <5% |
| Fuel Consumption (100% Full Load) | 216‑224 g/kW·h |
| Fuel Tank Capacity | 1200 L / ≈12‑hr @ 75% Load |
| Scheduled Maintenance Interval | 500 Working Hours |
| Noise Level | 78‑80 dB(A) @ 1 Meter |
| Max Operating Altitude | ≤ 1000 m |
| Max Parallel Units | Up to 8 Units (IEC 8528‑5) |
| ATS Compatibility | Yes |
| Transport Dimensions | 4700 × 2100 × 2500 mm |
| Overall Weight | 8.6 t |
| Certifications | ISO9001 · CE · SONCAP · PVoC · NRCS · SIRIM · SNI · TISI |
| Lead Time | 45‑50 Working Days + 40‑50 Days Ocean Freight |
| Payment Term | 30% Advance, 70% Before Shipment |
This mid-to-high power unit perfectly matches the regular load of medium-large factories and large construction sites. Its 704kW standby power provides 10% overload margin for sudden equipment startup. It fully meets daily power demands while helping clients save extra costs on over-sized power equipment.
With 4600 N·m peak torque, it delivers excellent resistance to voltage drop during startup of tower cranes, large pumps and fans. It effectively suppresses transient frequency fluctuation and prevents protection relay tripping, ensuring stable operation of core construction and mining equipment.
The built-in 1200L fuel tank enables 12 hours of continuous operation at 75% load. Ideal for remote mining stations and long-cycle infrastructure projects with unstable fuel supply. It reduces refueling frequency and labor workload, easing operation pressure in harsh off-grid areas.
Equipped with Class H insulated brushless alternator, it keeps total harmonic distortion below 5% and outputs pure sine wave power. It protects PLC systems, industrial robots, banking servers and data center UPS from harmonic interference, avoiding equipment malfunction and data loss.
Adopting Yuchai’s mature inline-six heavy-duty engine platform, it features optimized heat dissipation and reinforced structure, suitable for 24/7 operation in high-temperature and dusty mining & construction sites. The 500-hour standard maintenance cycle cuts annual service frequency and overall lifecycle costs.
· Factory-direct pricing, customized configurations and comprehensive global technical support for construction contractors, mining developers and plant operators.
· Detailed datasheets, bulk order quotations and complete certification documents are available upon request.
· We reply within 1‑2 working days. Contact our professional team for tailored power solutions and global shipping services.
Shandong Jutop Heavy Industry Technology Co., Ltd. is a national high-tech heavy machinery manufacturer founded in 2013. Equipped with a 50,000㎡ workshop and over 300 professionals, we specialize in R&D and export of construction machinery, drilling rigs and generators. Boasting 200+ patents and global certifications, our products are exported to over 120 countries, dedicated to supplying reliable cost-effective equipment for worldwide clients.
