PRP: 300 kW / 375 kVA
Standby: 330 kW / 412.5 kVA
Engine: YC6MJ480L-D20
Back to List

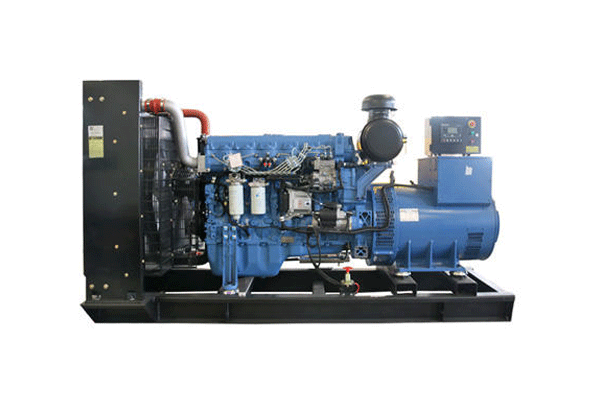

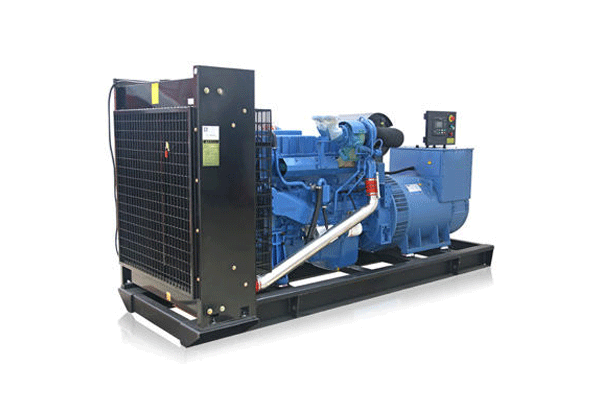

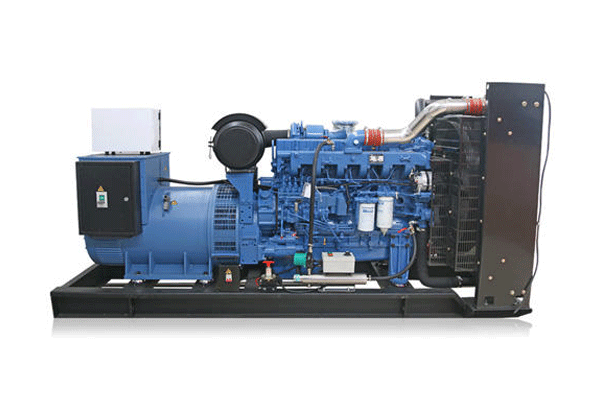

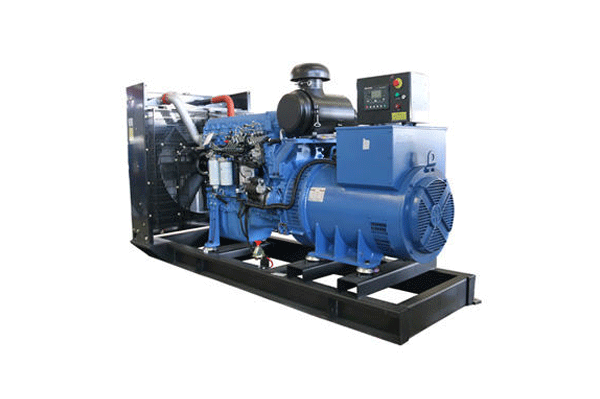

The JT-300KW Yuchai Diesel Generator delivers 300 kW / 375 kVA prime power and 330 kW / 412.5 kVA standby power. Powered by the Yuchai YC6MJ480L-D20 6-cylinder turbocharged diesel engine, it is designed for industrial plants, construction projects, mining operations and commercial backup power systems.
| Generator Model | JT-300KW Yuchai |
| Prime Power | 300 kW / 375 kVA |
| Standby Power | 330 kW / 412.5 kVA |
| Voltage / Frequency | 400/230 V · 50 Hz |
| Engine Model | Yuchai YC6MJ480L-D20 |
| Rated Current | Approx. 541 A at 400 V |
| Dimensions (L × W × H) | 5,200 × 2,100 × 2,500 mm (Indicative) |
| Weight | Approx. 5,800 kg (Indicative) |
| Power Factor | 0.8 Lagging |
| Engine Configuration | Inline-6 · Turbocharged & Intercooled |
| Engine Displacement | Approx. 11.73 L |
| Engine Speed | 1,500 rpm |
| Engine Type | 4-Stroke Diesel |
| Bore × Stroke | 131 × 145 mm |
| Compression Ratio | 16.8:1 |
| Fuel Injection | Direct Injection |
| Cooling System | Water-Cooled |
| Starting System | Electric Start · Voltage to Be Confirmed |
The JT-300KW combines an approximately 11.73 L Yuchai YC6MJ480L-D20 inline-6 turbocharged and intercooled diesel engine with a three-phase alternator for industrial power generation. Its direct-injection fuel system and water-cooled design support demanding prime and standby power applications.
The generator can be configured with a brushless alternator, automatic voltage regulation and generator monitoring and protection controller. ATS integration, remote monitoring, soundproof enclosure and extended fuel tank options can be discussed according to project requirements. Final equipment brands and specifications are subject to confirmation.
Get factory-direct pricing, technical specifications and FOB or CIF shipping options for your destination country.
Tell us your country, required power, voltage, application and operating hours. We can also discuss ATS, fuel tank capacity, soundproof enclosures and project-specific control requirements.
Send your inquiry through the form on this page or contact us on WhatsApp for a tailored quotation.
Yuchai 11.73 L Industrial Engine: YC6MJ480L-D20 inline-6 turbocharged and intercooled diesel engine designed for industrial power generation.
300 kW Power Capacity: 375 kVA prime output for manufacturing plants, construction projects, mining facilities and commercial standby systems.
Flexible Project Configuration: prime and standby applications with optional ATS, remote monitoring, acoustic enclosures and extended fuel storage solutions.
Final generator ratings, voltage, current, dimensions, weight, fuel tank capacity, runtime and operating performance depend on the supplied configuration and site conditions. Confirm the complete genset datasheet and applicable compliance documents before ordering.
