PRP: 800 kW / 1000 kVA
Standby: 880 kW / 1100 kVA
Engine: YC6C1320-D31
Back to List

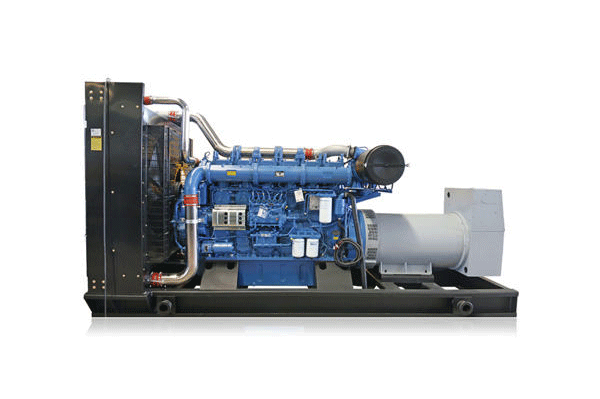

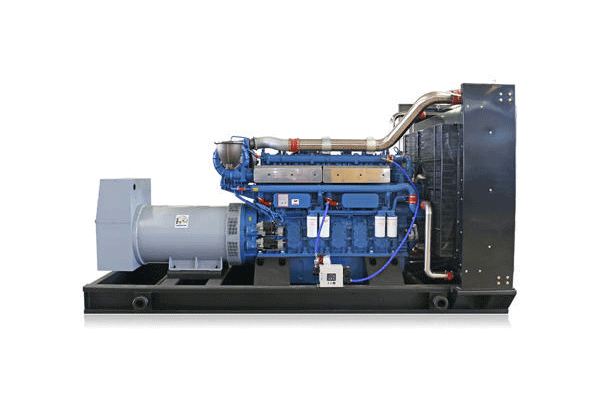

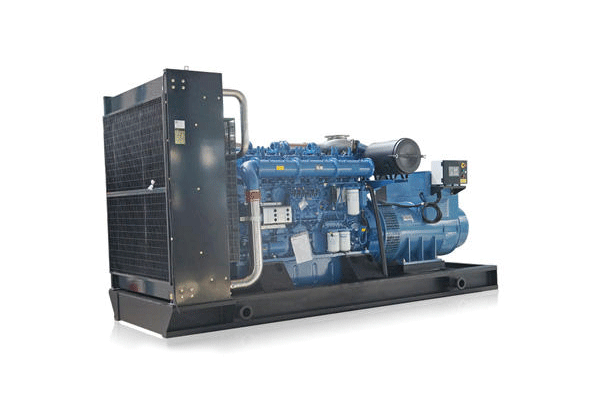

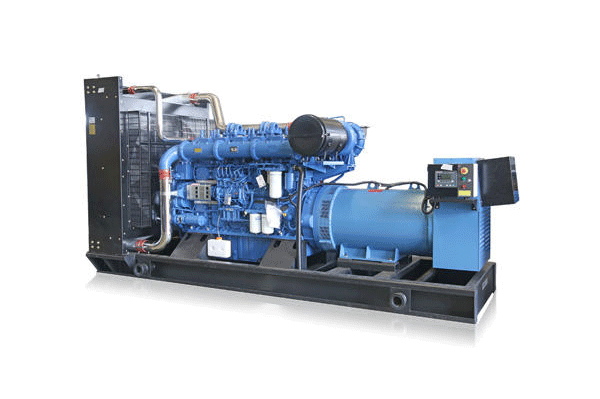

The JT-800KW Yuchai Diesel Generator delivers 800 kW / 1000 kVA prime power and 880 kW / 1100 kVA standby power. Powered by the Yuchai YC6C1320-D31 inline-6 turbocharged diesel engine, it is designed for mining operations, large construction projects, manufacturing plants and industrial backup power systems.
| Generator Model | JT-800KW Yuchai |
| Prime Power | 800 kW / 1000 kVA |
| Standby Power | 880 kW / 1100 kVA |
| Voltage / Frequency | 400/230 V · 50 Hz |
| Engine Model | Yuchai YC6C1320-D31 |
| Rated Current | Approx. 1,443 A at 400 V |
| Dimensions (L × W × H) | 4,800 × 2,200 × 2,600 mm (Indicative) |
| Weight | Approx. 9,500 kg (Indicative) |
| Power Factor | 0.8 Lagging |
| Engine Configuration | Inline-6 · Turbocharged & Intercooled |
| Engine Displacement | 39.584 L |
| Engine Speed | 1,500 rpm |
| Engine Type | 4-Stroke Diesel |
| Bore × Stroke | 200 × 210 mm |
| Compression Ratio | 14.5:1 |
| Fuel System | Electronically Controlled Unit Pump |
| Cooling System | Water-Cooled |
| Starting System | Electric Start · Voltage to Be Confirmed |
The JT-800KW combines a 39.584 L Yuchai YC6C1320-D31 inline-6 turbocharged and intercooled diesel engine with a three-phase alternator for high-capacity industrial power generation. Its electronically controlled unit pump fuel system, water-cooled construction and heavy-duty engine platform support demanding prime and standby power applications.
The generator can be configured with a brushless alternator, automatic voltage regulation and generator monitoring and protection controller. ATS integration, remote monitoring, soundproof enclosure, extended fuel storage and generator paralleling options can be discussed according to project requirements. Final equipment brands and specifications are subject to confirmation.
Get factory-direct pricing, technical specifications and FOB or CIF shipping options for your destination country.
Tell us your country, required power, voltage, application and operating hours. We can also discuss ATS, generator paralleling, acoustic enclosures and project-specific control requirements.
Send your inquiry through the form on this page or contact us on WhatsApp for a tailored quotation.
Yuchai 39.58 L Industrial Engine: YC6C1320-D31 inline-6 turbocharged and intercooled engine with electronically controlled unit pump technology for heavy-duty diesel power generation.
800 kW Power Capacity: 1000 kVA prime output from a single generator set for mining facilities, manufacturing plants, construction sites and large infrastructure projects.
Flexible Project Configuration: prime and standby applications with optional ATS, remote monitoring, acoustic enclosures, extended fuel storage and generator paralleling solutions.
Final generator ratings, voltage, current, dimensions, weight, fuel tank capacity, runtime and operating performance depend on the supplied configuration and site conditions. Confirm the complete genset datasheet and applicable compliance documents before ordering.
