JT-160KW Cummins Generator

  • 12-Month Warranty
  • Factory Direct Price
  • Fast Global Shipping
  • 24/7 WhatsApp Support

PRP: 160 kW / 200 kVA

Standby: 176 kW / 220 kVA

Engine: NTA855-GA

Free consultation:
Product Overview

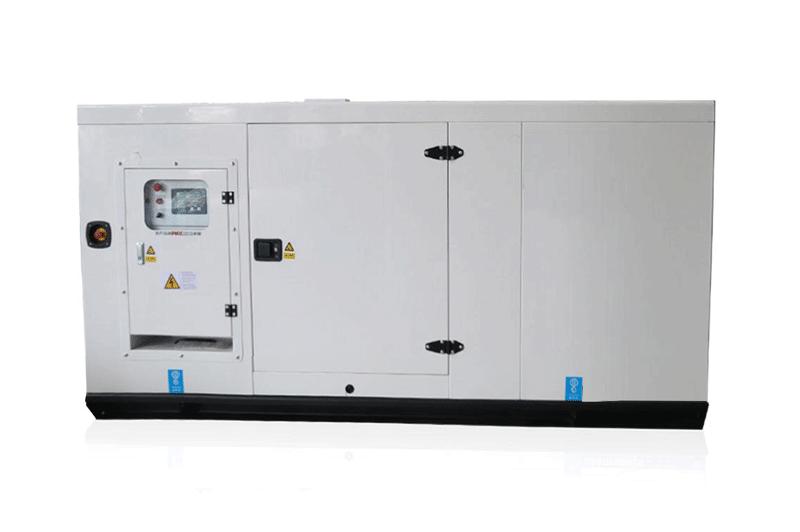

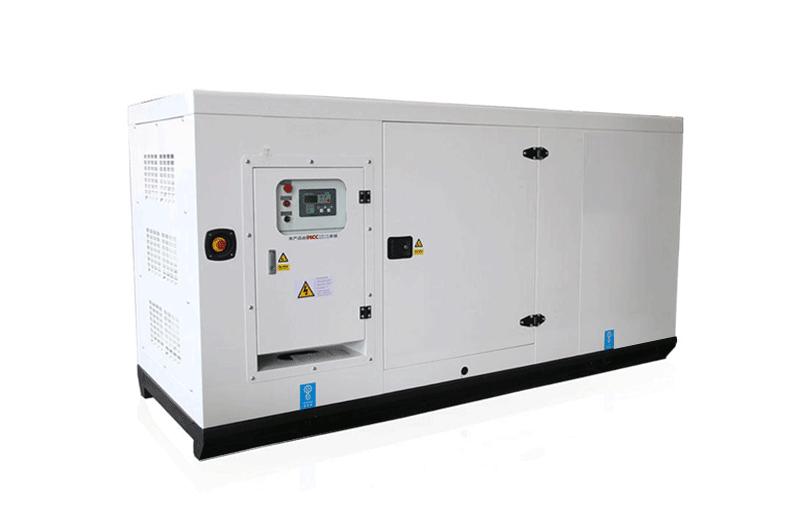

JT‑160KW Cummins Industrial Generator | 160kW Prime Power for Construction & Mining

160 kW Prime / 200 kVA · 176 kW Standby / 220 kVA | Cummins NTA855‑GA 6‑Cylinder Turbocharged | 400/230V 50Hz | ISO9001 · CE · SONCAP · PVoC

Overview ▾

160kVA entry into genuine Cummins NTA855‑GA — 1,630 N·m torque, 320L fuel tank, 76‑78dB(A). Built for construction sites, small‑scale mining and telecom backup. 500‑hour maintenance cycle, LCD diagnostics and full export certifications included. Factory‑direct for global distributors and project contractors.

Applications

JT‑160KW 200kVA Cummins generator with CE SONCAP PVoC certification for construction mining telecom industrial emergency power

· Construction Site
· Small‑Scale Mining
· Manufacturing Workshop
· Telecom Base Station
· Regional Commercial
· Road Maintenance
· Urban Healthcare Facility

Specifications

ModelJT‑160KW
Prime / Standby Power160 kW / 200 kVA · 176 kW / 220 kVA
Voltage / Frequency400/230V · 50 Hz
Rated Current288 A

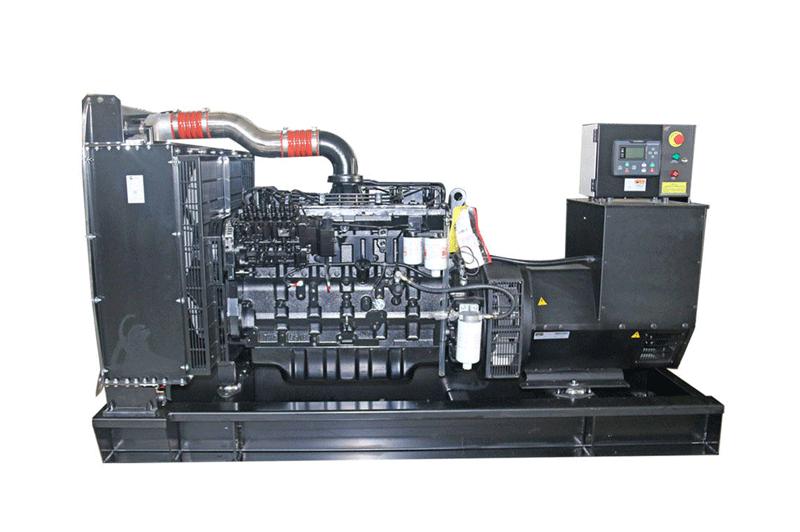

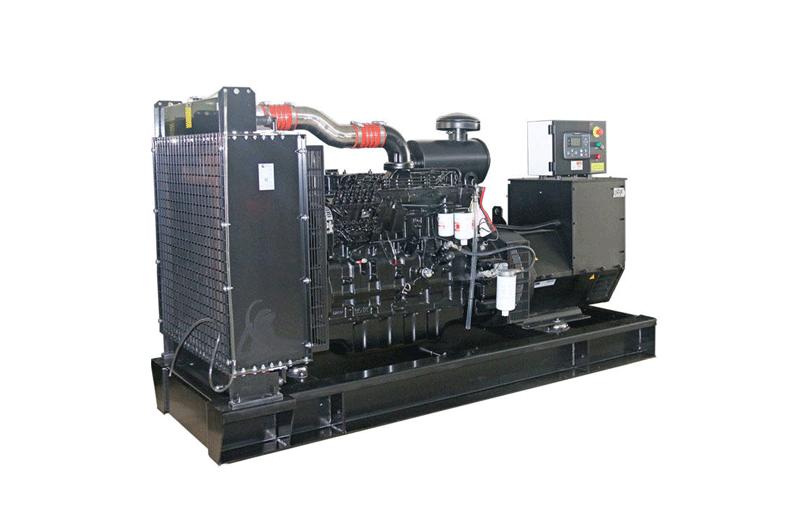

EngineCummins NTA855‑GA, 6‑Cyl In‑Line Turbocharged, 18.9L
Bore × Stroke / Compression159 mm × 159 mm · 15.5:1
Speed / Peak Torque1,500 RPM · 1,630 N·m @1500RPM
Cooling / Engine OilWater‑Cooled · 38 L
AlternatorHLF160, Brushless, Self‑exciting, H‑Class, 3‑Phase
Phase / Power Factor3‑Phase 4‑Wire · 0.8 (lagging)
THD / Protection<5% · IP21
Fuel Consumption174‑182 (50%) / 190‑198 (75%) / 206‑214 (100%) g/kW·h
Fuel Tank / Runtime320 L · ≈10‑hr @ 75% Load
Maintenance Interval500 Working Hours
Noise Level76‑78 dB(A) @ 1m
Max Altitude (No Derate)≤ 1,000 m
Max Parallel UnitsUp to 8 Units (IEC 8528‑5)
ATS CompatibilityYes
Dimensions / Weight4,000 × 1,600 × 2,100 mm · 4.2 t
CertificationsISO9001 · CE · SONCAP · PVoC · NRCS · SIRIM · SNI · TISI
Lead Time30‑35 work days + 40‑50 days ocean freight

Core Advantages

1. 160kW Genuine Cummins Entry Point — No Compromised Engine Platform ▾

160kW is the entry‑level choice for genuine Cummins NTA855‑GA power in the JUTOP lineup. Buyers comparing a 160kW unit against anything below 150kVA are looking at fundamentally different engine platforms — the NTA855‑GA is a factory‑verified 6‑cylinder platform with published torque, fuel and maintenance data. No substituted engine, no unverified specs.

2. 1,630 N·m Peak Torque — Higher Starting Capacity for Heavy‑Load Sites ▾

1,630 N·m from the NTA855‑GA vs 1,450 N·m from the older NT855‑G7 — a 12.4% torque gain (source: Cummins NTA855 series datasheet). This is the highest torque advantage ratio across the entire Cummins NTA855‑powered JUTOP range. For construction sites with heavy starting loads and mining operations in high‑temperature environments, this translates directly to no derating under load.

3. HLF160 H‑Class Alternator — Dust‑Resistant for Harsh Mining & Construction Sites ▾

At 160kW prime power, construction sites and mining operations are the primary deployment environments. The HLF160 alternator carries Class‑H insulation and IP21‑rated housing — protection against winding degradation over extended run sessions. Combined with <5% THD, sensitive construction electronics and electronic control systems stay stable throughout operation.

4. LCD Diagnostic System — Actionable Fault Data for Remote Unattended Sites ▾

160kW prime units often run unattended at remote construction or telecom sites. The LCD panel surfaces DTC fault codes and warning indicators — your maintenance team gets actionable diagnostic information rather than a single lamp that says "something is wrong." Remote monitoring capability reduces site visits and response time.

5. Optimized Fuel Economy — Measurable Annual Cost Savings ▾

At full load, the NTA855‑GA consumes 206‑214 g/kW·h vs the older NT855‑G7 at 212‑220 g/kW·h (source: Cummins NTA855 series datasheet). Running 160kW × 8 hours/day × 250 working days, this 2.8% difference compounds into measurable annual fuel savings for prime power operators.
