PRP: 800 kW / 1000 kVA
Standby: 880 kW / 1100 kVA
Engine: KTA38-G5
Back to List

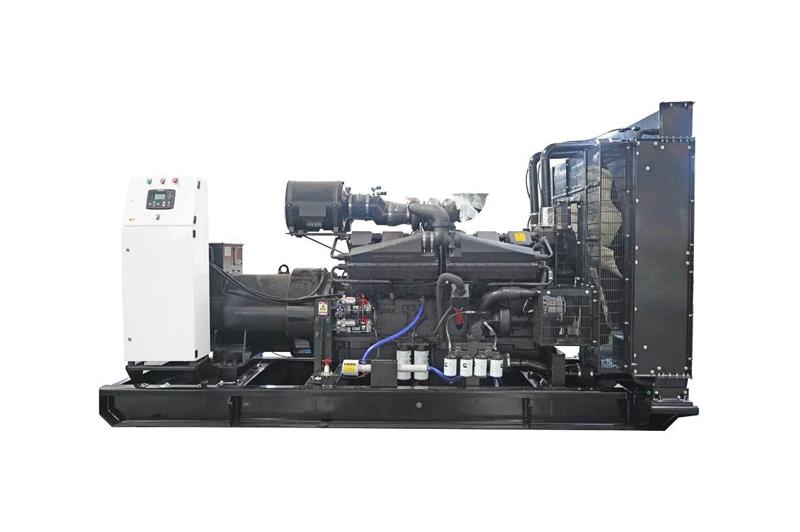

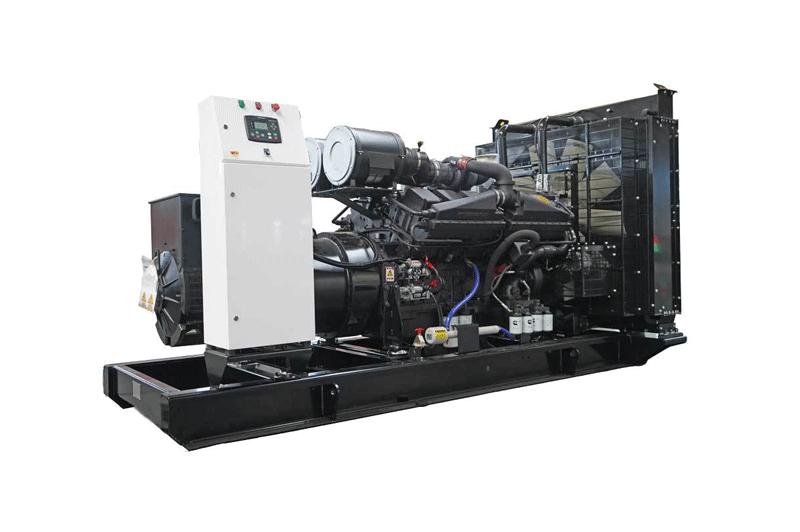

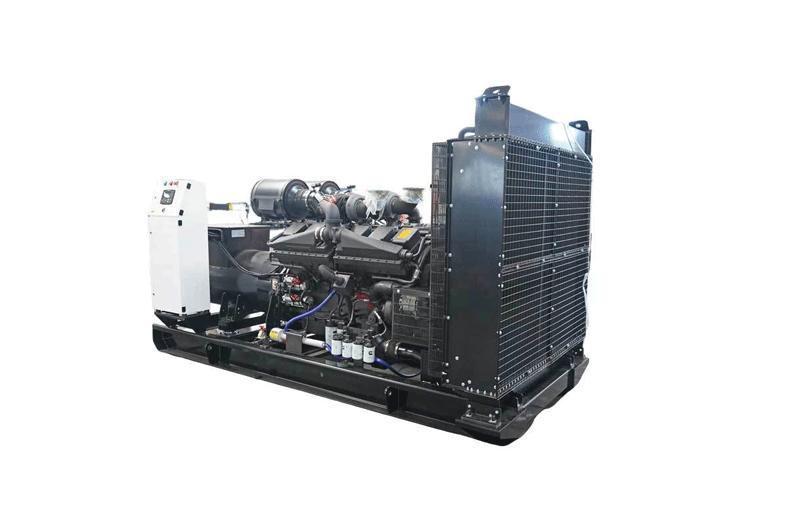

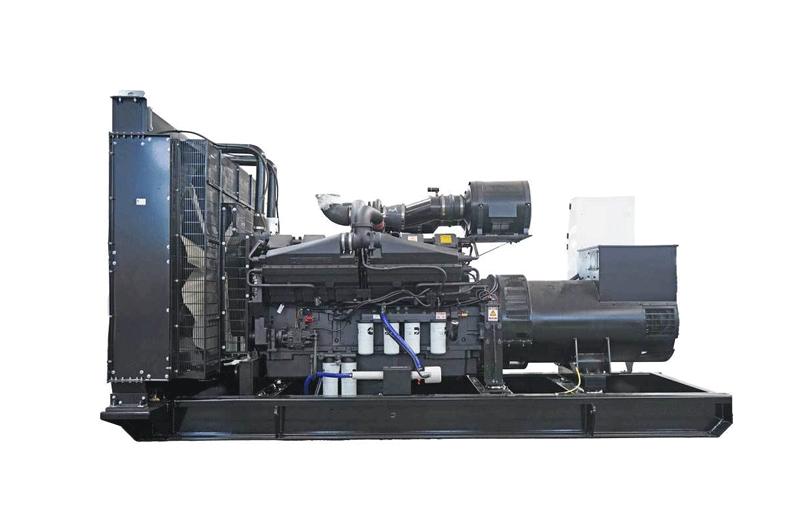

The JT-1000KW Cummins Diesel Generator delivers 1000 kW / 1250 kVA prime power and 1100 kW / 1375 kVA standby power. Powered by the Cummins KTA50-G3 V16 turbocharged diesel engine, it is designed for large mining operations, industrial plants, infrastructure projects and high-capacity backup power systems.
| Generator Model | JT-1000KW Cummins |
| Prime Power | 1000 kW / 1250 kVA |
| Standby Power | 1100 kW / 1375 kVA* |
| Voltage / Frequency | 400/230 V · 50 Hz (Proposed) |
| Engine Model | Cummins KTA50-G3 |
| Rated Current | Approx. 1,804 A at 400 V |
| Dimensions (L × W × H) | 5,800 × 2,200 × 2,600 mm (Indicative) |
| Weight | Approx. 10,200 kg (Indicative) |
| Power Factor | 0.8 Lagging |
| Engine Configuration | V16 · Turbocharged & Aftercooled |
| Engine Displacement | 50.3 L |
| Engine Speed | 1,500 rpm |
| Engine Type | 4-Stroke Diesel |
| Fuel System | Cummins PT Direct Injection |
| Starting System | 24 V DC |
| Alternator | Brushless · Model to Be Confirmed |
| Insulation Class | Class H (Proposed) |
| Control System | Monitoring & Protection Controller (Configuration Dependent) |
The JT-1000KW uses a 50.3 L Cummins KTA50-G3 V16 turbocharged and aftercooled diesel engine with a 1,500 rpm operating speed for 50 Hz power generation. Its heavy-duty engine platform is suitable for high-capacity industrial prime and standby power applications.
The generator can be configured with a brushless alternator, automatic voltage regulation and generator protection controller. ATS integration, remote monitoring, enclosure and paralleling options can be discussed according to project requirements. Final equipment brands and configurations are subject to confirmation.
Get factory-direct pricing, technical specifications and FOB or CIF shipping options for your destination country.
Tell us your country, required power, voltage, application and operating hours. We can also discuss fuel systems, ATS, enclosures and project-specific control requirements.
Send your inquiry through the form on this page or contact us on WhatsApp for a tailored quotation.
Cummins V16 Industrial Engine: 50.3 L KTA50-G3 turbocharged engine platform for demanding high-capacity diesel power generation.
1000 kW Power Capacity: substantial three-phase power output from a single generator set for industrial facilities, mining operations and major infrastructure projects.
Flexible Project Configuration: prime and standby applications with selectable alternator, control system, ATS and remote monitoring solutions according to project requirements.
*The stated standby rating, voltage, current, dimensions and weight require confirmation against the final JT-1000KW generator set datasheet. Actual performance and applicable compliance documents depend on the supplied configuration, installation conditions and operating duty.
