PRP: 1000 kW / 1250 kVA
Standby: 1100 kW / 1375 kVA
Engine: KTA50-G3
PRP: 1000 kW / 1250 kVA
Standby: 1100 kW / 1375 kVA
Engine: KTA50-G3
1000 kW Prime / 1100 kW Standby | Cummins KTA50‑G3 | 400/230V 50Hz

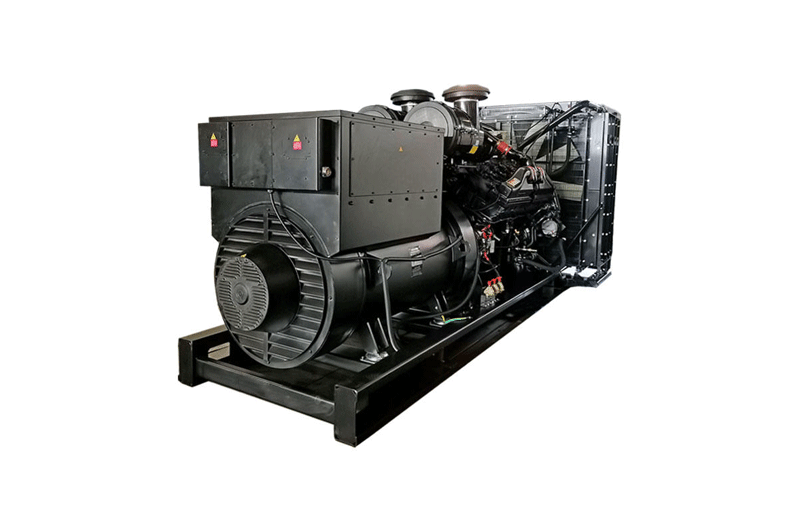

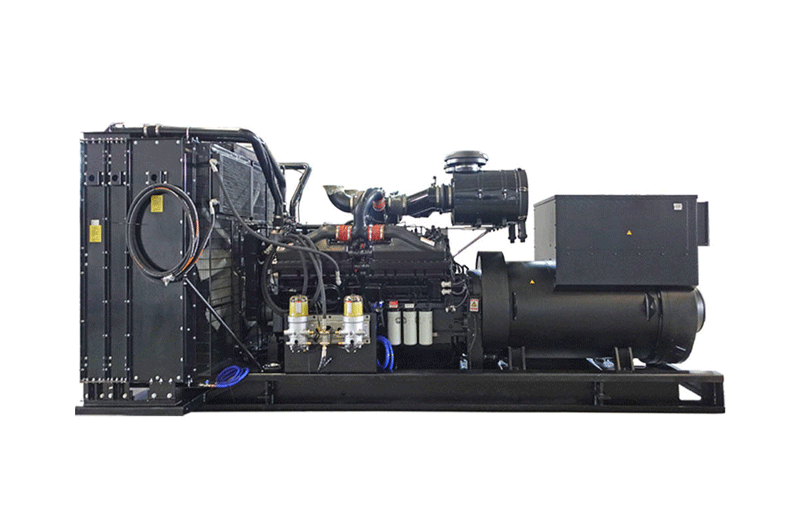

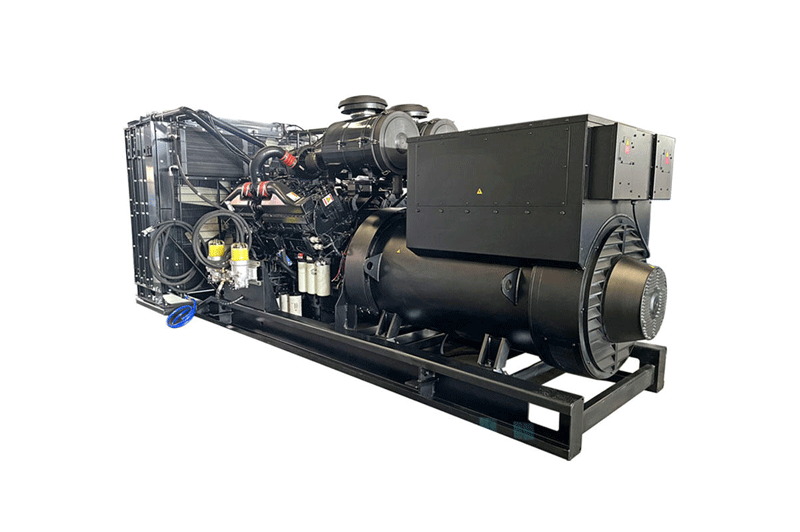

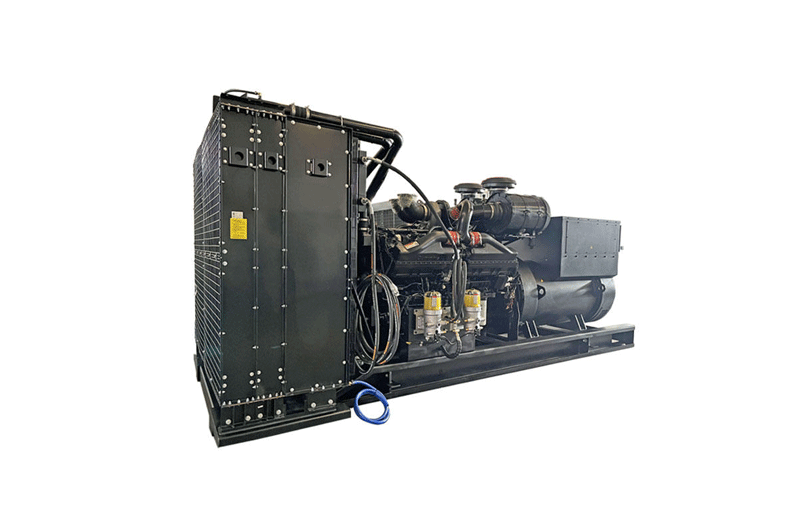

The JT‑1000KW uses the Cummins KTA50‑G3 16‑cylinder V‑type engine for continuous heavy‑load power at mining sites, data centers and large infrastructure projects. It is built for off‑grid zones and unstable‑grid regions where a single 1000kW unit replaces the complexity of paralleled smaller generators.
· Large‑Scale Industrial Complex
· Mining Off‑Grid Site
· Data Center Critical Power
· Regional Hospital Backup
· Mega Commercial Complex
· Remote Infrastructure Construction
· Power Station Auxiliary

| Prime / Standby Power | 1000 kW / 1100 kW (1250/1375 kVA) |
| Voltage / Frequency | 400/230V · 50Hz |
| Rated Current | 1,800 A |
| Engine Model | Cummins KTA50‑G3, 16‑Cyl V‑Type Turbocharged & Aftercooled, 50.0L |
| Peak Torque | 4,200 N·m @ 1500RPM |
| Alternator | Brushless, Self‑exciting, H‑Class Insulation |
| THD / Power Factor | <5% / 0.8 lagging |
| Protection Grade | IP23 |
| Fuel Tank | 800 L |
| Fuel @ 100% Load | 200‑208 g/kW·h (Cummins KTA50 series datasheet) |
| Maintenance Interval | 500 Working Hours (Cummins KTA50 series standard) |
| Noise Level | 84‑86 dB(A) @ 1m |
| Max Altitude (No Derate) | ≤1,000 m |
| Parallel Units | Up to 8 Units |
| ATS Compatibility | Yes |
| Dimensions / Weight | 5,800 × 2,200 × 2,600 mm / 10.2 t |
| Certifications | ISO9001 · CE · SONCAP · PVoC · NRCS · SIRIM · SNI · TISI |
| Lead Time | 30‑35 Working Days + 40‑50 Days Ocean Freight |
| Payment Term | 30% Advance, 70% Before Shipment |
One JT‑1000KW eliminates synchronization controllers, load‑sharing modules and doubled failure points of paralleled units. For sites where 1000kW is the target load, single‑unit simplicity cuts installation cost and commissioning time.
The KTA50‑G3's V16 layout delivers smoother operation than V12 engines at the same power level. Reduced torsional vibration means more stable voltage output for data centers and hospitals where load transients are measurable.
At 1000kW continuous operation, fuel dominates operating cost. The KTA50‑G3's specific fuel consumption (Cummins KTA50 series datasheet) means measurable savings vs units consuming 215+ g/kW·h — enough to matter when buying fuel in bulk for remote sites.
The KTA50‑G3 carries a 500‑hour recommended service interval per Cummins standard specifications. This balances component wear monitoring with realistic site scheduling for mining and infrastructure operators running seasonal campaigns.
At 1000kW, generator failure is a production stoppage. Cummins‑trained technicians and genuine spare parts are available in over 190 countries. When your site is 200km from the nearest city, global service coverage is an operating necessity.
