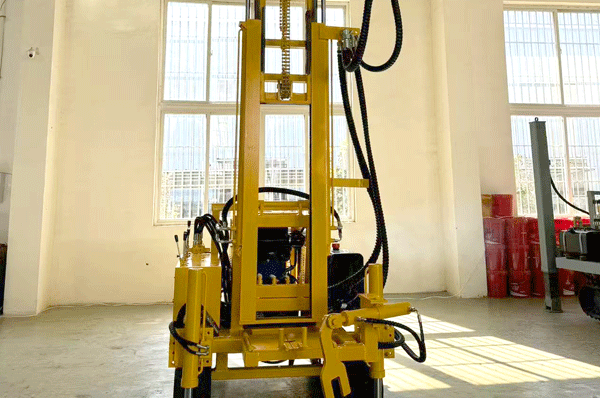

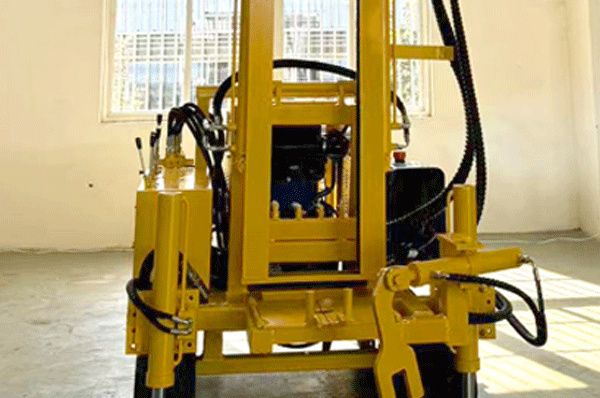

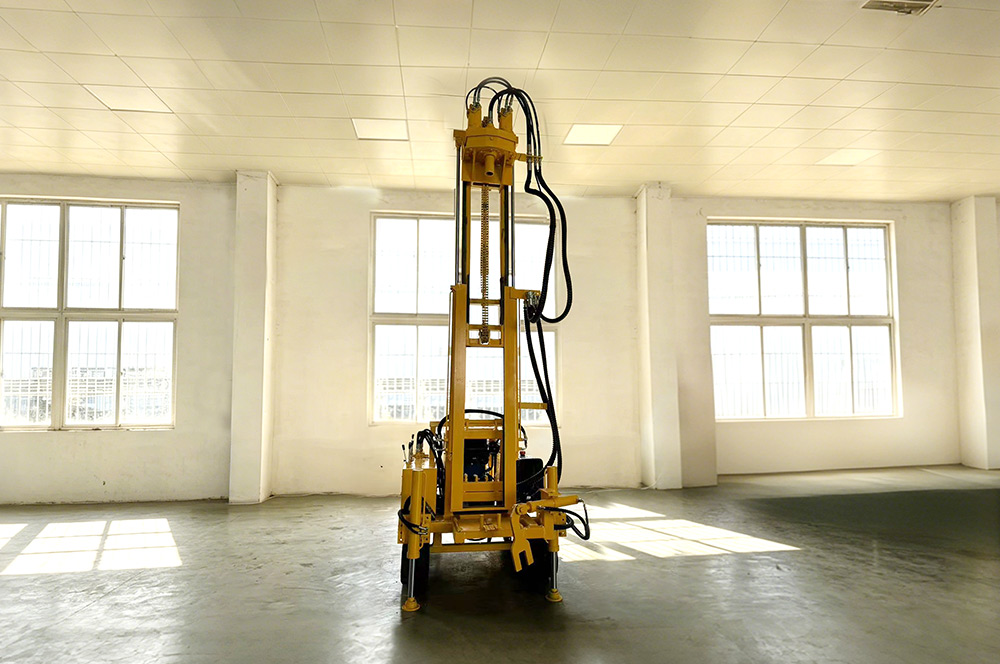

The JTXY260 is a compact crawler-type water well drilling rig engineered for 15-260m deep drilling, ideal for rural domestic water supply, agricultural irrigation, geotechnical engineering and small-scale resource exploration. Built with a 74KW four-cylinder engine and robust crawler chassis, it delivers reliable performance across soft clay, quicksand and hard rock strata, combining high efficiency and terrain adaptability for small-scale drilling projects.

Core Advantages

1. 260m Deep Drilling & Multi-Stratum Adaptability

Supports 100-400mm borehole diameter and 15-260m drilling depth, paired with Φ60/76/89mm drill pipes (2-3m length). 7500N·m rotary torque and compatibility with 18-25bar air compressors ensure stable penetration in soft clay, quicksand and hard rock formations, meeting diverse small well demands.

2. Lightweight Crawler Mobility

Only 2T total weight and compact 3000×1400×2000mm dimensions, with crawler chassis for superior off-road performance. Navigates muddy, uneven rural terrain easily, solving the mobility limitations of wheeled rigs in complex field conditions; ideal for remote sites and narrow workspaces.

3. Powerful & Reliable Core System

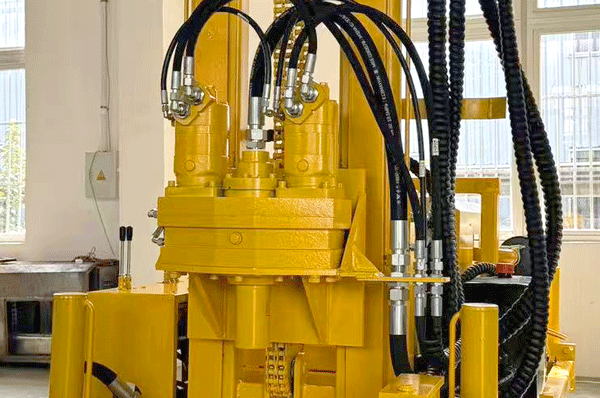

74KW four-cylinder diesel engine provides strong, continuous power for efficient drilling. 16T lifting force handles heavy drill strings stably; the full hydraulic drive system ensures smooth operation, low maintenance and long service life in harsh field environments.

4. Compact & Efficient Setup

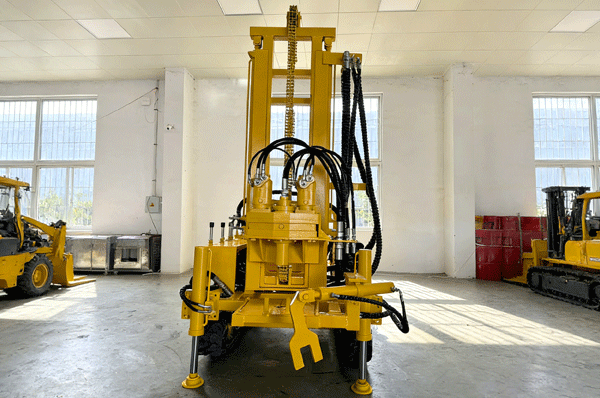

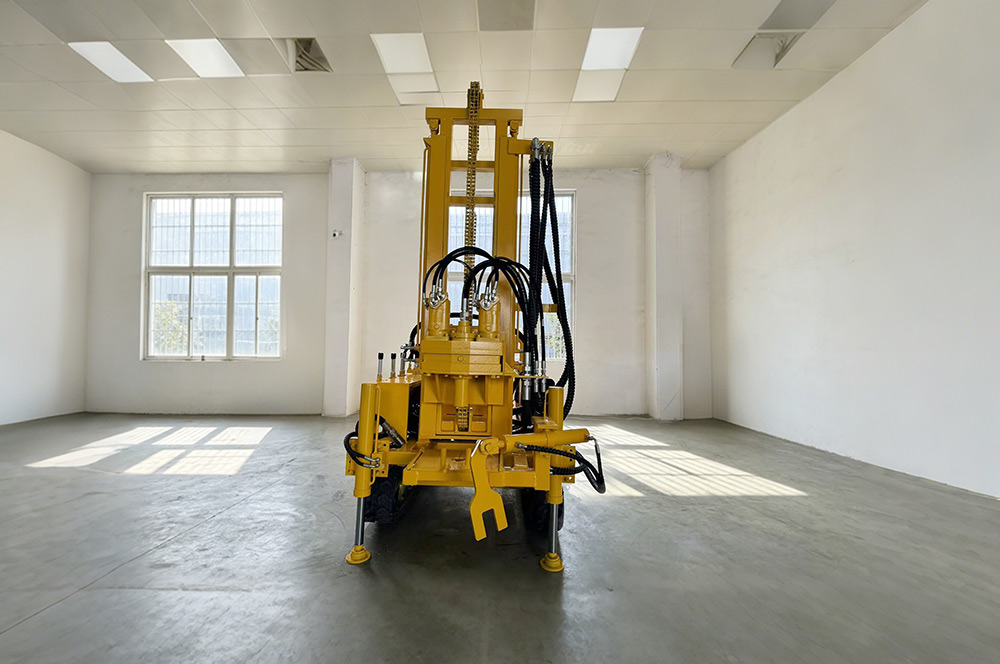

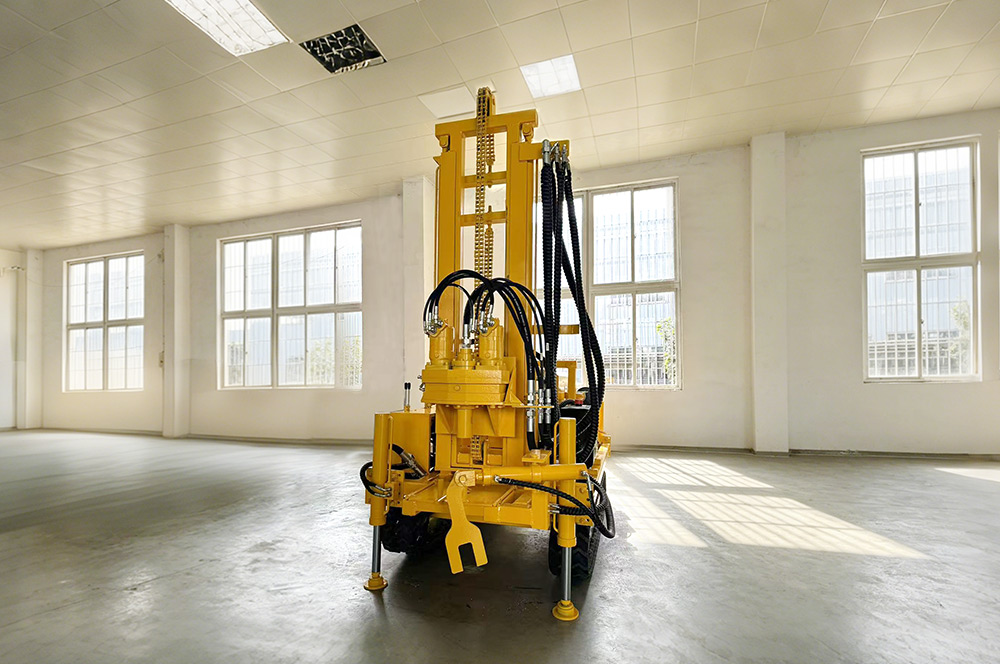

Outrigger design enables quick leveling on uneven ground; simplified control panel reduces operator training time. The compact structure allows easy transportation by small vehicles, with fast setup and teardown to minimize on-site downtime.

Key Applications

- Rural domestic drinking water wells in complex terrain

- Agricultural irrigation & drought-resistance wells

- Small engineering dewatering and geotechnical drilling

- Ground source heat pump well construction for small buildings

Why Choose JTSQ260?

Balances 260m deep drilling capability, lightweight crawler mobility and high operational efficiency, ideal for individual contractors and small engineering teams. Its robust power system and multi-stratum adaptability make it a cost-effective solution for small-scale water well projects in diverse field conditions.

Get in Touch

Contact our technical team for detailed specs and on-site guidance, and power your 260m water well projects with the JTXY260 compact crawler rig!
