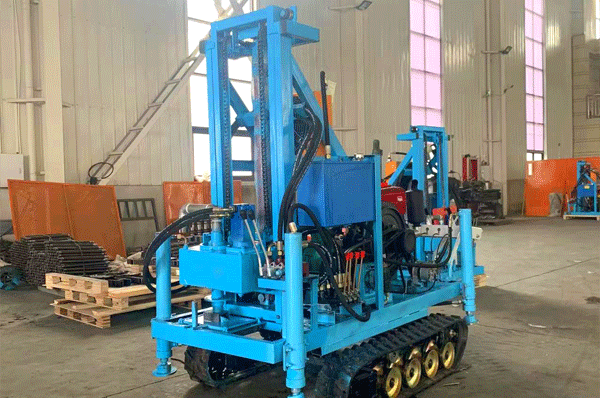

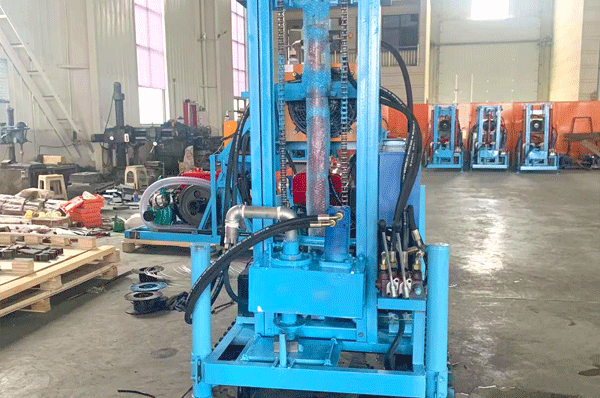

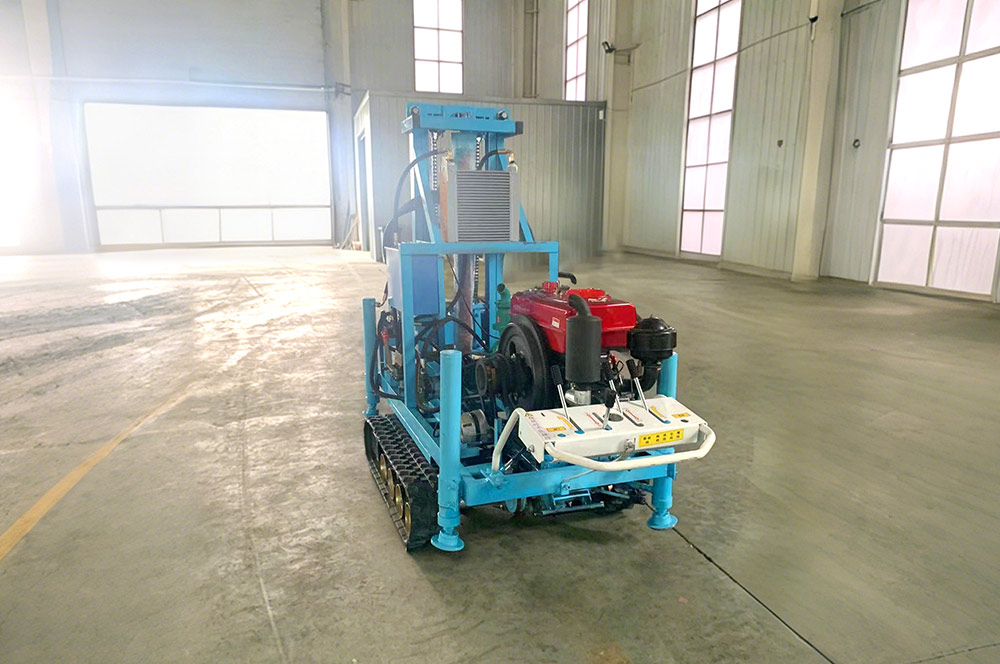

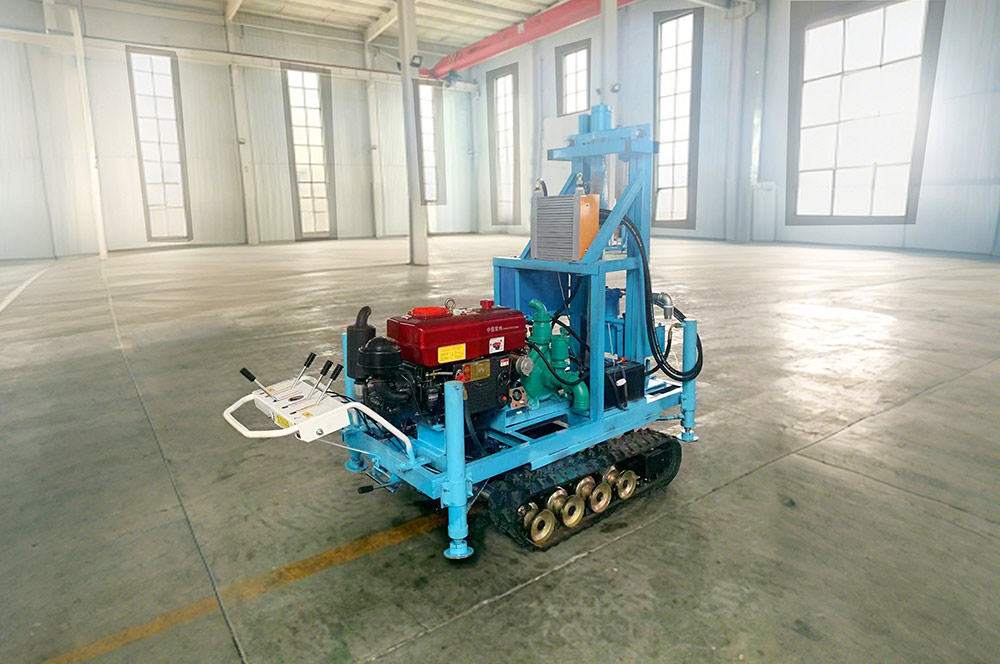

The JTXY150 is a small crawler hydraulic water well drilling rig built for small-scale projects, ideal for rural domestic wells, agricultural irrigation wells and engineering dewatering wells. Unlike wheeled models, its crawler chassis delivers superior off-road performance, making it perfect for muddy, soft soil and uneven rural terrain.

Core Advantages

1. 150m Drilling Capacity

0-150m depth, 100-300mm borehole diameter, paired with Φ50mm drill pipes, reliably handles clay, quicksand and minor rock-soil strata.

2. Crawler Off-Road Mobility

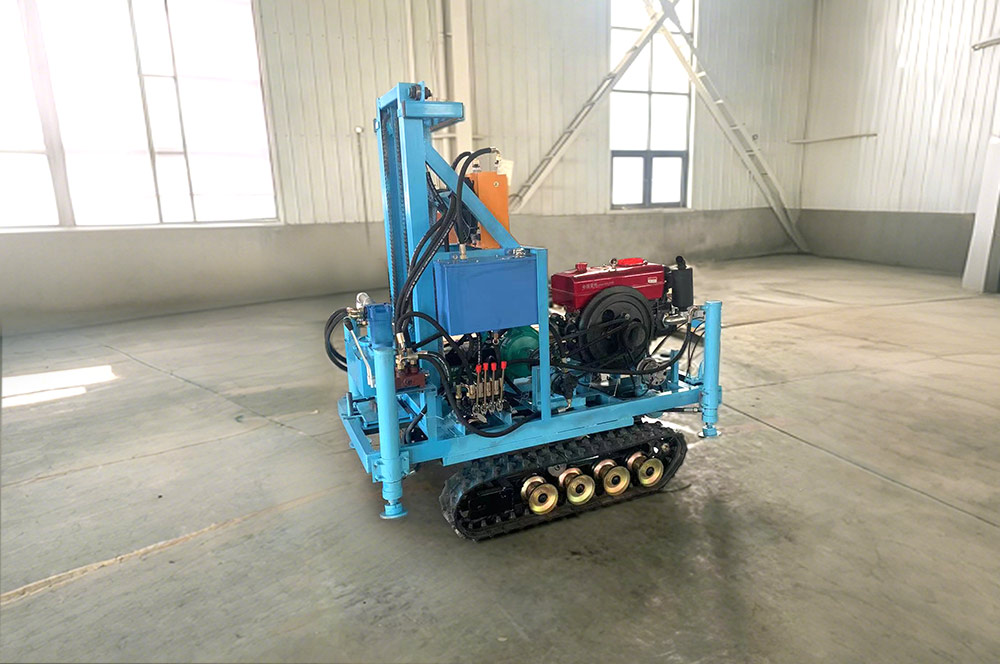

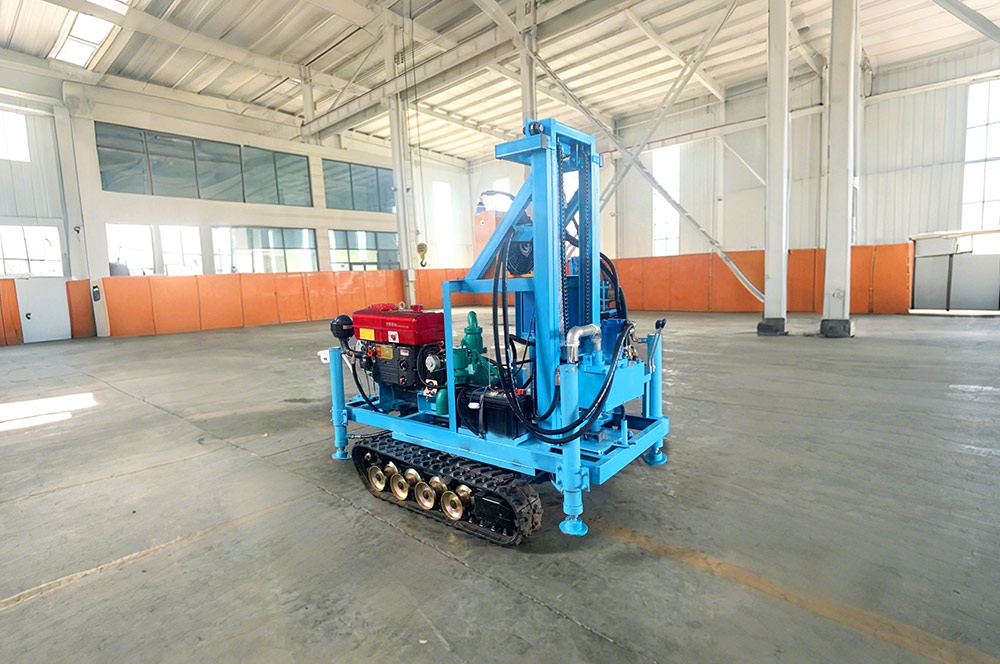

Compact crawler chassis navigates muddy, uneven terrain without skidding or sinking, solving the mobility limitations of wheeled rigs in complex ground.

3. Efficient Hydraulic Drive

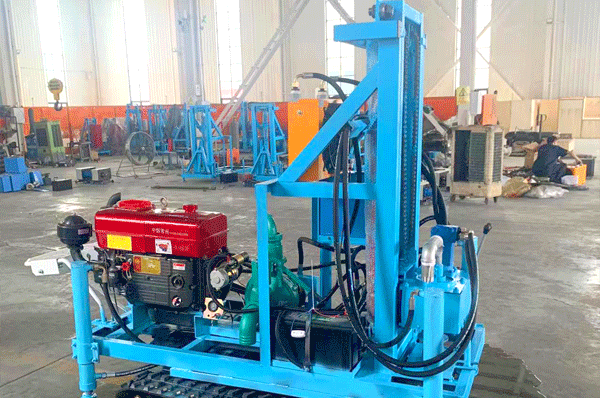

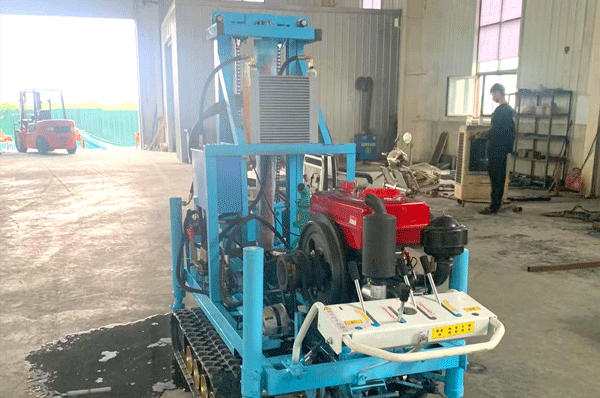

22HP electric-start diesel engine powers high-torque hydraulic motor (forward/reverse rotation) and 65m³/h built-in water pump for efficient slag removal. Dedicated radiator supports 24/7 continuous operation.

4. One-Person Operation & Easy Setup

560kg lightweight design, compact dimensions (2110×960×1700mm) for easy transport. Simplified controls enable full one-person operation; screw support legs and hydraulic foldable drill frame allow quick leveling and setup.

Key Applications

- Rural domestic water wells in muddy/rough terrain

- Agricultural irrigation & drought-resistance wells

- Small engineering dewatering wells

- Ground source heat pump wells for small buildings

Why Choose JTSJ150 Crawler?

Upgraded from wheeled rigs, it retains compact efficiency and one-person operation while adding crawler off-road adaptability. Ideal for individual contractors and small teams, it solves terrain mobility challenges at a low operational cost.

Get in Touch

Contact our team for specs and on-site guidance, and power your small-scale water well projects with the terrain-adaptable JTXY150 crawler rig!
