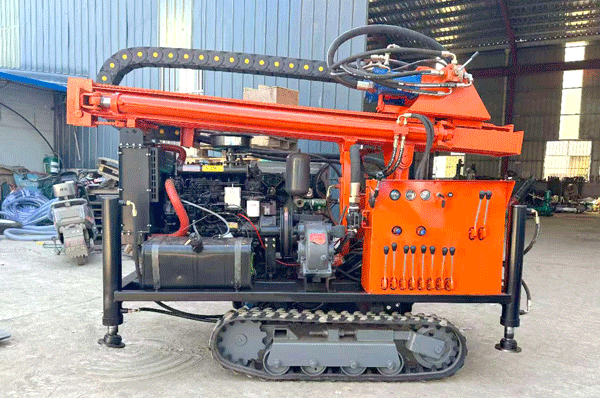

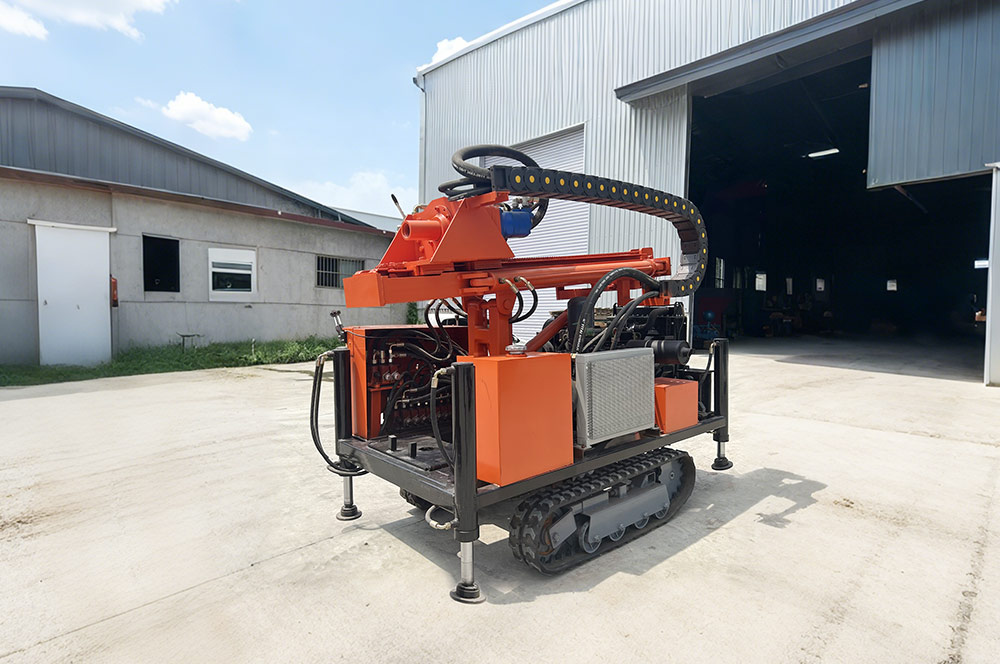

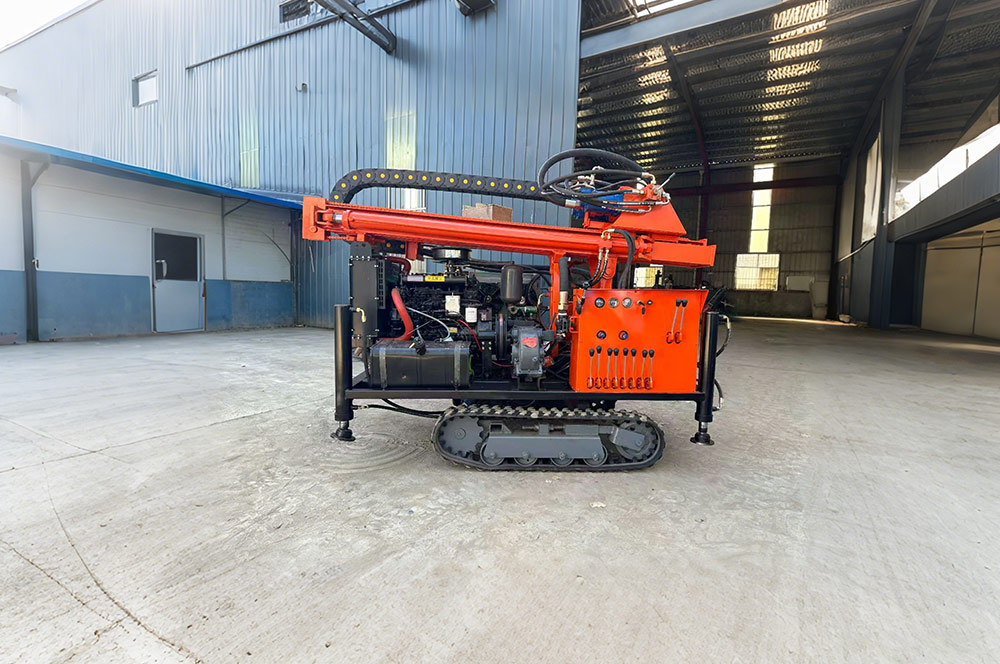

The JTXY200 is a compact crawler-type air-water dual-purpose drilling rig engineered for 180m deep small-scale water well projects. Integrating air-powered DTH hammer drilling and mud circulation modes, it adapts seamlessly to soft and hard rock formations, delivering high efficiency and versatility for rural water supply, agricultural irrigation and geotechnical engineering.

Core Advantages

1. 180m Dual-Mode Drilling Capability

100-400mm borehole diameter and 180m drilling depth, paired with Φ60/76/89mm drill pipes (2m length). Supports air hammer drilling (1.7-2.5MPa, 17-31m³/min air flow) and mud circulation modes, effortlessly handling soft clay, quicksand and hard rock strata.

2. Lightweight Crawler Mobility

Only 2T total weight and compact 2300×1200×1950mm dimensions, with crawler chassis for 30° gradeability and 2.5km/h travel speed. Navigates muddy, uneven rural terrain without skidding, ideal for remote field sites and narrow workspaces.

3. Efficient Hydraulic & Power System

37kW Weifang diesel engine delivers reliable power; 3400-4700N·m rotational torque and 45-70rpm speed ensure stable penetration (10-35m/h). 12T lifting force, 30m/min ascending speed (60m/min rapid rise) and 0.6m high outrigger stroke enable quick setup and precise leveling.

4. Dual Drilling Modes & Multi-Functionality

Integrates air-powered down-the-hole hammer and mud circulation drilling, adapting to diverse geological conditions. Combines water well drilling, geological prospecting and geotechnical engineering functions, offering high cost-effectiveness for multi-scenario use.

Key Applications

- Rural domestic water wells in complex soft/hard rock strata

- Agricultural irrigation & drought-resistance wells

- Geotechnical engineering & ground source heat pump wells

- Small-scale mineral prospecting and geological exploration

Why Choose JTSQ200?

The JTXY200 stands out with air-water dual-mode adaptability, lightweight crawler mobility and compact efficiency, solving the terrain and stratum challenges of small-scale drilling. It’s the ideal choice for individual contractors and small engineering teams seeking reliable, low-cost performance in diverse field conditions.

Get in Touch

Contact our technical team for customized configuration, detailed specs and on-site support, and power your 180m water well projects with the JTXY200 dual-purpose rig!
