Self weight: 1.8 T
Dimensions: 2.78 * 0.71 * 1.62 m
Max operating radius: 6 m
Back to List

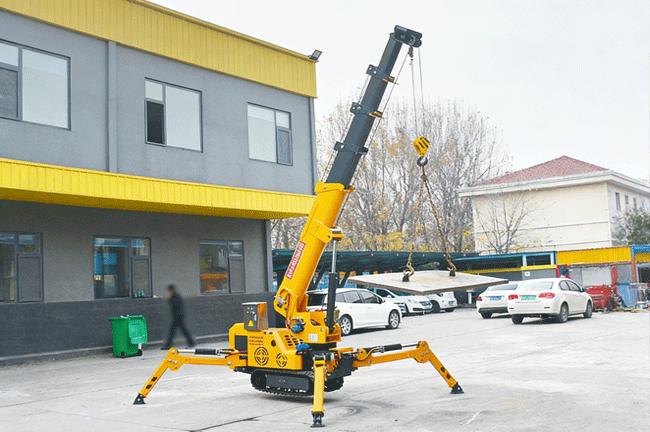

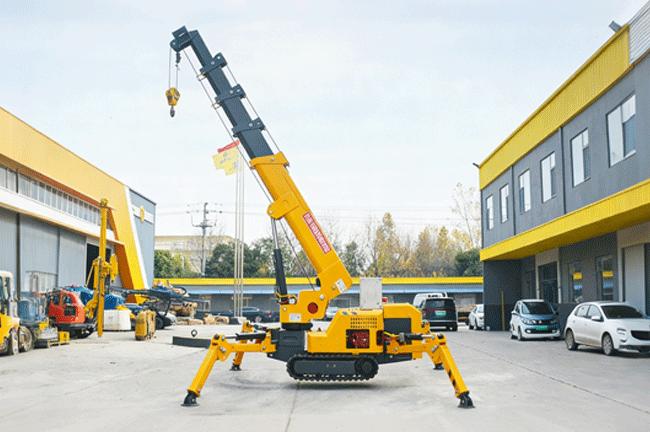

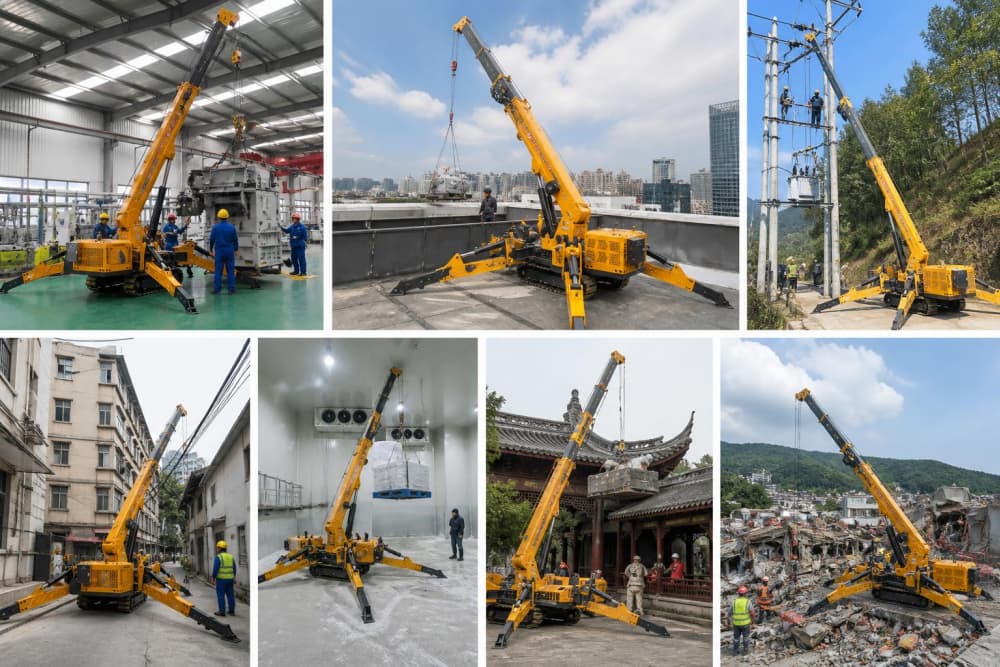

The JTZD-2T is a compact crawler spider crane designed for narrow-access lifting, equipment installation and maintenance. It offers a maximum rated lifting capacity of 2 t, a maximum lifting height of 6.5 m and a working radius of up to 6 m. Its 710 mm-wide chassis and gasoline/electric power options suit a range of confined-site applications.
| Model | JTZD-2T |
| Max. Rated Capacity | 2 t |
| Max. Lifting Height | 6.5 m |
| Max. Working Radius | 6 m |
| Chassis Width | 710 mm |
| Power System | Gasoline / AC 380 V electric |
| Machine Weight | 1,800 kg (subject to confirmation) |
| Overall Dimensions | 2,780 × 710 × 1,620 mm |
| Boom Configuration | 4-section telescopic boom |
| Boom Extension Time | Approx. 20 s (declared) |
| Hook Hoisting Speed | 0–8 m/min (declared) |
| Wire Rope | 8 mm × 45 m (declared) |
| Wire Rope Falls | 4 (declared) |
| Outrigger Span | 2,200 × 2,200 mm (declared) |
| Electric Supply | AC 380 V |

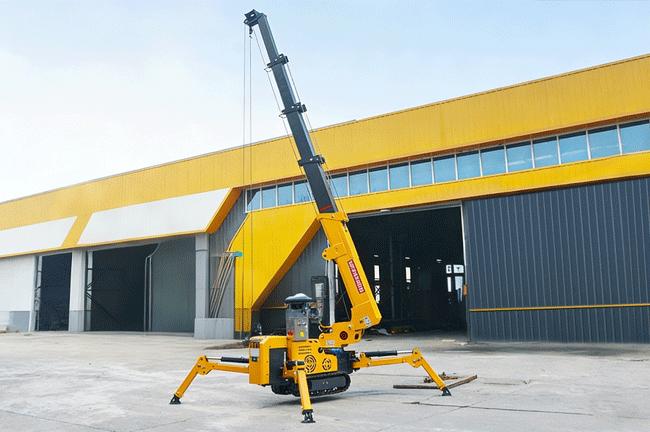

The JTZD-2T combines a four-section telescopic boom, crawler chassis and deployable outriggers. Gasoline and AC 380 V electric power options provide flexibility for different work sites. Confirm the operating mode, official load chart, ground bearing capacity and available accessories before selection.
Request factory-direct pricing, technical specifications, load charts and an FOB or CIF quotation for your destination.
Ask about gasoline/electric configurations, outriggers, controls and lifting accessories, subject to availability.
Contact us via WhatsApp or the inquiry form. Share your country, load weight, lifting height, working radius and access width for a tailored proposal.

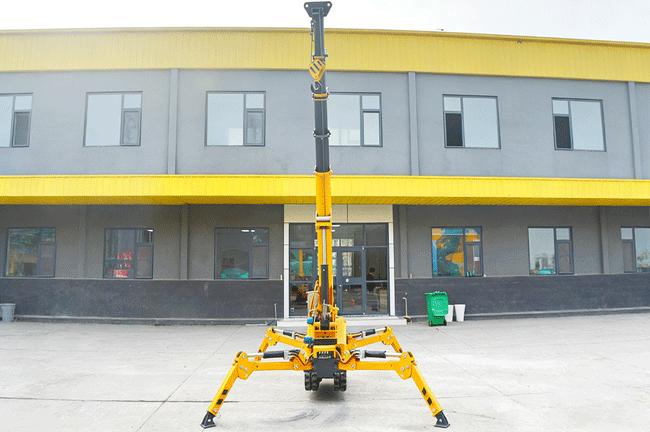

710 mm Narrow-Access Chassis: supports movement through restricted entrances and narrow work areas where larger cranes may not fit.
Gasoline & Electric Power Options: allow the operating configuration to be selected according to available power and site requirements.
2 t Rated Capacity & 6.5 m Maximum Lift Height: combine compact equipment dimensions with telescopic lifting capability, subject to the load chart.
The 2 t rating is the maximum rated capacity, not the allowable load at every radius. Confirm the official load chart, outrigger setup, site access, floor capacity, final machine weight and power configuration before ordering or operation.
