Self weight: 2.7 T
Dimensions: 3.5 * 0.8 * 1.85 m
Max operating radius: 10 m
Back to List

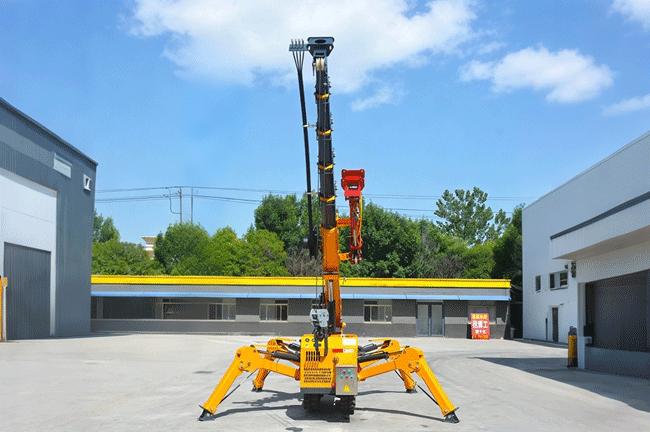

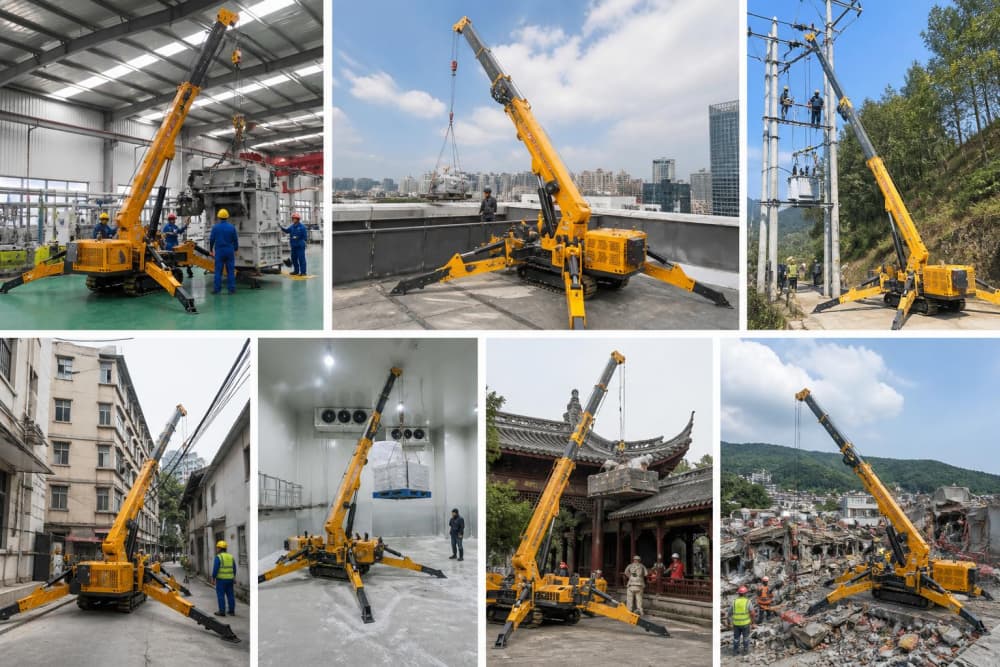

The JTZD-3T is a compact crawler spider crane designed for narrow-access lifting, industrial equipment installation and building maintenance. It offers a maximum rated lifting capacity of 3 t, a maximum lifting height of 10.8 m and a working radius of up to 10 m. Its 800 mm-wide chassis and diesel/electric power options provide flexibility for restricted work sites.
| Model | JTZD-3T |
| Max. Rated Capacity | 3 t |
| Max. Lifting Height | 10.8 m |
| Max. Working Radius | 10 m |
| Chassis Width | 800 mm |
| Power System | Diesel / AC 380 V electric |
| Machine Weight | 2,700 kg (subject to confirmation) |
| Overall Dimensions | 3,500 × 800 × 1,850 mm |

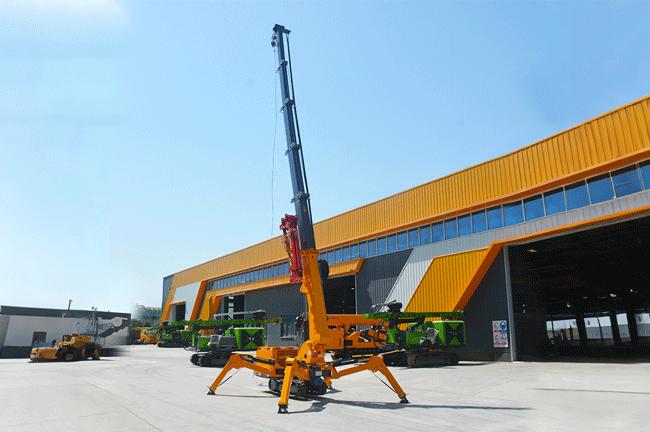

| Telescopic Boom Range | 3.1–10.8 m (declared) |
| Boom Extension Time | Approx. 20 s (declared) |
| Outrigger Span | 2,400 × 2,400 mm (declared) |
| Electric Supply | AC 380 V (declared) |

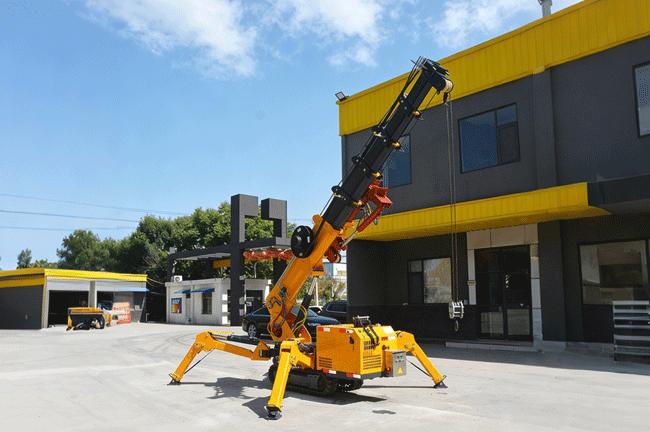

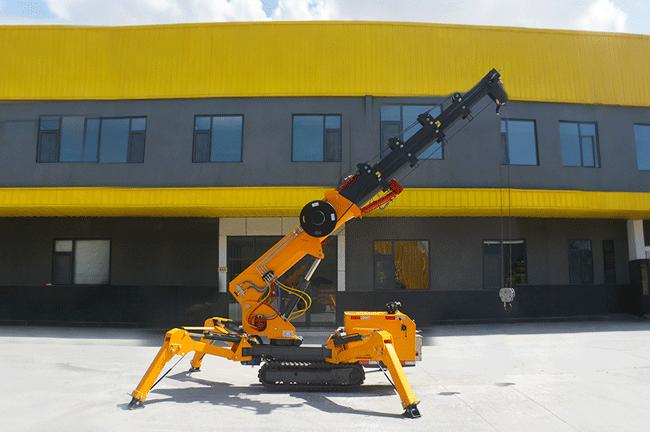

The JTZD-3T combines a telescopic boom, crawler chassis and deployable outriggers for compact lifting tasks. Diesel and AC 380 V electric power options can be selected according to work-site requirements. Confirm the operating configuration, official load chart, available space and ground bearing capacity before selecting the crane.
Request factory-direct pricing, technical specifications, load charts and an FOB or CIF quotation for your destination.
Ask about diesel/electric configurations, outriggers, controls and lifting accessories, subject to availability.
Contact us via WhatsApp or the inquiry form. Share your country, load weight, lifting height, working radius and access width for a tailored proposal.

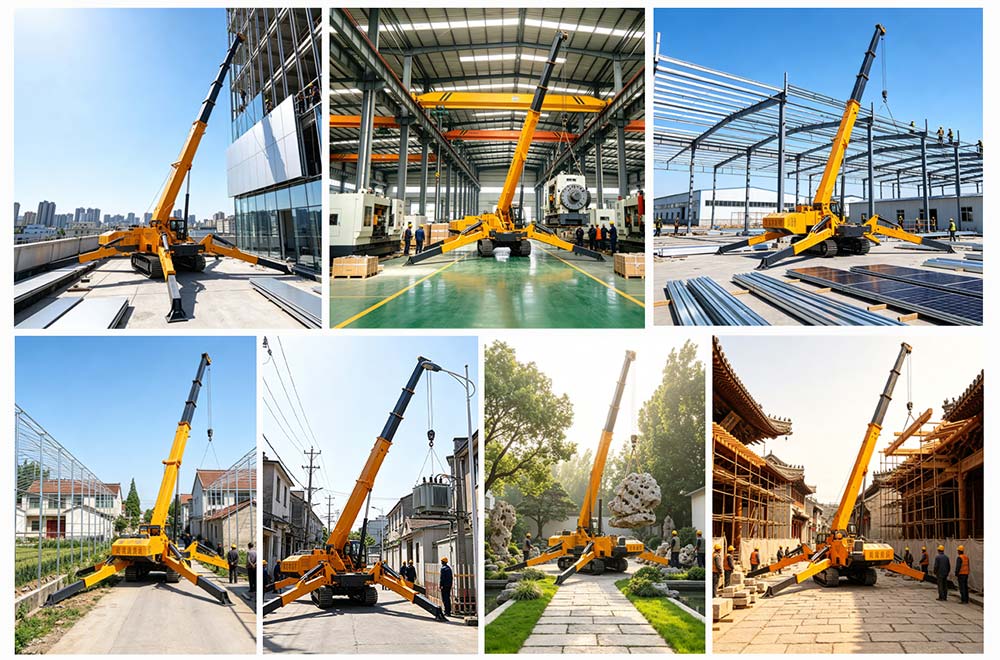

800 mm Narrow-Access Chassis: supports travel through restricted entrances and narrow industrial work areas where larger cranes may not fit.
Diesel & Electric Power Options: allow equipment selection according to available site power, ventilation and operating requirements.
3 t Rated Capacity & 10.8 m Maximum Lift Height: combine compact equipment dimensions with telescopic lifting capability, subject to the official load chart.
The 3 t rating is the maximum rated capacity, not the allowable load at every radius. Confirm the official load chart, outrigger configuration, site access, ground or floor capacity, final machine weight and power requirements before ordering or operation.
