Self weight: 6.7 T
Dimensions: 4.7 * 1.5 * 2.25 m
Max operating radius: 15 m
Self weight: 6.7 T
Dimensions: 4.7 * 1.5 * 2.25 m
Max operating radius: 15 m
5‑Ton Rated Lifting Capacity | 17m Max Vertical Height | 15m Safe Operating Radius | 1.5m Ultra‑Narrow Chassis | Dual Diesel/AC380V Power System

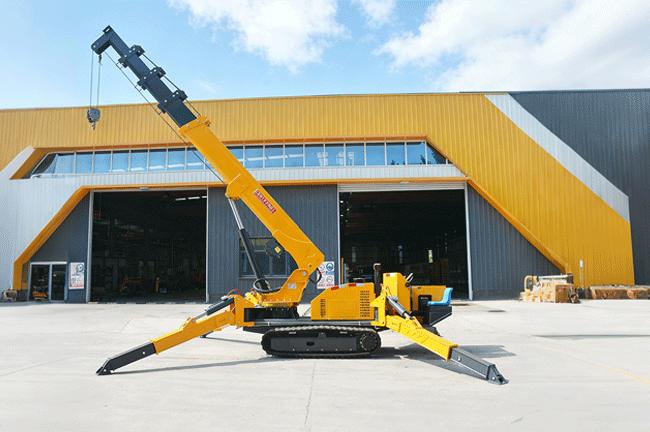

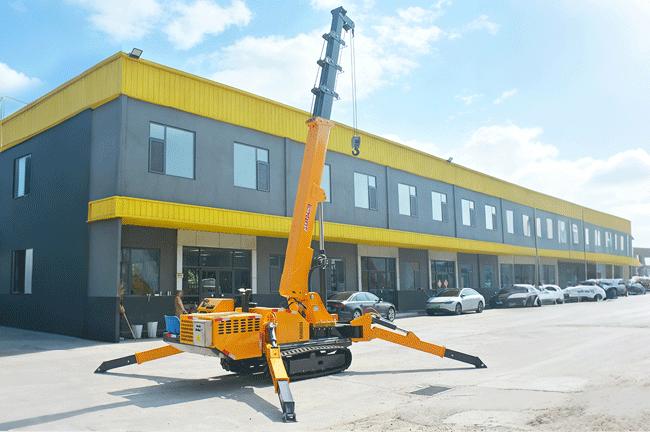

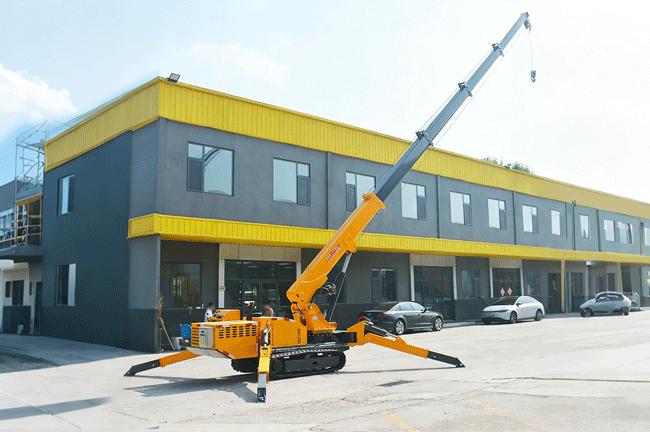

The JTZD‑5T crawler spider crane delivers steady medium‑duty lifting performance for space‑restricted construction sites. Featuring 5‑ton rated lifting capacity, 17‑meter maximum lifting height, 15‑meter safe operating radius and dual‑mode Diesel/AC380V power system, its compact 1.5‑meter‑width chassis enables flexible indoor and outdoor access, suited for structural assembly, equipment positioning and routine industrial maintenance tasks.

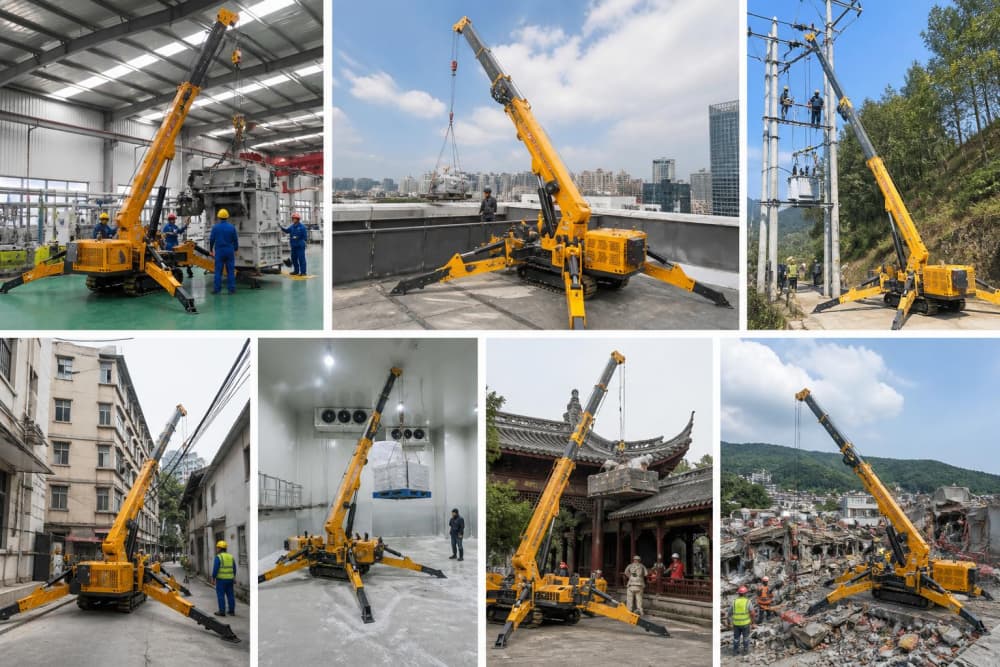

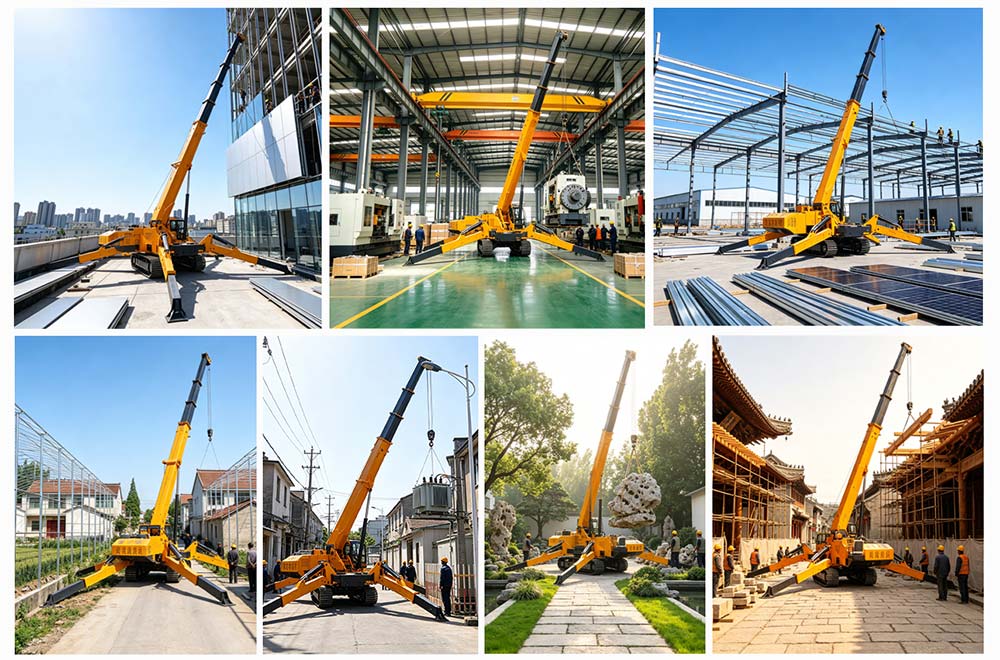

Indoor & Outdoor Light‑Medium Lifting Works | Structural Erection & Assembly | Industrial Equipment Positioning | Factory & Plant Routine Maintenance | Narrow‑Doorway Access Operations | Small‑Scale Medium‑Duty Construction Projects
| Model | JTZD‑5T |
| Rated Lifting Capacity | 5 t |
| Max Vertical Lifting Height | 17 m |
| Max Safe Operating Radius | 15 m |
| Power System | Dual‑Mode Diesel / AC380V Electric Power |
| Telescopic Boom Range | 4.5‑17 m | Full Extension in 54s |
| Overall Transport Dimensions (L×W×H) | 4700 × 1500 × 2250 mm |
| Operating Weight | 4.8 t |
| Transport‑Mode Width | 1500 mm |
| Outrigger Span | 3200 × 3200 mm |
| Global Certifications | CE · ISO 9001 |
The ultra‑compact 1.5‑meter‑width body enables passage through narrow doorways, indoor corridors and densely‑arranged construction zones, supporting flexible operation in limited‑area building and renovation sites.

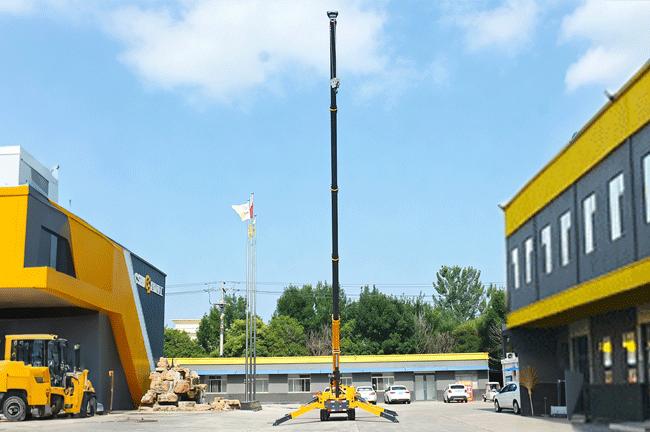

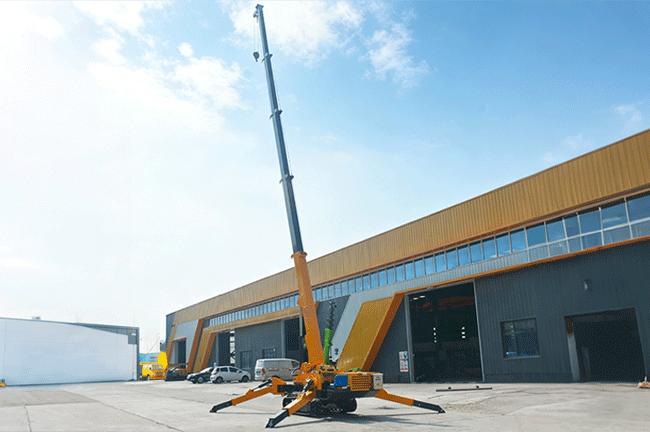

The telescopic boom extends from 4.5m to full 17m height within 54 seconds, delivering rapid height adjustment performance and shortening single‑task operation cycles for continuous construction workflows.
Diesel power supports off‑road outdoor construction travel and lifting, while AC380V electric mode provides zero‑emission, low‑noise indoor lifting performance, adapting to diversified working environments.
