PRP: 30 kW / 37.5 kVA
Standby: 33 kW / 41.25 kVA
Engine: WP2.3D33E200
Back to List

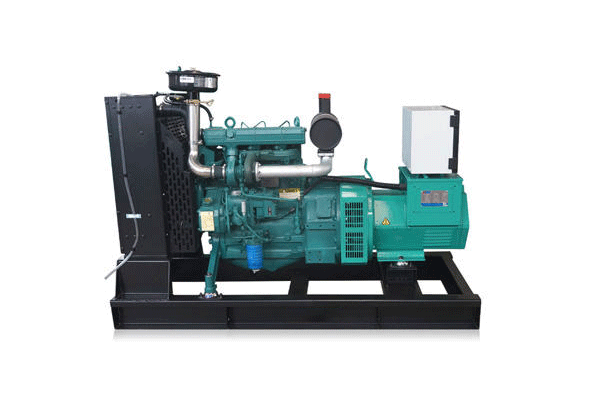

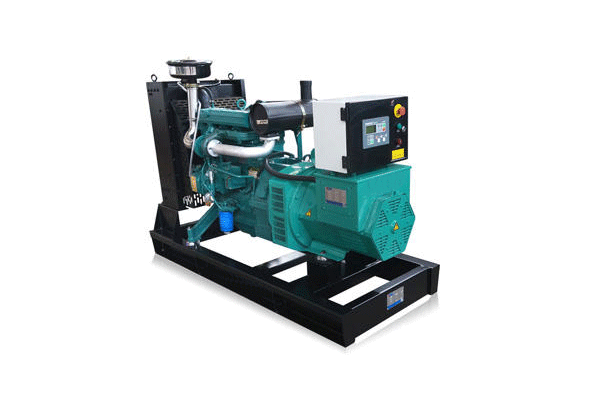

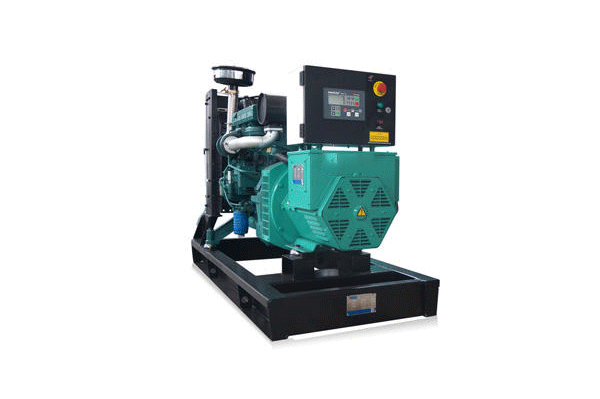

The JT-30KW Weichai Diesel Generator is offered for 30 kW / 37.5 kVA power requirements, with final electrical output subject to engine and alternator selection. The proposed Weichai WP2.3D33E200 4-cylinder turbocharged diesel engine is suitable for smaller generator configurations used in construction, agriculture, workshops and commercial backup power applications.
| Generator Model | JT-30KW Weichai |
| Target Prime Power | 30 kW / 37.5 kVA* |
| Target Standby Power | 33 kW / 41.25 kVA* |
| Voltage / Frequency | 400/230 V · 50 Hz (Proposed) |
| Engine Model | Weichai WP2.3D33E200 (Proposed) |
| Rated Current | Approx. 54 A at 400 V (Target) |
| Dimensions (L × W × H) | 2,800 × 1,500 × 1,800 mm (Indicative) |
| Weight | Approx. 1,200 kg (Indicative) |
| Power Factor | 0.8 Lagging (Proposed) |
| Engine Configuration | Inline-4 · Turbocharged |
| Engine Displacement | 2.289 L |
| Engine Speed | 1,500 rpm |
| Engine Type | 4-Stroke Diesel |
| Bore × Stroke | 89 × 92 mm |
| Compression Ratio | 17.5:1 (Engine Reference) |
| Engine Prime Power | 30 kW Mechanical at 1,500 rpm |
| Cooling System | Water-Cooled |
| Alternator | Brushless · Model to Be Confirmed |
The proposed JT-30KW configuration uses a 2.289 L Weichai WP2.3D33E200 inline-4 turbocharged diesel engine with water cooling for small industrial generator applications. The engine is rated at 30 kW mechanical prime power, so the final generator electrical output must be confirmed separately.
The generator configuration can be evaluated with a brushless alternator, automatic voltage regulation and monitoring and protection controller. ATS integration, remote monitoring, soundproof enclosure, trailer mounting and extended fuel tank options can be discussed according to project requirements.
Get factory-direct pricing, technical specifications and FOB or CIF shipping options for your destination country.
Tell us your country, required power, voltage, application and operating hours. We can recommend a suitable engine and alternator combination for your required electrical output.
Send your inquiry through the form on this page or contact us on WhatsApp for a tailored quotation.
Weichai 2.3 L Industrial Engine: WP2.3D33E200 inline-4 turbocharged diesel engine platform for compact industrial generator applications.
Power Configuration Flexibility: a generator solution for small industrial and commercial power requirements, with the final electrical rating matched to the selected engine and alternator.
Project-Specific Options: optional ATS, remote monitoring, soundproof enclosure, trailer mounting and fuel storage configurations according to project needs.
The 30 kW prime and 33 kW standby figures are target electrical ratings, not verified outputs for the proposed WP2.3D33E200 engine. Its mechanical engine ratings are 30/33 kW. Final genset power, dimensions, weight, noise, runtime and compliance documents must be confirmed against the approved configuration before ordering.
