PRP: 100 kW / 125 kVA
Standby: 110 kW / 137.5 kVA
Engine: WP6D132E200
Back to List
The JT-100KW Weichai Diesel Generator delivers 100 kW / 125 kVA prime power and 110 kW / 137.5 kVA standby power. Powered by the Weichai WP6D132E200 inline-6 turbocharged diesel engine, it is designed for construction sites, industrial workshops, mining facilities and commercial backup power applications.
| Generator Model | JT-100KW Weichai |
| Prime Power | 100 kW / 125 kVA |
| Standby Power | 110 kW / 137.5 kVA* |
| Voltage / Frequency | 400/230 V · 50 Hz |
| Engine Model | Weichai WP6D132E200 |
| Rated Current | Approx. 180 A at 400 V |
| Dimensions (L × W × H) | 4,000 × 1,800 × 2,200 mm (Indicative) |
| Weight | Approx. 3,000 kg (Indicative) |
| Power Factor | 0.8 Lagging |
| Engine Configuration | Inline-6 · Turbocharged & Intercooled |
| Engine Displacement | 6.75 L |
| Engine Speed | 1,500 rpm |
| Engine Type | 4-Stroke Diesel |
| Bore × Stroke | 105 × 130 mm |
| Compression Ratio | 18:1 |
| Fuel Injection | Direct Injection |
| Cooling System | Water-Cooled |
| Starting System | 24 V DC |

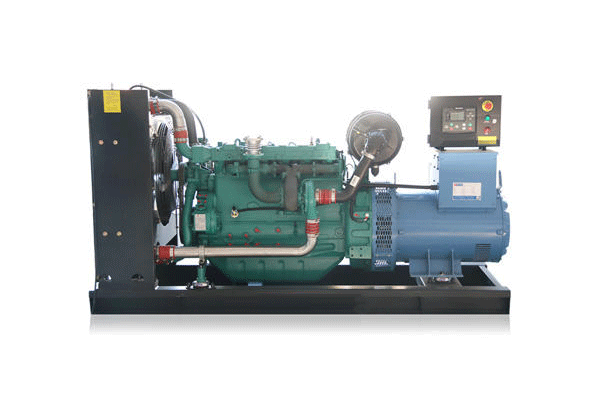

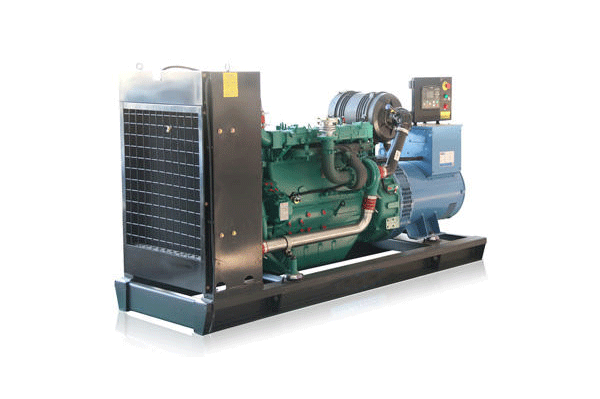

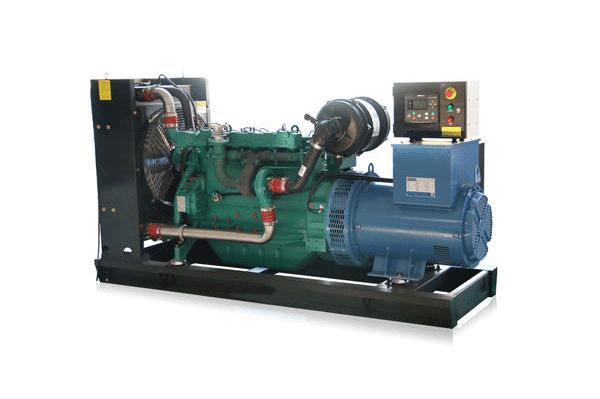

The JT-100KW combines a 6.75 L Weichai WP6D132E200 inline-6 turbocharged and intercooled diesel engine with a three-phase alternator for industrial power generation. Its direct-injection fuel system, water-cooled construction and six-cylinder engine design support demanding prime and standby power applications.
The generator can be configured with a brushless alternator, automatic voltage regulation and generator monitoring and protection controller. ATS integration, remote monitoring, soundproof enclosure and extended fuel tank options can be discussed according to project requirements. Final equipment brands and specifications are subject to confirmation.
Get factory-direct pricing, technical specifications and FOB or CIF shipping options for your destination country.
Tell us your country, required power, voltage, application and operating hours. We can also discuss ATS, fuel tank capacity, soundproof enclosures and project-specific control requirements.
Send your inquiry through the form on this page or contact us on WhatsApp for a tailored quotation.
Weichai 6.75 L Industrial Engine: WP6D132E200 inline-6 turbocharged and intercooled diesel engine with direct fuel injection for industrial power generation.
100 kW Power Capacity: 125 kVA prime output for construction projects, industrial workshops, mining facilities and commercial standby power systems.
Flexible Project Configuration: prime and standby applications with optional ATS, remote monitoring, acoustic enclosures and extended fuel storage solutions.
Final generator ratings, voltage, current, dimensions, weight, fuel tank capacity, runtime and operating performance depend on the supplied configuration and site conditions. Confirm the complete genset datasheet and applicable compliance documents before ordering.
