Self weight: 8.7 T
Dimensions: 6.15 * 1.6 * 2.25 m
Max operating radius: 18 m
Self weight: 8.7 T
Dimensions: 6.15 * 1.6 * 2.25 m
Max operating radius: 18 m
8‑Ton Rated Lifting Capacity | 21m Max Vertical Height | 18m Safe Operating Radius | 1.6m Ultra‑Narrow Chassis | Dual Diesel/AC380V Power System

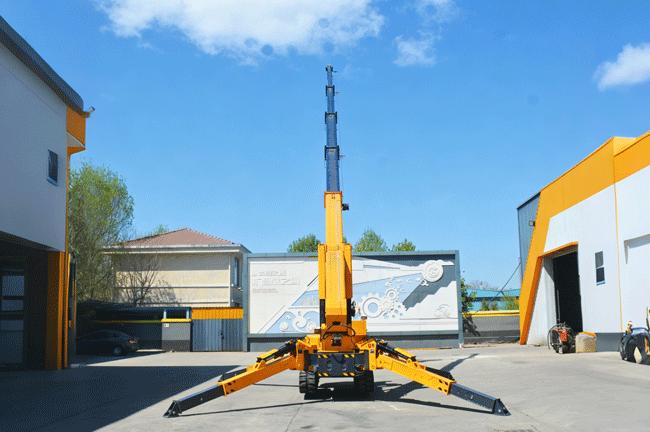

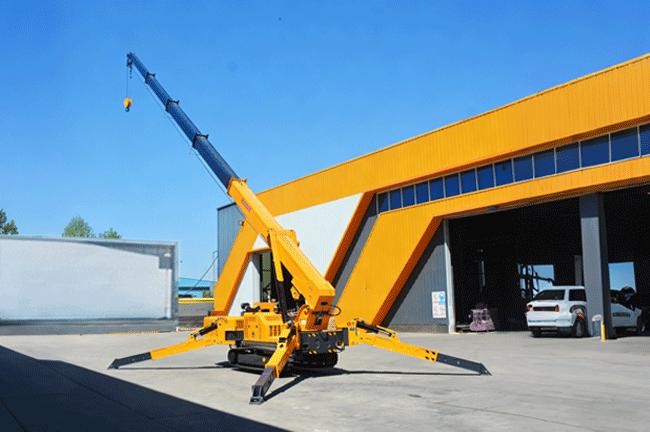

The JTZD‑8T crawler spider crane delivers steady medium‑heavy lifting performance for confined‑space construction sites. Featuring 8‑ton rated lifting capacity, 21‑meter maximum lifting height, 18‑meter safe operating radius and dual‑mode Diesel/AC380V power system, it balances solid lifting performance and compact footprint, suited for equipment positioning and structural installation on complex‑terrain work zones.

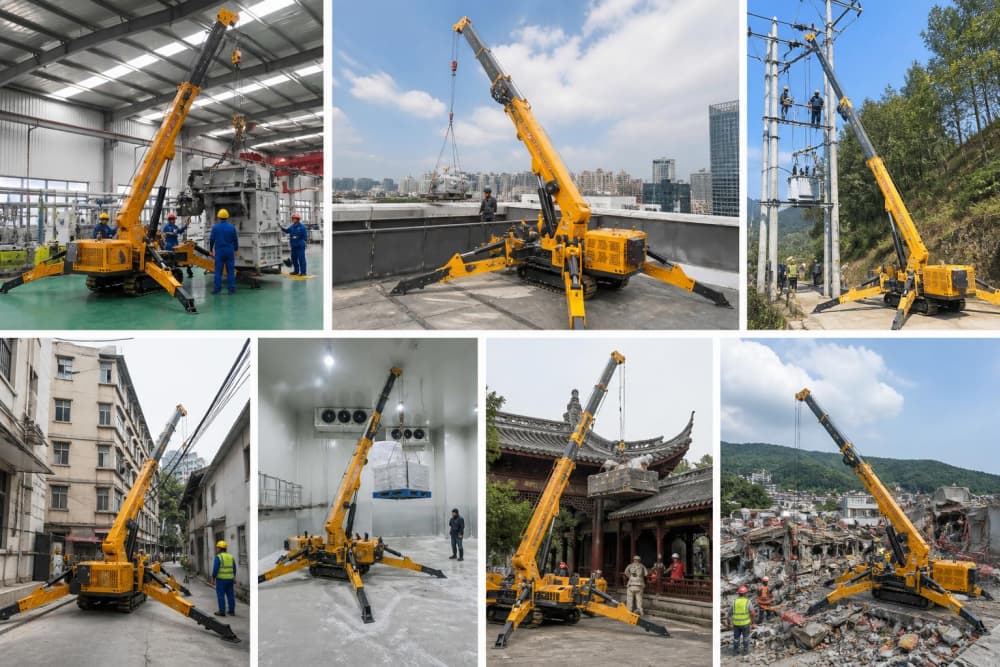

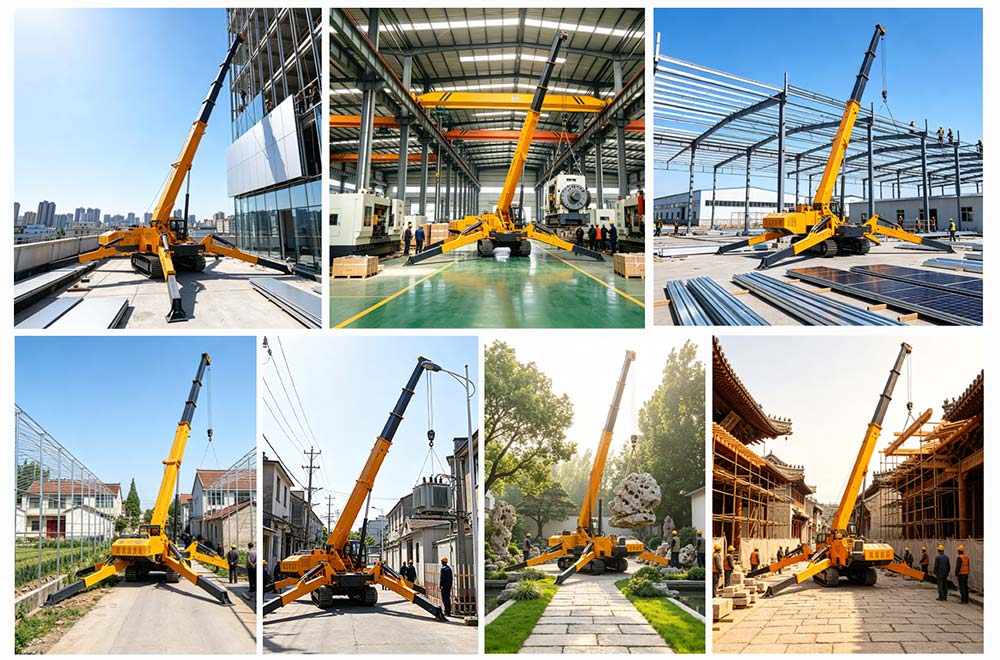

Indoor & Outdoor Lifting Works | Structural Erection & Assembly | Industrial Equipment Positioning | Factory & Plant Maintenance | Narrow‑Corridor Access Operations | Small‑Scale Medium‑Heavy Construction Projects
| Model | JTZD‑8T |
| Rated Lifting Capacity | 8 t |
| Max Vertical Lifting Height | 21 m |
| Max Safe Operating Radius | 18 m |
| Power System | Dual‑Mode Diesel / AC380V Electric Power |
| Telescopic Boom Range | 5.5‑21 m | Full Extension in 54s |
| Overall Transport Dimensions (L×W×H) | 6150 × 1600 × 2250 mm |
| Operating Weight | 6.2 t |
| Transport‑Mode Width | 1600 mm |
| Outrigger Span | 3600 × 3600 mm |
| Global Certifications | CE · ISO 9001 |
The ultra‑slim 1.6‑meter width chassis enables passage through narrow walkways, indoor corridors and restricted‑access construction areas, spaces inaccessible to standard‑size mobile cranes.

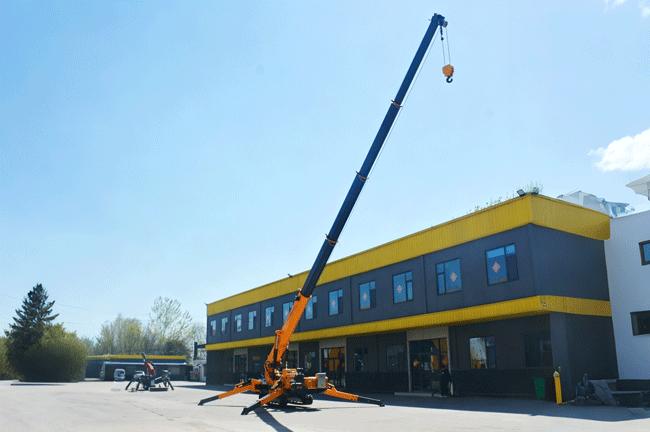

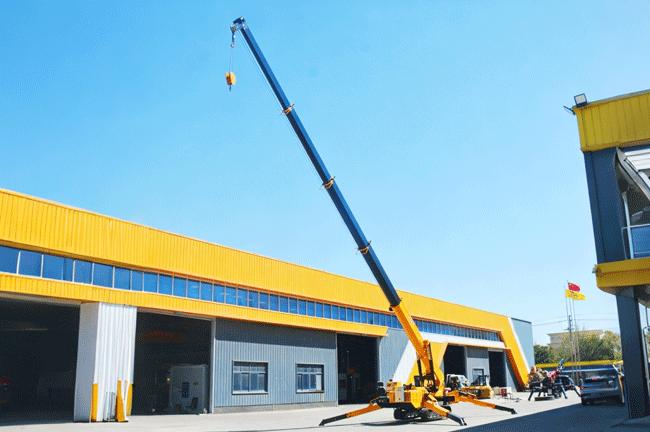

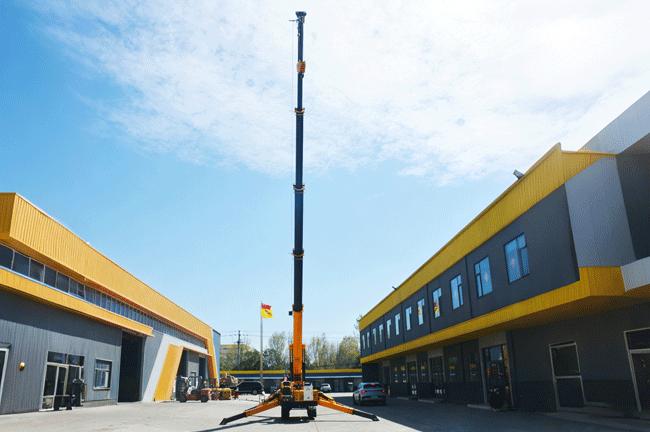

The 5‑section telescopic boom extends from 5.5m to full 21m height within 54 seconds, adapting to varied elevation requirements and shortening single‑task operation cycles for continuous construction workflows.
Diesel power supports off‑road outdoor construction operation, while AC380V electric mode delivers zero‑emission, low‑noise lifting performance for indoor projects, suited for diversified working environments.
Shandong Jutop Heavy Industry Technology Co., Ltd. is a national high-tech heavy machinery manufacturer founded in 2013. Equipped with a 50,000㎡ workshop and over 300 professionals, we specialize in R&D and export of construction machinery, drilling rigs and generators. Boasting 200+ patents and global certifications, our products are exported to over 120 countries, dedicated to supplying reliable cost-effective equipment for worldwide clients.
