Lifting height: 3-6 m
Max lifting capacity: 5000 kg
Min ground clearance: 280 mm
Back to List

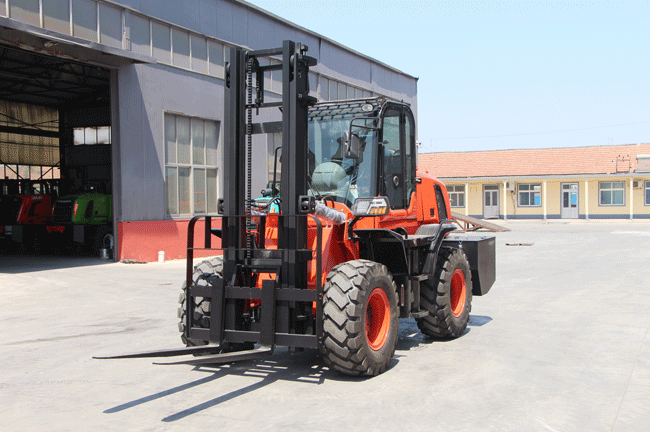

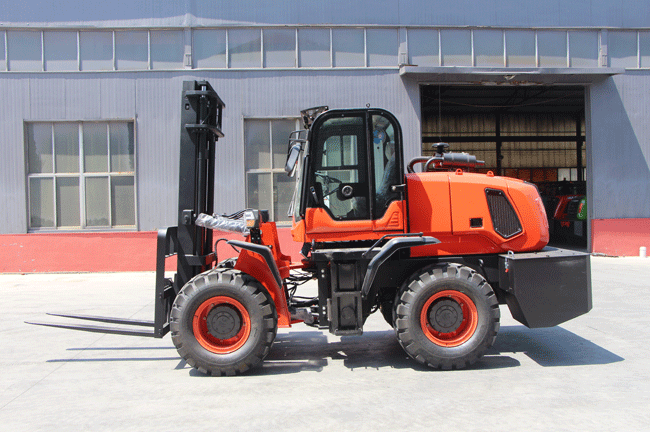

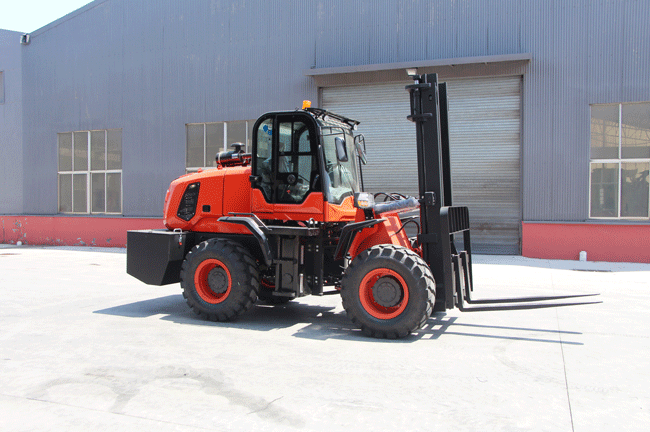

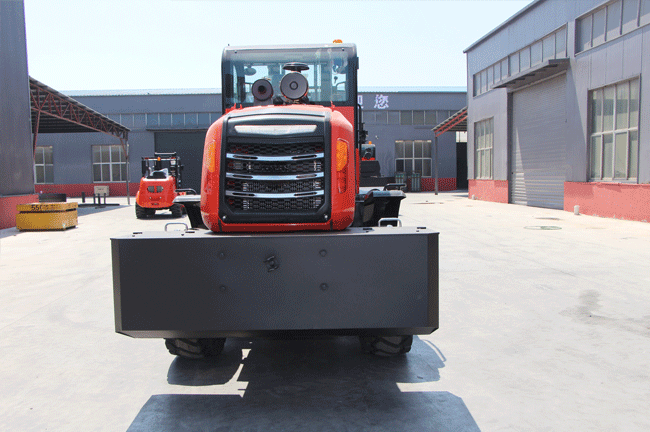

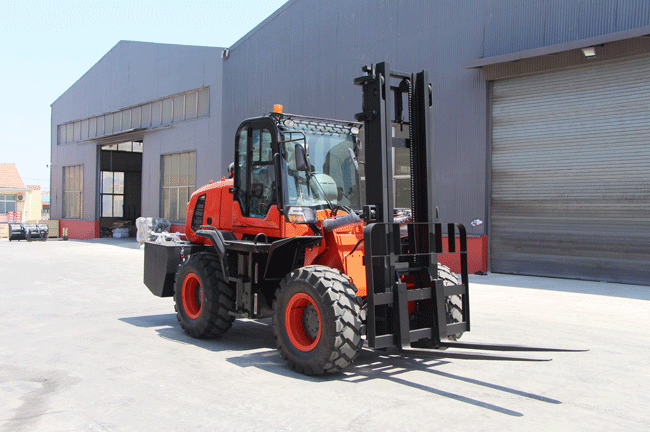

The JTYC50 Rough Terrain Forklift combines a 5,000 kg rated load, 2,160 mm short wheelbase and 4WD diesel power for heavy outdoor material handling. Equipped with a 4102 supercharged engine and heavy cast steel wheel reduction axles, it supports construction, industrial yard and agricultural loading operations.
| Model | JTYC50 (Short Wheelbase) |
| Rated Load | 5,000 kg |
| Lift Height | 3,000–6,000 mm |
| Engine | 4102 Supercharged Diesel |
| Drive Mode | Four-Wheel Drive (4WD) |
| Wheelbase | 2,160 mm |
| Vehicle Weight | ≥5,600 kg |
| Overall Dimensions | 4,450 × 2,150 × 2,600 mm |
| Max. Climbing Angle | ≤45° |
| Max. Travel Speed | 30 km/h |
| Minimum Ground Clearance | 280 mm |
| Axles | Heavy Cast Steel Wheel Reduction Axles |
| Tire Specification | 16/70-20 Semi-Solid High-Tread Tires |
| Transmission Gears | 4 Forward / 4 Reverse |
| Gearbox | Dual High/Low-Speed Hydraulic Torque Converter |
| Cab | New Electrophoresis-Coated Luxury Rounded Cab |
The 4102 supercharged diesel engine works with heavy cast steel wheel reduction axles and a dual high/low-speed hydraulic torque converter. The 4-forward/4-reverse gearbox, 4WD system and 16/70-20 semi-solid tires support outdoor material transport, with 3–6 m lifting heights available.
Get factory-direct pricing, 5-ton forklift specifications and FOB/CIF shipping quotations.
Share your load dimensions, required lift height and destination country through the inquiry form or WhatsApp.
5 Ton Short-Wheelbase Design: Combines heavy lifting capacity with a 2,160 mm wheelbase for outdoor loading operations.
Cast Steel Axles & 4WD: Wheel reduction axles and semi-solid high-tread tires support work on suitable rough-terrain surfaces.
Dual-Speed Torque Converter: High/low-speed transmission and 4F/4R gears provide selectable travel gearing for material handling.
Specifications follow the manufacturer-supplied YGCY-50 Short Axis Version, marketed as JTYC50. Rated load depends on mast height, load center and the approved capacity plate. The maximum climbing angle does not represent a safe full-load operating limit.
