Lifting height: 3-6 m
Max lifting capacity: 3500 kg
Min ground clearance: 250 mm
Back to List

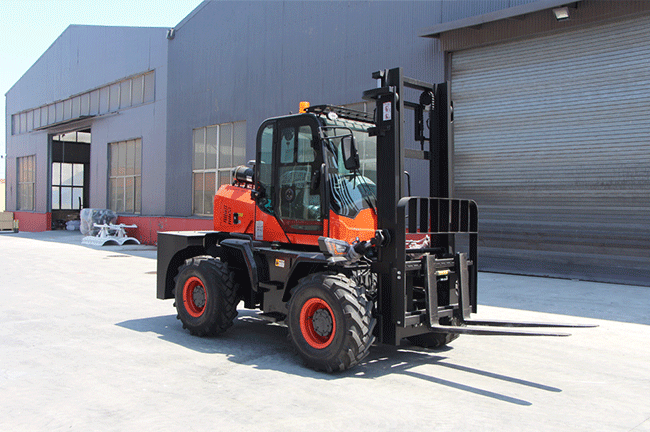

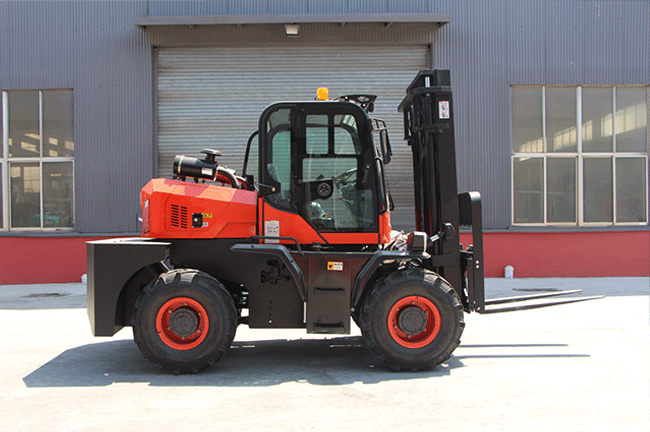

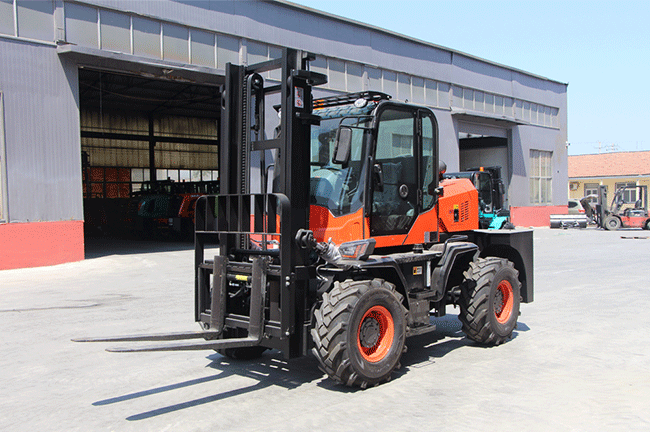

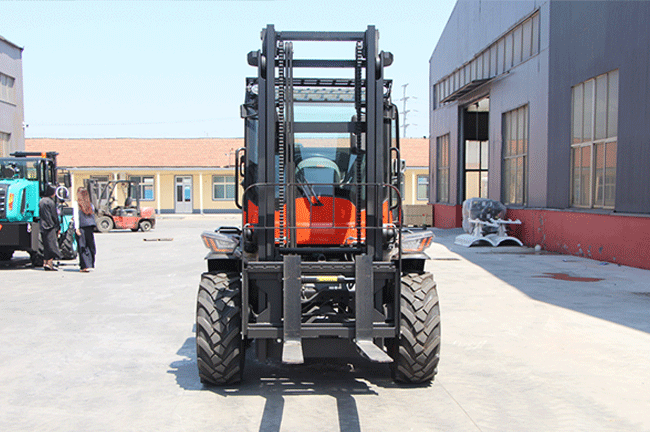

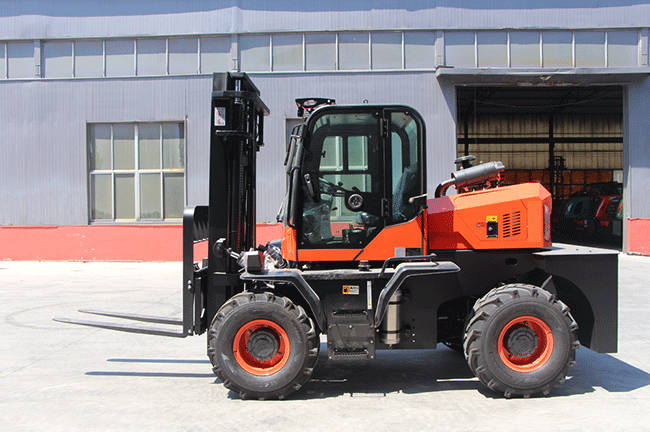

The JTYC35-2 Rough Terrain Forklift combines a 3,500 kg rated load, 1,950 mm wheelbase and 4WD diesel drivetrain for outdoor material handling. Featuring heavy cast steel wheel reduction axles and a 490-series diesel engine, it supports pallet loading and transport across construction yards, agricultural sites and industrial storage areas.
| Model | JTYC35-2 |
| Rated Load | 3,500 kg |
| Lift Height | 3,000–6,000 mm |
| Engine | 490 Diesel |
| Drive Mode | Four-Wheel Drive (4WD) |
| Wheelbase | 1,950 mm |
| Vehicle Weight | ≥4,300 kg |
| Overall Dimensions | 3,450 × 1,850 × 2,250 mm |
| Maximum Climbing Angle | ≤45° |
| Maximum Travel Speed | 30 km/h |
| Minimum Ground Clearance | 250 mm |
| Axles | Heavy Cast Steel Wheel Reduction Axles |
| Tire Specification | 23.5/70-16 High-Pressure Off-Road Tires |
| Transmission Gears | 4 Forward / 4 Reverse |
| Gearbox | Dual High/Low-Speed Hydraulic Torque Converter |
| Cab | New Electrophoresis-Coated Luxury Rounded Cab |
The 490 diesel engine works with heavy cast steel wheel reduction axles and a dual high/low-speed hydraulic torque converter. The 4-forward/4-reverse transmission and 4WD system support outdoor material transport, while 3–6 m mast options accommodate different lifting requirements.
Get factory-direct pricing, 3.5-ton forklift configurations and FOB/CIF shipping quotations.
Share your load dimensions, required mast height and destination country through the inquiry form or WhatsApp.
3.5 Ton 4WD Handling: Rated for palletized building materials and outdoor loading tasks on suitable working surfaces.
Cast Steel Axles & Off-Road Tires: Heavy wheel reduction axles and 23.5/70-16 tires support material movement over uneven yards.
Dual-Speed Transmission: High/low-speed hydraulic torque converter with 4F/4R gearing for different operating conditions.
Technical specifications follow the manufacturer-supplied YGCY-35 configuration, marketed as JTYC35-2. Rated capacity depends on mast height, load center and the approved capacity plate. Maximum climbing angle does not indicate safe full-load operation on slopes.
