Lifting height: 3-6 m
Max lifting capacity: 3500 kg
Min ground clearance: 250 mm
Back to List

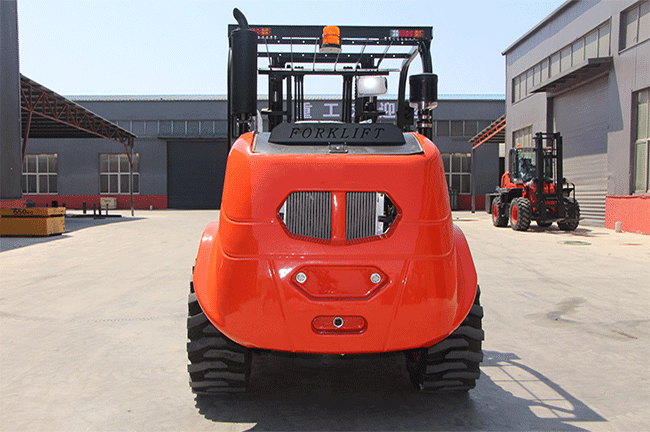

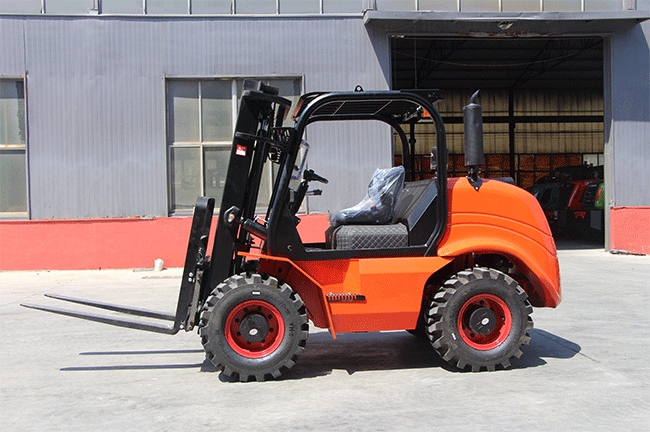

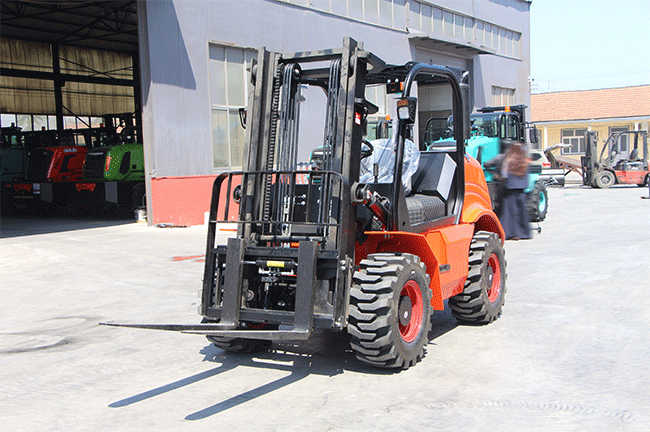

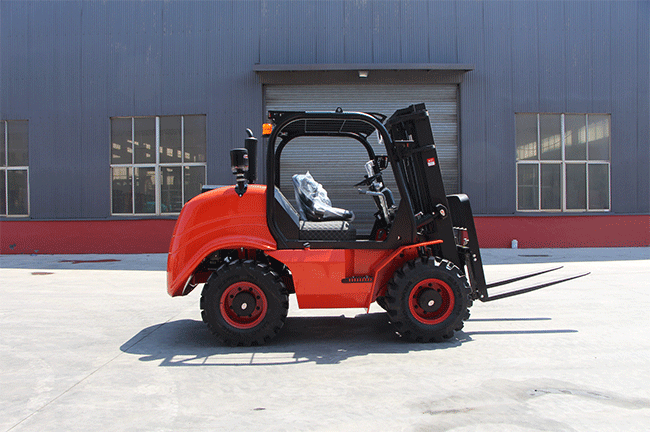

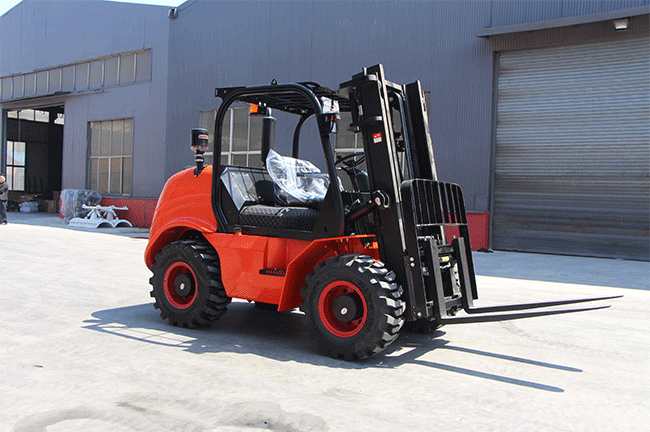

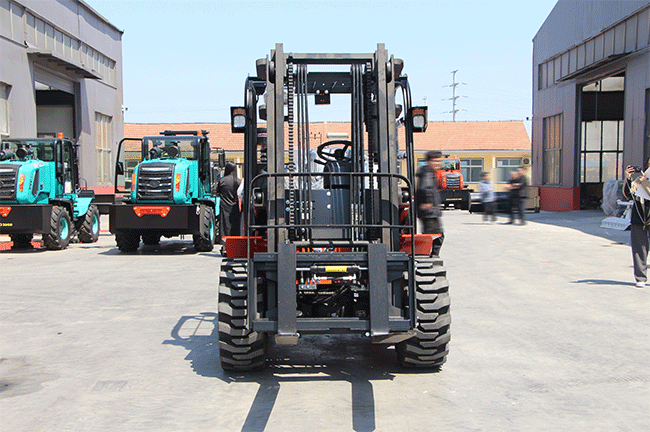

The JTYC35-3 Rough Terrain Forklift combines a 3,500 kg rated load, 1,697 mm wheelbase and 2,500 mm minimum turning radius for material handling in confined outdoor areas. Its 36.8 kW Quanchai diesel engine, 4WD system and 320 mm ground clearance support construction, agriculture and industrial yard operations.
| Model | JTYC35-3 |
| Rated Load | 3,500 kg |
| Lift Height | 3,000–6,000 mm (Optional) |
| Engine | Quanchai National IV 495 Supercharged Common Rail · 36.8 kW |
| Drive Mode | Four-Wheel Drive (4WD) |
| Wheelbase | 1,697 mm |
| Turning Radius | 2,500 mm |
| Overall Dimensions | 2,980 × 1,550 × 2,250 mm |
| Load Center Distance | 600 mm |
| Maximum Climbing Angle | ≤38° |
| Minimum Ground Clearance | 320 mm |
| Mast Tilt Angle | 10° / 20° |
| Maximum Travel Speed | 35 km/h |
| Maximum Hook Pulling Force | 30.0 kN |
| Tire Specification | Chaoyang 20.5/70-16 Semi-Solid |
| Door Frame Width | 160 mm (Weighted) |
| Cargo Length | 1,220 mm (Optional) |
| Vehicle Weight | 5,600–5,900 kg |
The 36.8 kW Quanchai National IV 495 turbocharged common-rail diesel engine powers the 4WD system. With 320 mm ground clearance, Chaoyang semi-solid tires and optional 3–6 m mast heights, the JTYC35-3 supports material movement and pallet handling on suitable outdoor surfaces.
Get factory-direct pricing, mast options and FOB/CIF shipping quotations for your 3.5-ton forklift requirements.
Share your required lifting height, load dimensions and working space through the inquiry form or WhatsApp.
Compact 4WD Maneuverability: A 1,697 mm wheelbase and 2,500 mm turning radius suit restricted outdoor loading areas.
3.5 Ton Load & 320 mm Clearance: Combines heavy pallet handling with ground clearance for suitable uneven surfaces.
Quanchai Diesel & Semi-Solid Tires: 36.8 kW common-rail diesel power and Chaoyang tires for outdoor material handling.
Technical data follows the manufacturer-supplied YGCY-35 All-in-One configuration, marketed as JTYC35-3. Rated load depends on the 600 mm load center, mast configuration and approved capacity plate. Maximum climbing angle and travel speed are not full-load operating guarantees. China National IV emissions classification does not automatically establish EPA or EU compliance.
