JTRC-200 Reverse Circulation Drill Rig | 200 m Mineral Exploration Drilling

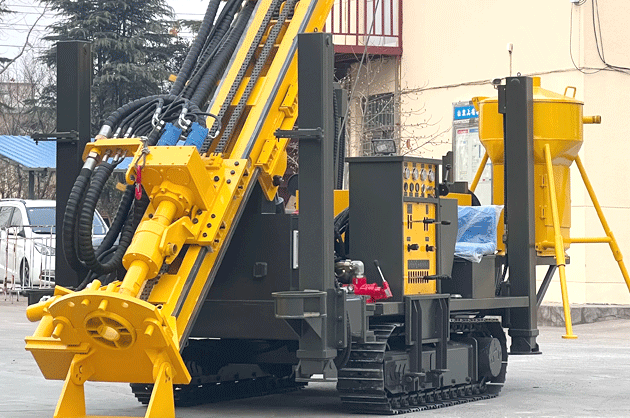

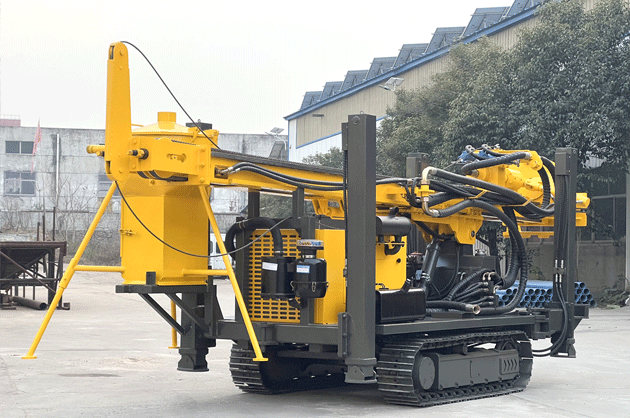

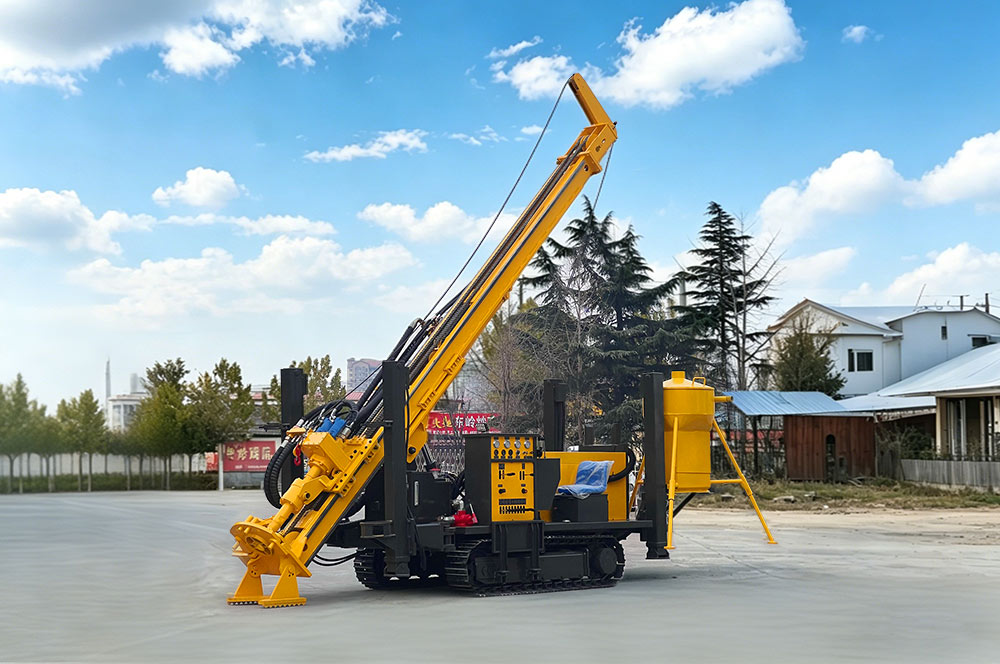

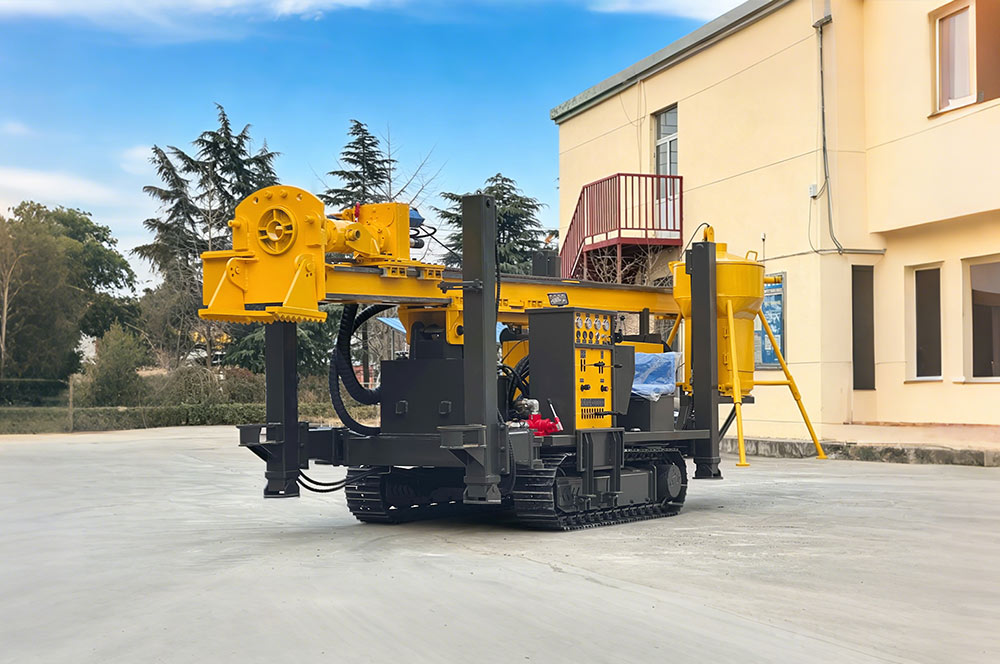

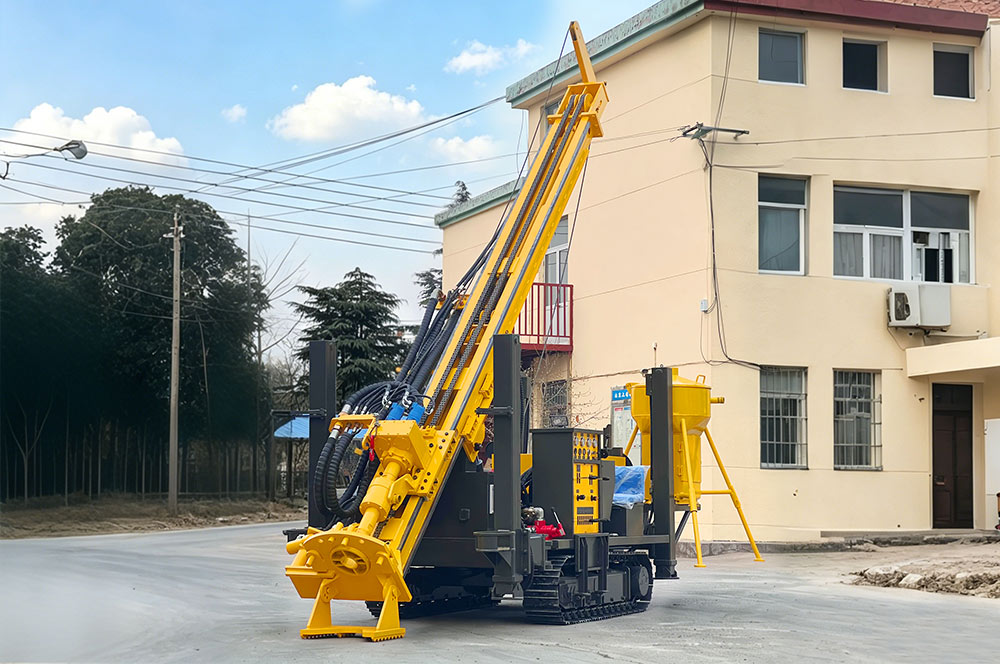

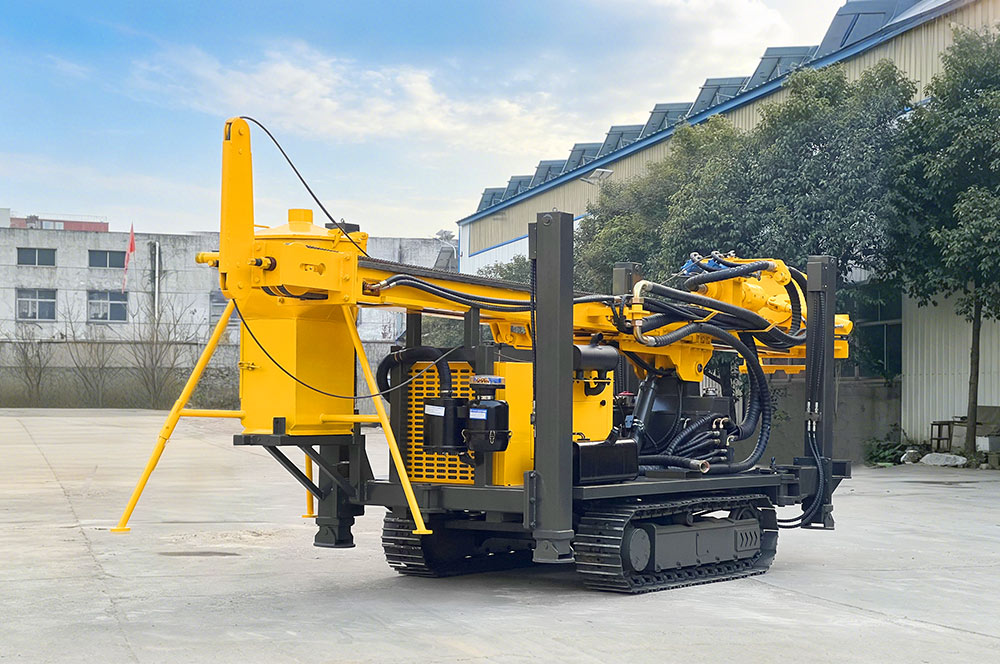

The JTRC-200 Reverse Circulation (RC) Drill Rig is designed for mineral exploration, geological sampling and hard rock drilling. With a 200 m maximum drilling depth, 95–165 mm hole diameter and 77.3 kW Yuchai diesel engine, this crawler-mounted drilling rig combines a high-torque rotary head, 15-ton lifting capacity and 3.6 m feed stroke for demanding exploration projects.

Technical Specifications

Drilling System & Configuration

The JTRC-200 combines a 77.3 kW Yuchai diesel engine with a hydraulic rotary drilling system delivering 5,300–7,600 N·m of torque. Its 3.6 m single feed stroke and 15-ton power head lifting capacity support drilling and drill-string handling in hard rock formations with a stated rock strength range of F = 6–20.

The steel crawler chassis and four hydraulic outriggers support positioning and setup on suitable exploration sites. Drill pipe options include 89 mm and 102 mm diameters, with 1.5 m, 2 m and 3 m lengths. For RC rock-chip sampling, confirm the compatible dual-wall drill string, RC hammer, air compressor, cyclone and sample collection equipment according to project requirements.

Key Advantages

200 m RC Drilling Capability: Designed for reverse circulation drilling in mineral exploration and geological sampling projects, with 95–165 mm drilling diameters.

High-Torque Rotary Head & 15 t Lifting Force: Delivers 5,300–7,600 N·m of rotary torque and a 15-ton lifting capacity for demanding drilling and drill-string handling operations.

Crawler Mobility & Flexible Drill Pipes: Steel crawler chassis, four hydraulic outriggers and multiple drill pipe options support setup and operation across suitable exploration sites.

Main Applications

• Mineral Exploration: reverse circulation drilling for geological investigation and rock-chip sampling in mineral prospecting projects.
• Geotechnical Investigation: drilling exploration boreholes for geological assessment and subsurface formation investigation.
• Hard Rock Drilling Projects: drilling in suitable hard rock formations, including approved borehole applications requiring specialized reverse circulation equipment.

Maximum drilling depth and performance depend on geology, drilling diameter, drill string, bit selection, air supply and operating conditions. RC sampling requires compatible circulation and sample recovery equipment. Air compressor capacity, pressure, RC tooling, cyclone, accessories and actual supply scope must be confirmed in the final technical proposal.
