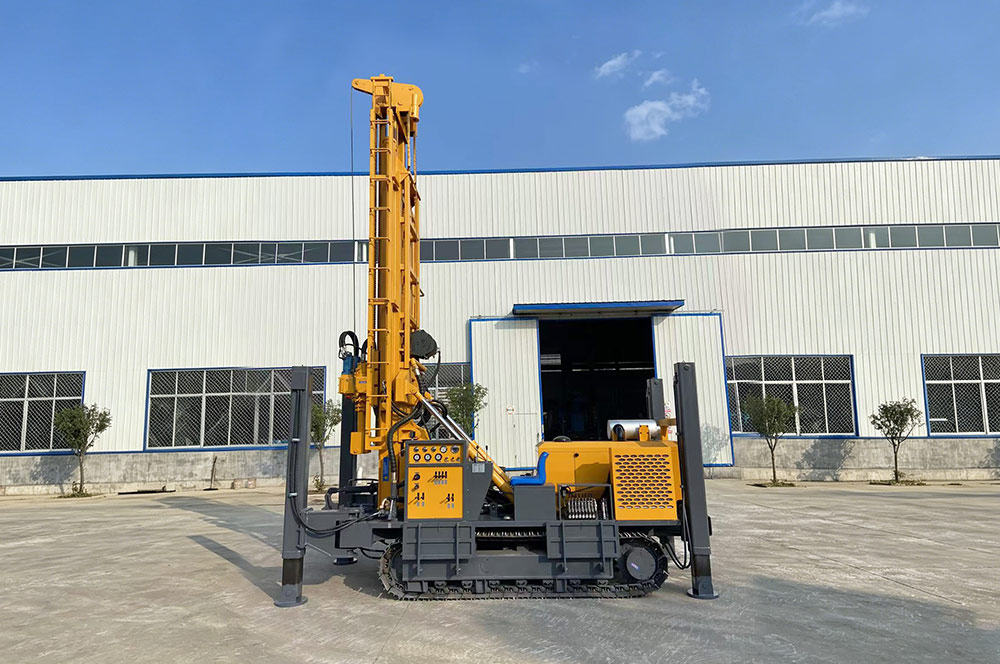

The JTQZ600 is a high-performance full-hydraulic control pneumatic drilling rig engineered for 600m deep drilling, featuring top drive design and multi-stratum adaptability. Ideal for hydrological well exploration, geothermal drilling, shallow coalbed methane/shale gas projects and coal mine gas extraction, it supports air, mud and air foam drilling, delivering efficient, stable performance for diverse field operations.

 Core Advantages

1. 600m Deep Drilling & High Efficiency

140-350mm borehole diameter, Φ102/Φ108/Φ114mm drill pipes (1.5/2/3/6m lengths) and 6.6m one-time advance length cut rod handling time. 8500-11000N·m swing torque, 45-130rpm rotation speed and 15-35m/h penetration efficiency, matched with medium & high pressure impactors (1.7-3.5MPa working pressure, 17-42m³/min air consumption), ensure smooth drilling through complex strata.

2. Powerful & Reliable Core Configuration

Powered by 113kW Cummins engine for strong, long-lasting output; equipped with **Italian imported 3-unit oil pump** for scientific power distribution and stable hydraulic performance. Full-hydraulic control + top drive design boost drilling efficiency and operational precision for heavy-duty deep drilling.

3. Flexible Mobility & Broad Compatibility

Tractor/ground chassis design for excellent maneuverability on rough roads, 30° gradeability and 2.5km/h travel speed for easy remote site deployment (2.85m loading width, 6300×2200×2650mm dimensions). Large through-hole top drive spindle supports air, mud and air foam drilling, adapting to different stratum drilling needs.

4. Safe & Durable Structural Design

28T high lifting force + 2T winch hoisting force handle heavy drill strings at 600m depth with ease; 1.7m high leg stroke ensures stable leveling on uneven ground for precise operation. Hydraulic oil temperature cooling + air cooling dual heat dissipation system prevents overheating, prolonging engine and component service life for 24/7 continuous work.

5. Dual Working Systems & Multi-Scenario Use

Supports air power system (air compressor) and mud pump system dual configurations for customized drilling based on stratum characteristics. Widely applicable to hydrological exploration, geothermal drilling, coalbed methane projects and coal mine gas extraction—one rig for multiple industrial applications.

Key Applications

- 600m deep hydrological well resource exploration

- Geothermal well drilling & shallow coalbed methane/shale gas projects

- Coal mine gas extraction and salvage operations

- Water well construction in complex mountainous/rocky strata

- Industrial mining water supply well drilling

Why Choose JTQZ600?

Integrates 600m deep drilling capability, full-hydraulic precision control and multi-application adaptability, with brand core components and durable structural design minimizing downtime and maintenance costs. Its flexible mobility and dual drilling systems make it a cost-effective professional solution for drilling contractors and energy exploration teams across hydrology, geothermal and coal industry projects.

Get in Touch

Contact our technical team for customized air/mud system configuration, detailed specs and on-site support, and power your deep drilling projects with the JTQZ600 pneumatic rig.
