JTQZ-200 Pneumatic Water Well Drilling Rig | 200 m

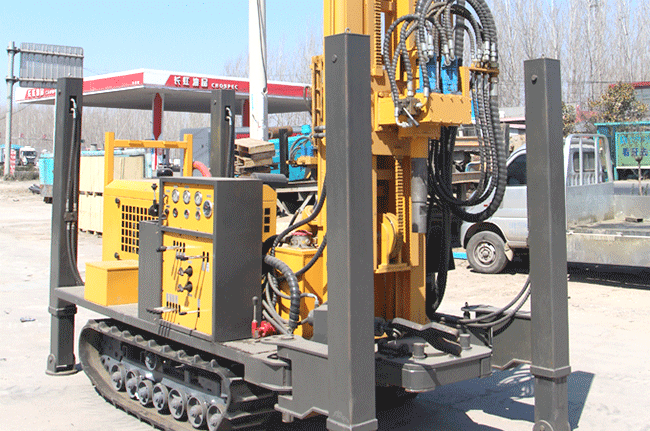

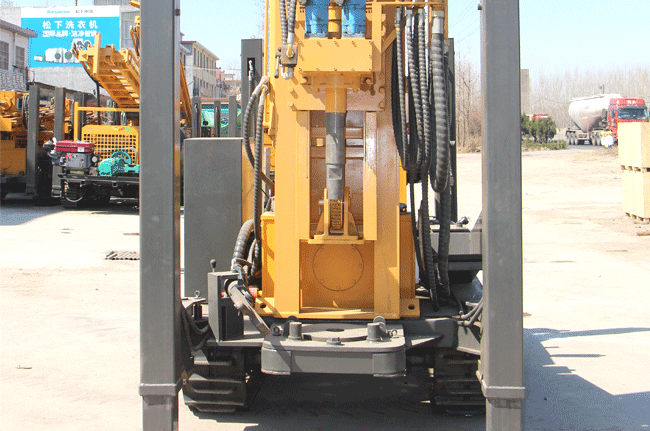

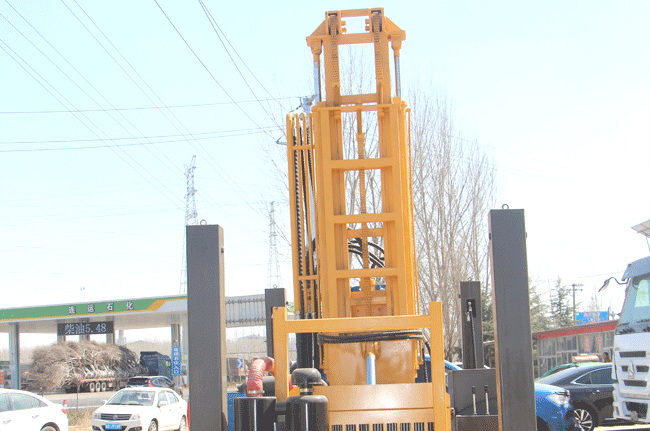

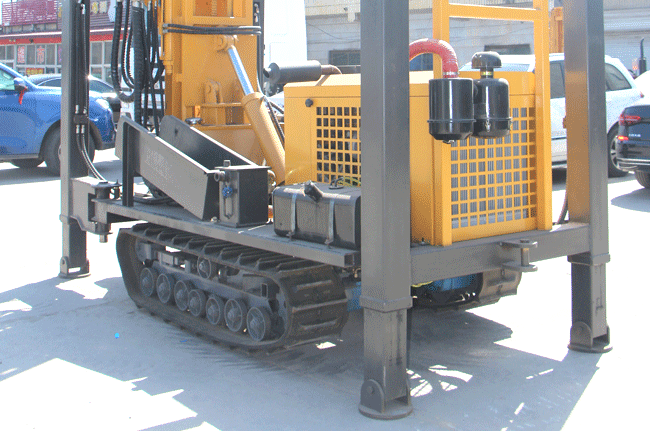

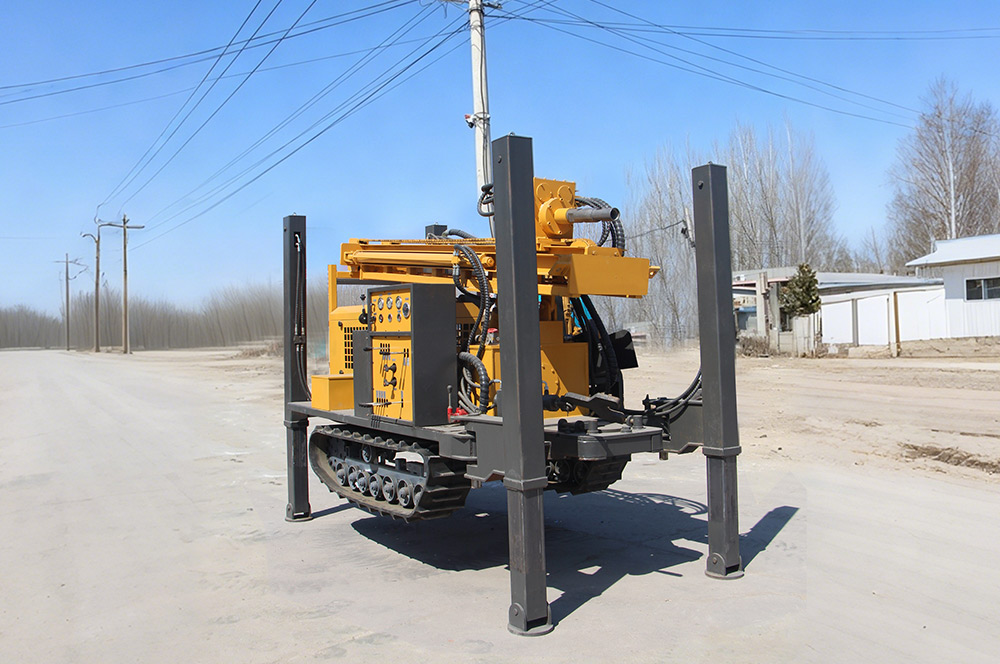

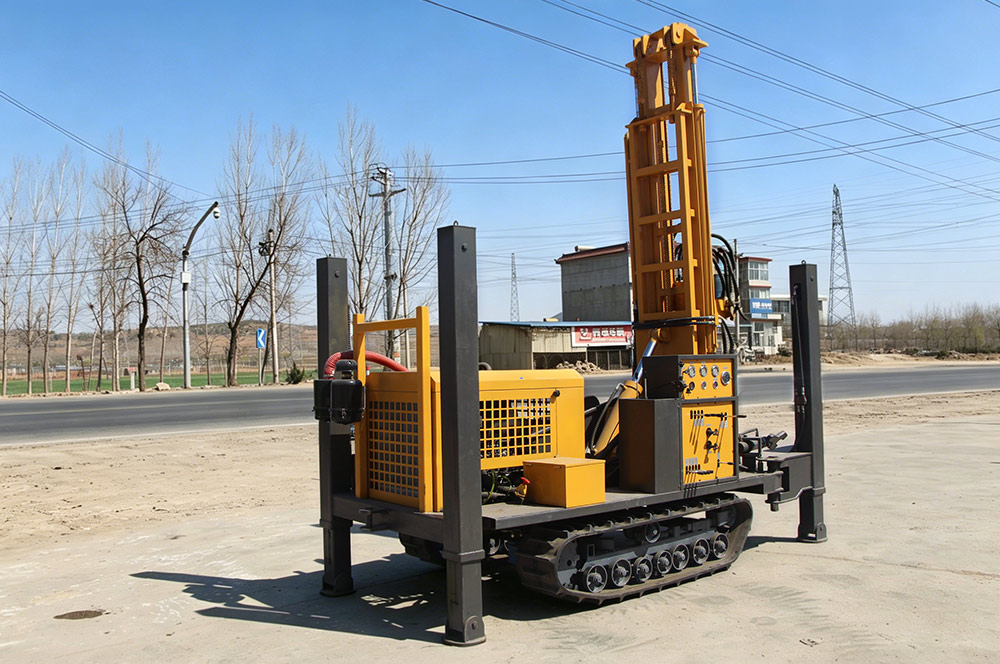

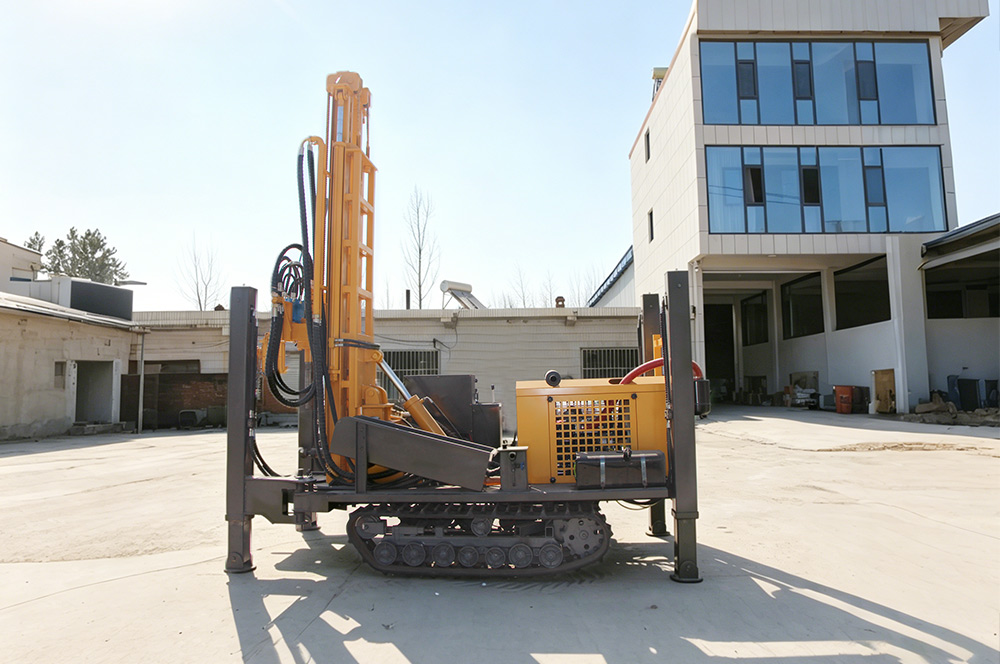

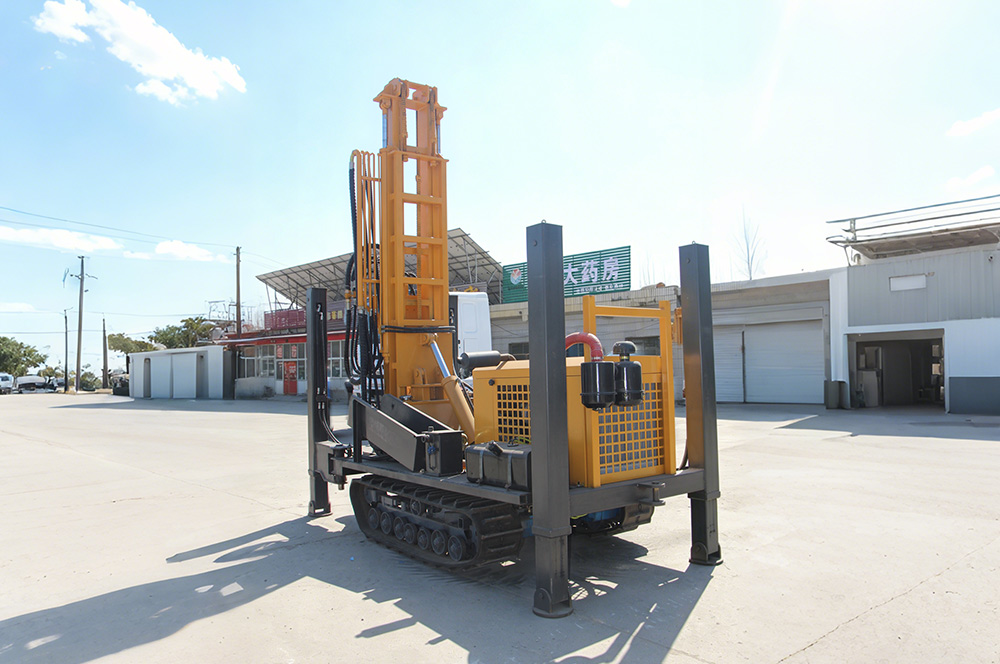

The JTQZ-200 is a crawler-mounted pneumatic water well drilling rig for rural water supply, farm irrigation and industrial wells. It offers a nominal drilling depth of 200 m, bore diameters of 140–254 mm, a 58 kW Quanchai diesel engine and 13 t lifting force.

Technical Specifications

Air Compressor & Configuration

The JTQZ-200 supports pneumatic drilling with a compatible air compressor and DTH hammer. Compressor capacity, drill bits and rods are selected according to bore diameter and ground conditions. Included accessories depend on the quotation.

Key Advantages

200 m Water Well Drilling: supports 140–254 mm bore diameters for agricultural, rural and industrial water projects.

13 t Lifting Force & 3.3 m Feed Stroke: support drill-string handling and extended feed travel during drilling operations.

3,400–4,700 N·m Rotary Torque: provides hydraulic rotary capability, while the 4.7 t crawler design supports movement between drilling sites.

Main Applications

• Farm Irrigation: water wells for crop irrigation and agricultural operations.
• Rural Water Supply: groundwater wells for villages, farms and small communities.
• Industrial Water Wells: borehole drilling for industrial water supply and infrastructure projects.

Actual drilling depth and performance depend on geology, bore diameter, tooling and compressed-air supply. Confirm the engine configuration and included accessories before ordering.
