Drilling depth: 300m
Drilling diameter: 140-325mm
Main motor power: 85kw
Back to List

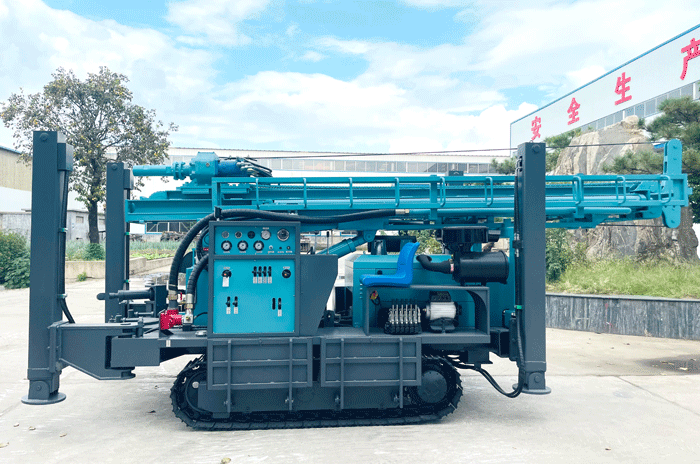

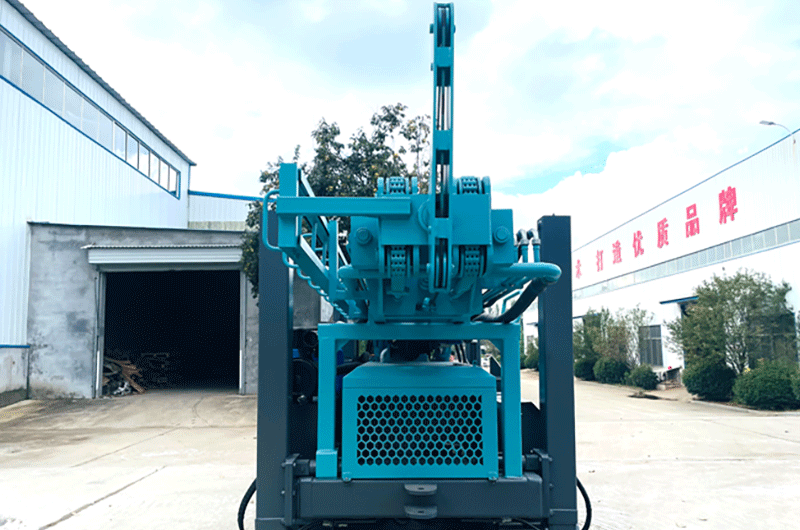

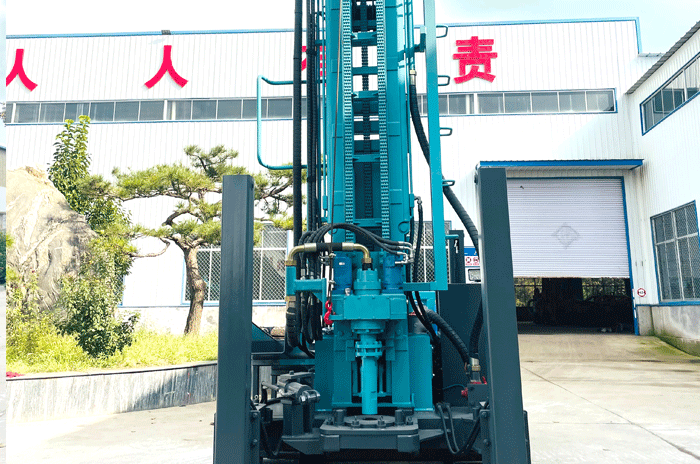

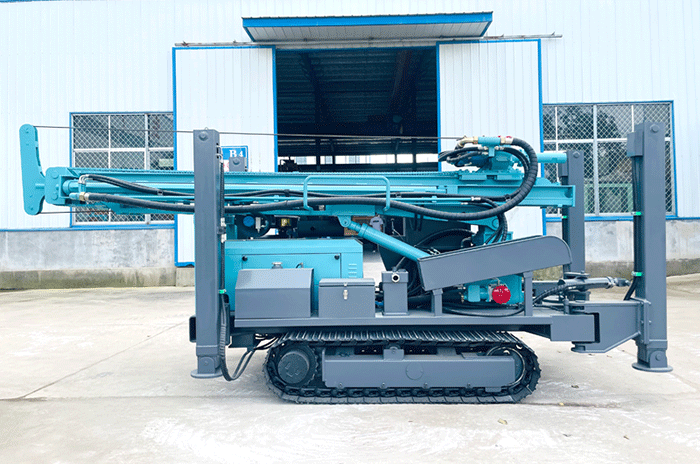

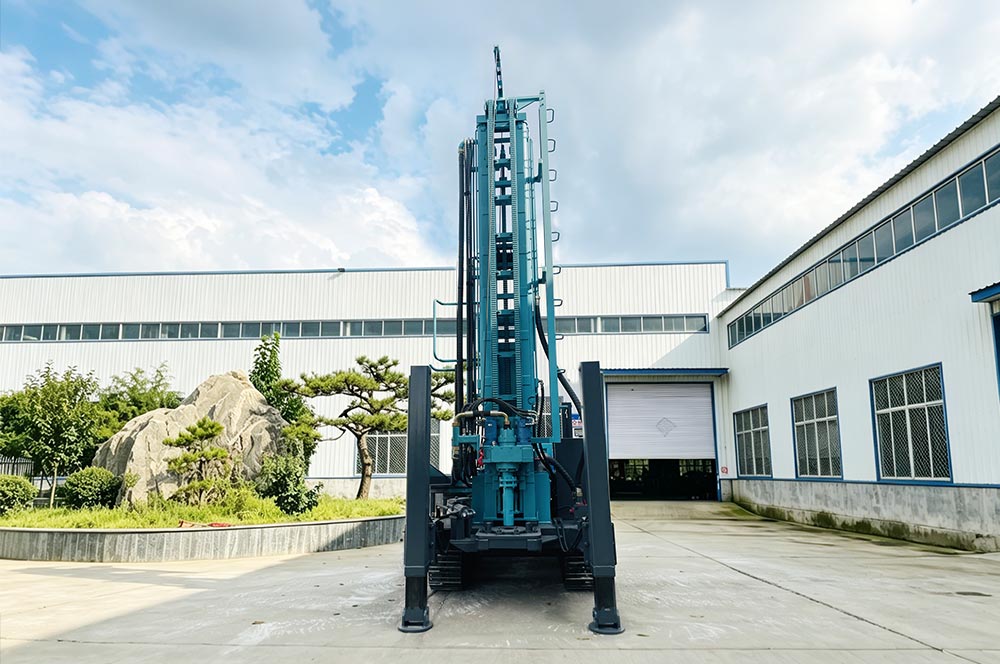

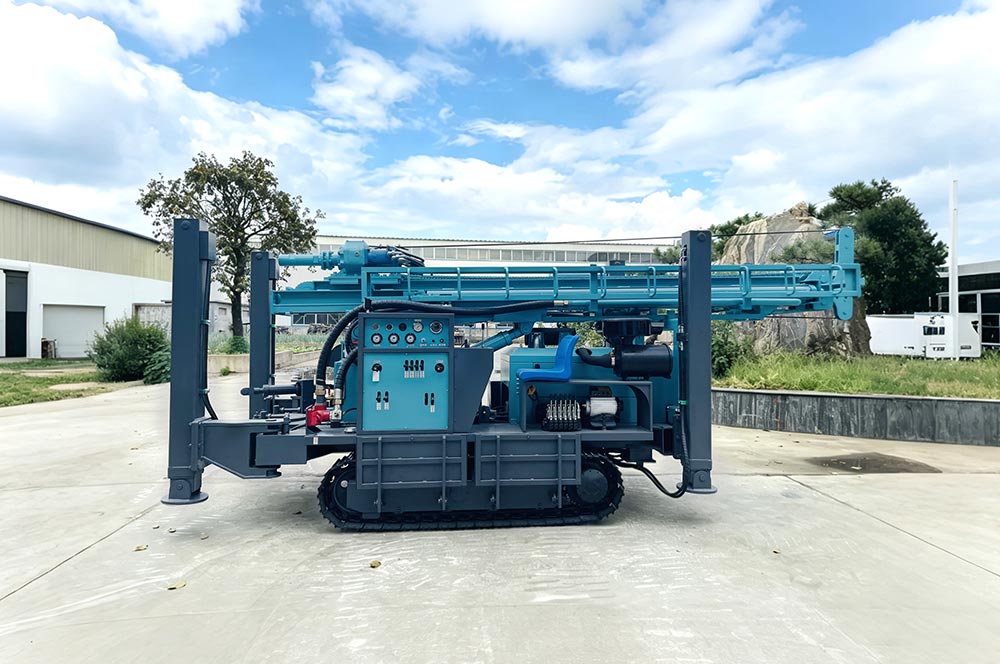

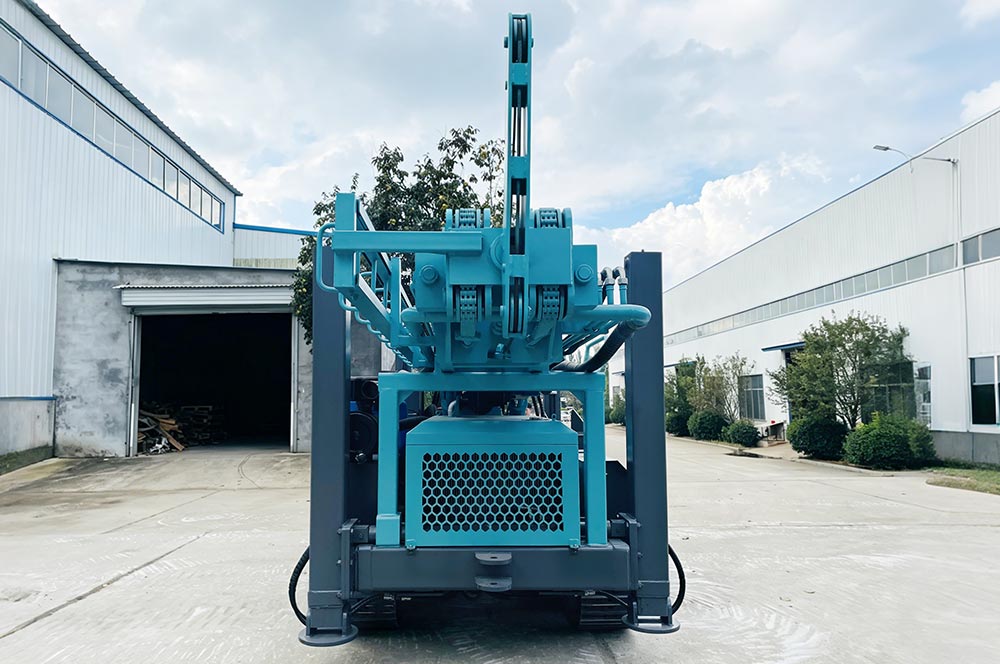

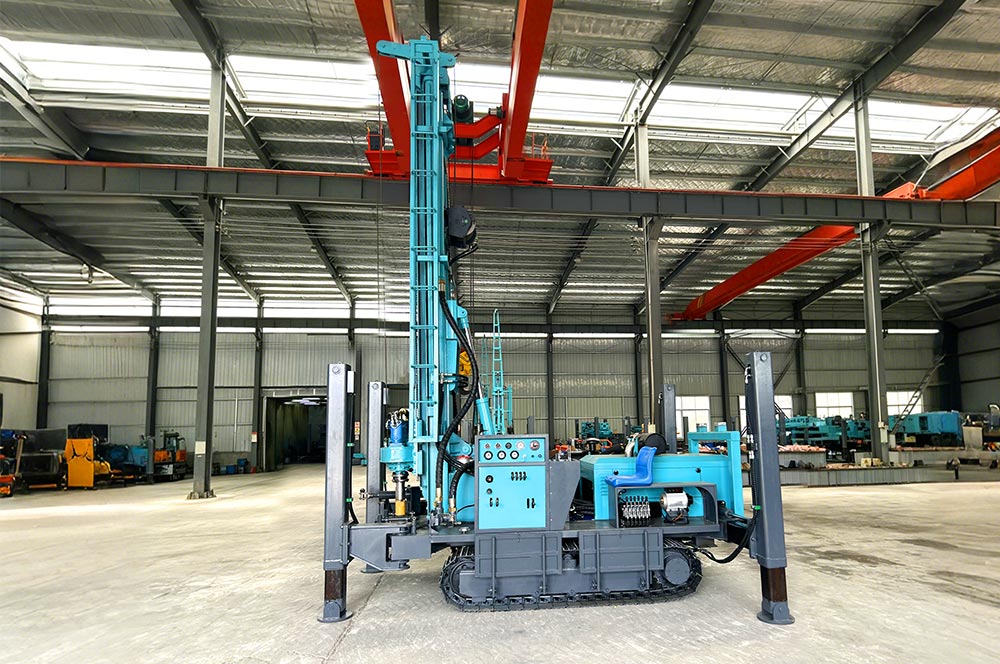

The JTQZ-300-2 is a crawler-mounted hydraulic water well drilling rig designed for agricultural, municipal and industrial water projects. It offers a nominal drilling depth of 300 m, bore diameters of 140–325 mm, a 85 kW Yuchai diesel engine and 18 t lifting force. Its 6.6 m feed stroke supports the use of longer drill rods.
| Model | JTQZ-300-2 |
| Drilling Depth | 300 m |
| Drilling Diameter | 140–325 mm |
| Diesel Engine | Yuchai · 85 kW |
| Lifting Force | 18 t |
| Feed Stroke | 6.6 m |
| Air Pressure | 1.7–3.0 MPa |
| Air Consumption | 17–36 m³/min |
| Machine Weight | 8,000 kg |
| Dimensions | 5,900 × 1,850 × 2,200 mm |
| Rotary Torque | 5,700–7,500 N·m |
| Rotation Speed | 40–70 rpm |
| Drill Rod Diameter | 76 / 89 / 102 mm |
| Drill Rod Length | 1.5 / 2.0 / 3.0 / 6.0 m |
| Rapid Lifting Speed | 22 m/min |
| Fast Feed Speed | 40 m/min |
| Travel Speed | 2.5 km/h |
| Stabilizer Stroke | 1.4 m |
The JTQZ-300-2 supports pneumatic drilling with a compatible air compressor and DTH hammer. Its 6.6 m feed stroke accommodates 6 m drill rods. Compressor capacity, drill bits and rods are selected according to bore diameter and ground conditions. Included accessories depend on the quotation.
Request factory-direct pricing, technical specifications and an FOB or CIF quotation for your destination.
Ask about the rig alone or packages with an air compressor, DTH hammer, drill bits and rods, subject to availability.
Contact us via WhatsApp or the inquiry form. Share your country, target depth and ground conditions for a tailored proposal.
6.6 m Extended Feed Stroke: accommodates 6 m drill rods and can reduce rod connection frequency compared with shorter-stroke setups.
300 m Drilling & 18 t Lifting Force: support deep water well projects and drill-string handling across a 140–325 mm bore range.
5,700–7,500 N·m Rotary Torque: provides hydraulic rotary capability for demanding ground conditions, supported by a crawler-mounted design.
Actual drilling depth and performance depend on geology, bore diameter, tooling and compressed-air supply. Confirm compressor requirements, rod compatibility and included accessories before ordering.
