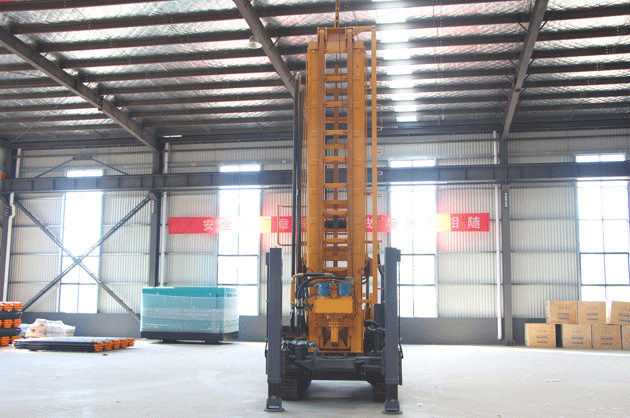

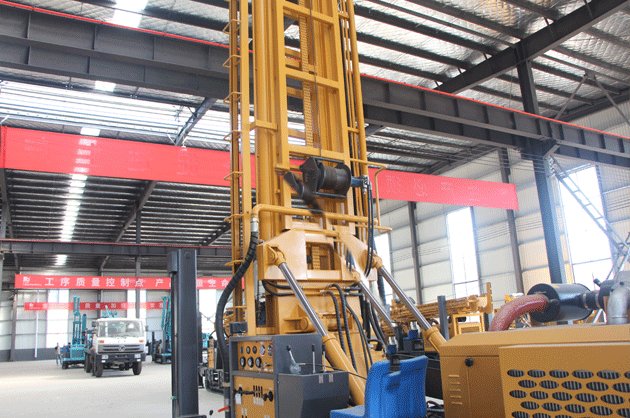

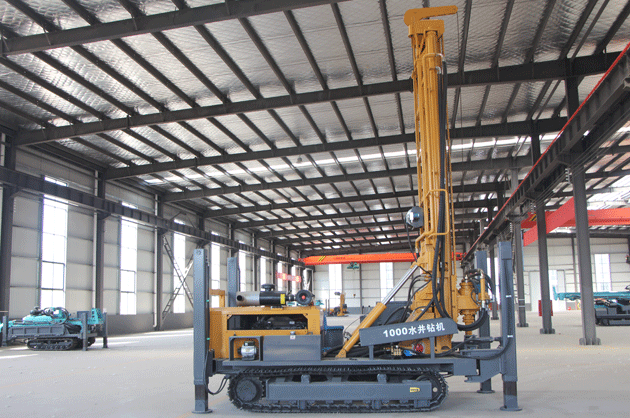

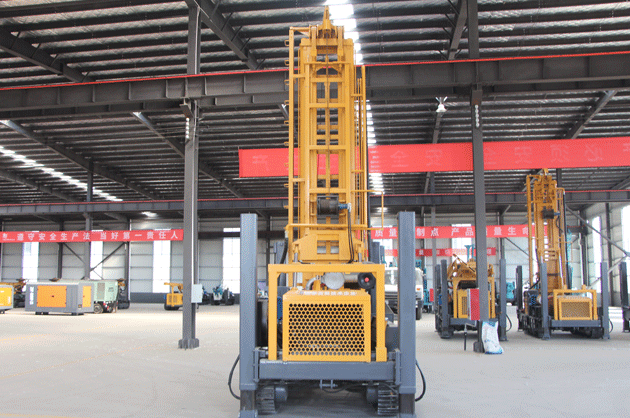

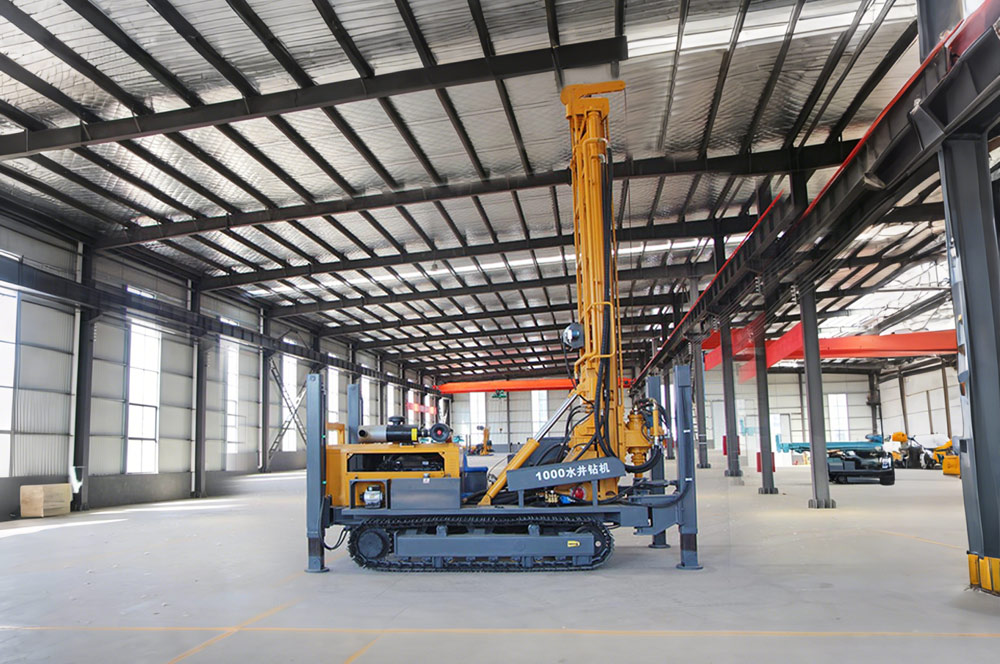

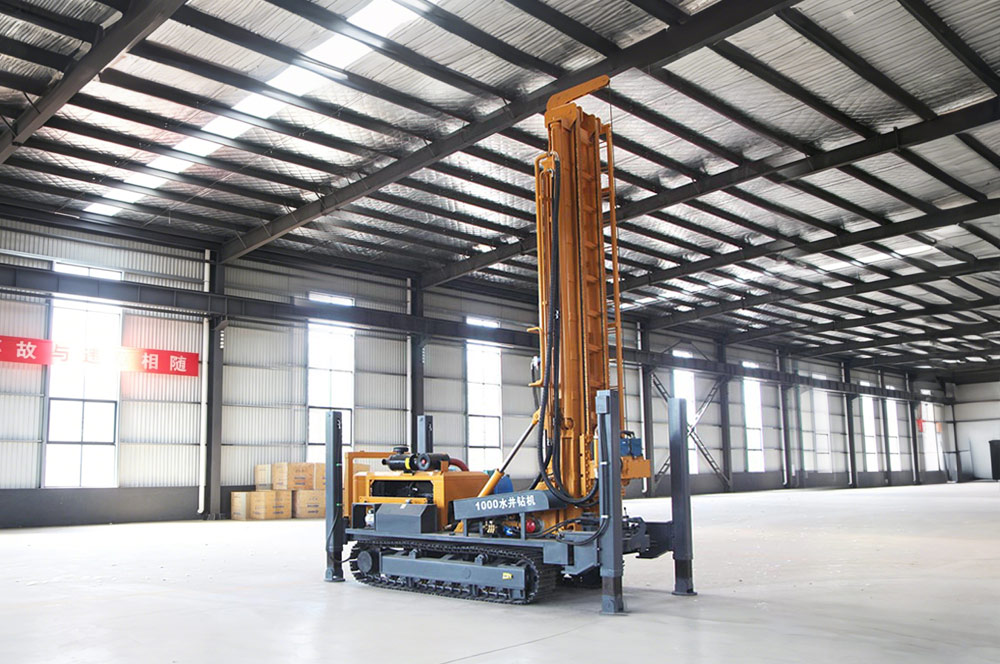

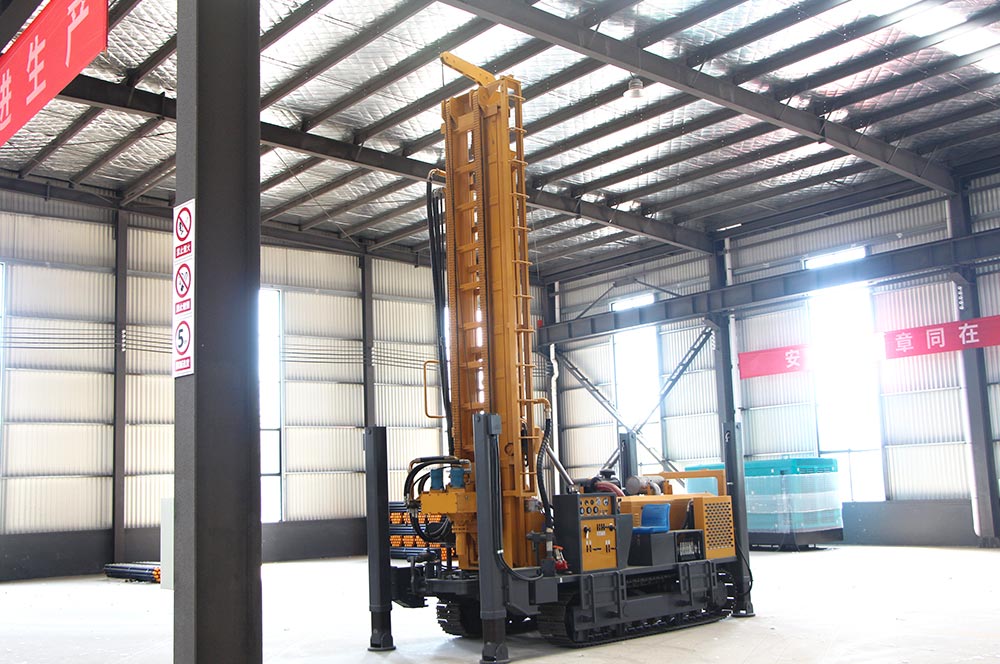

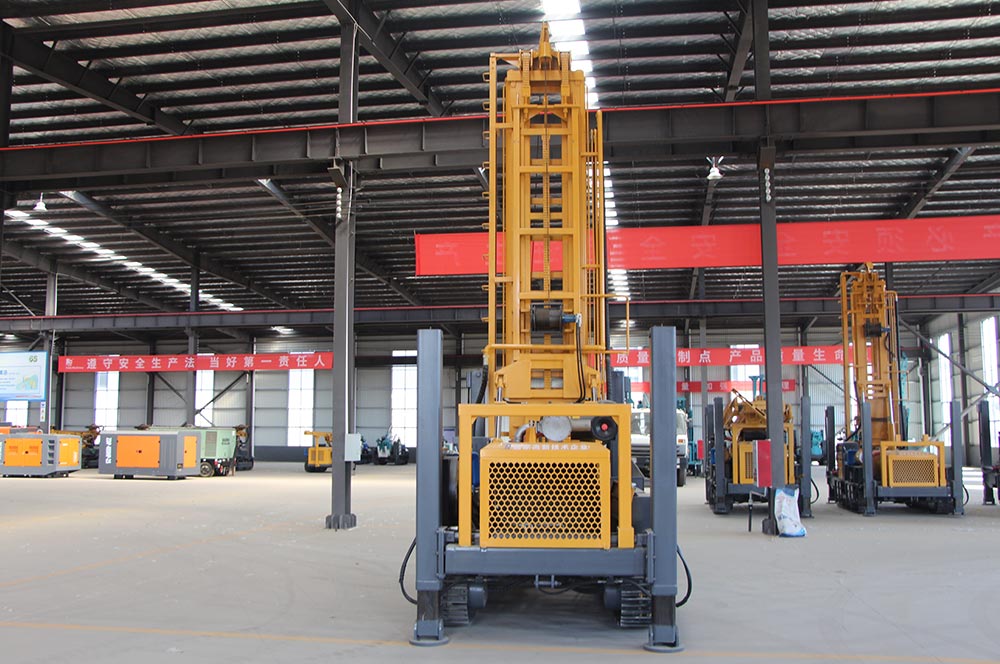

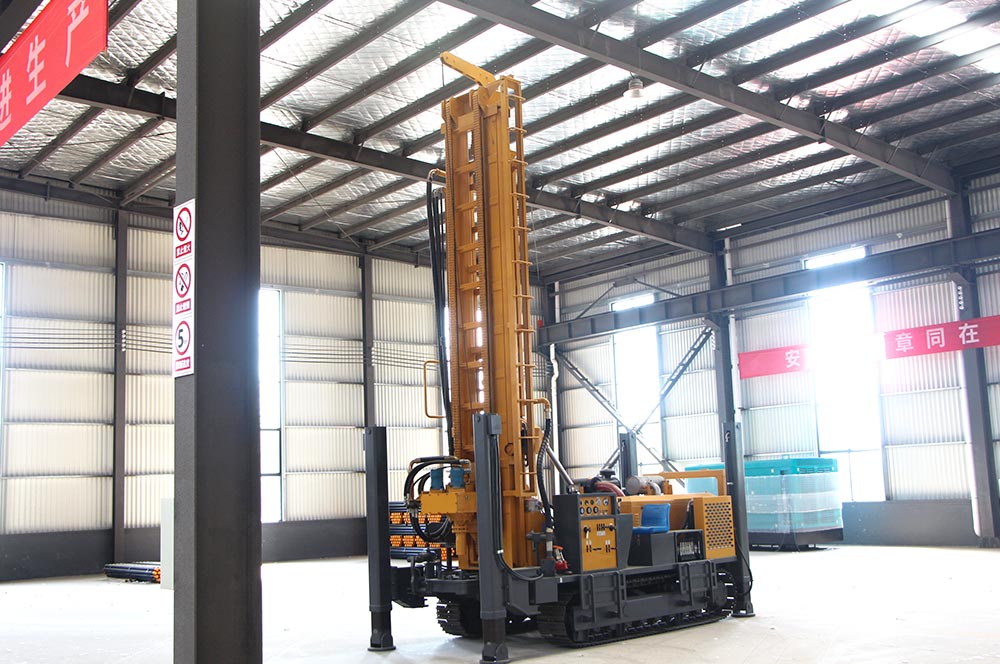

The JTQZ1000 is a professional crawler-mounted pneumatic water well drilling rig engineered for 1000m ultra-deep drilling, built with high-strength steel structure and Cummins 194kW power. It excels in complex hard rock, mud and sand strata, delivering high penetration efficiency and stable performance for deep water well construction, hydrological exploration and industrial mining water supply projects.

Core Advantages

1.1000m Ultra-Deep Drilling & High Efficiency

140-400mm wide borehole diameter, Φ102/Φ108/Φ114/Φ117mm drill pipes (1.5/2.0/3.0/6.0m lengths) and 6.6m one-time advance length minimize rod handling time. 9000-14000N·m swing torque, 45-140rpm rotation speed and 15-35m/h penetration efficiency, paired with 1.7-3.5MPa working air pressure and 17-42m³/min air consumption, ensure smooth drilling through tough strata at full depth.

2. Powerful Cummins Core Power

Powered by a 194kW Cummins turbocharged engine, it delivers robust, reliable power for ultra-deep drilling operations, with excellent durability in harsh field conditions. The high-power output supports continuous 24/7 work, meeting the demands of large-scale deep well projects.

3. Reinforced Structure & Stable Operation

36T high rig lifting force and 2T winch hoisting force handle heavy drill strings at 1000m depth with ease; 1.7m high leg stroke ensures stable leveling on uneven terrain. 20m/min rapid rise speed and 40m/min fast feeding speed boost operational efficiency, while high-strength steel body resists pressure and corrosion for long service life.

4. Strong Mobility & Easy Deployment

Reinforced crawler chassis with 30° maximum gradeability and 2.5km/h travel speed, adapting to rugged mountainous and remote areas. 2.95m loading width and 6300×2300×2950mm dimensions enable easy truck transportation and quick on-site setup for deep drilling projects.

5. Multi-Functional & Cost-Effective

Integrates drilling, well cleaning and well repair functions in one machine, offering high cost-effectiveness. Supports air power system (air compressor)and mud pump system dual configurations, adapting to diverse stratum and operational needs with one rig for multiple uses.

Key Applications

- 1000m deep water well drilling in complex strata and remote mountainous areas

- Hydrological resource exploration and large-scale agricultural irrigation well construction

- Industrial and mining site water supply well drilling and gas extraction

- Geothermal well development and shallow oil & gas exploration projects

Why Choose JTQZ1000?

The JTQZ1000 integrates 1000m ultra-deep drilling capability, Cummins high-power system and multi-functional design, with reinforced structure and stable performance minimizing downtime and maintenance costs. It’s the professional choice for drilling contractors and energy exploration teams engaged in ultra-deep water well and resource drilling projects.

 Get in Touch

Contact our technical team for customized air/mud system configuration, detailed specs and on-site support, and power your 1000m deep drilling projects with the JTQZ1000 pneumatic rig.
