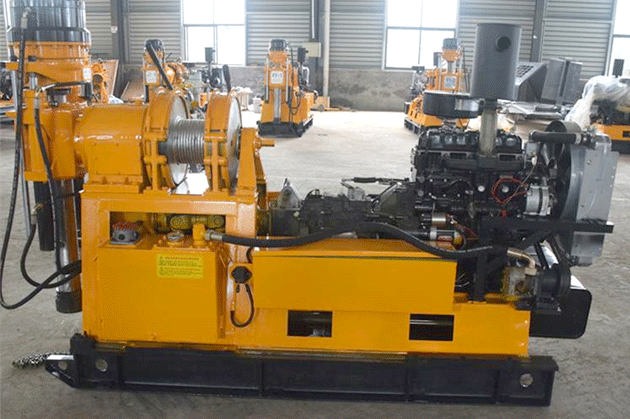

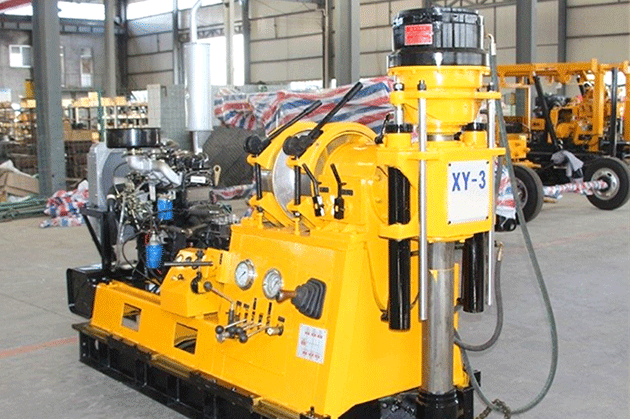

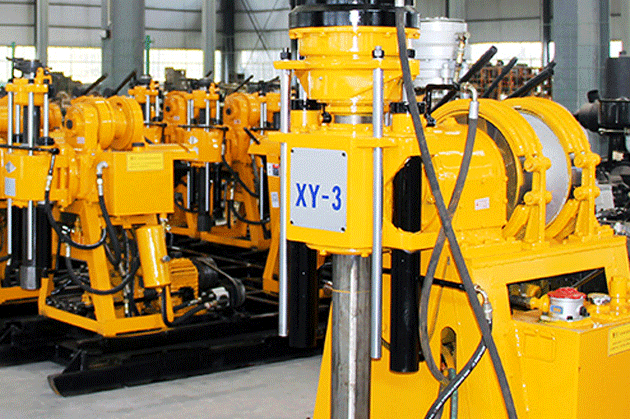

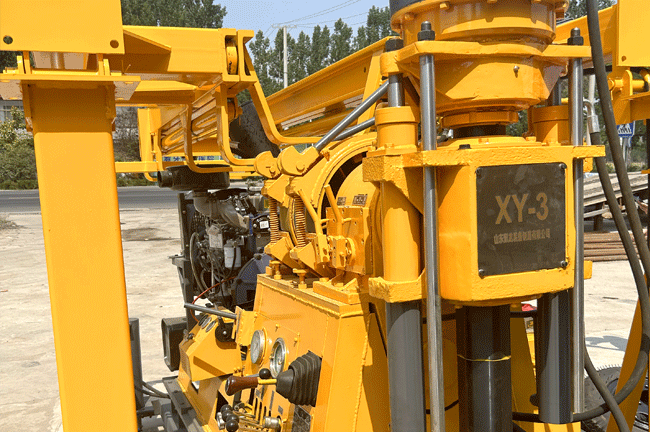

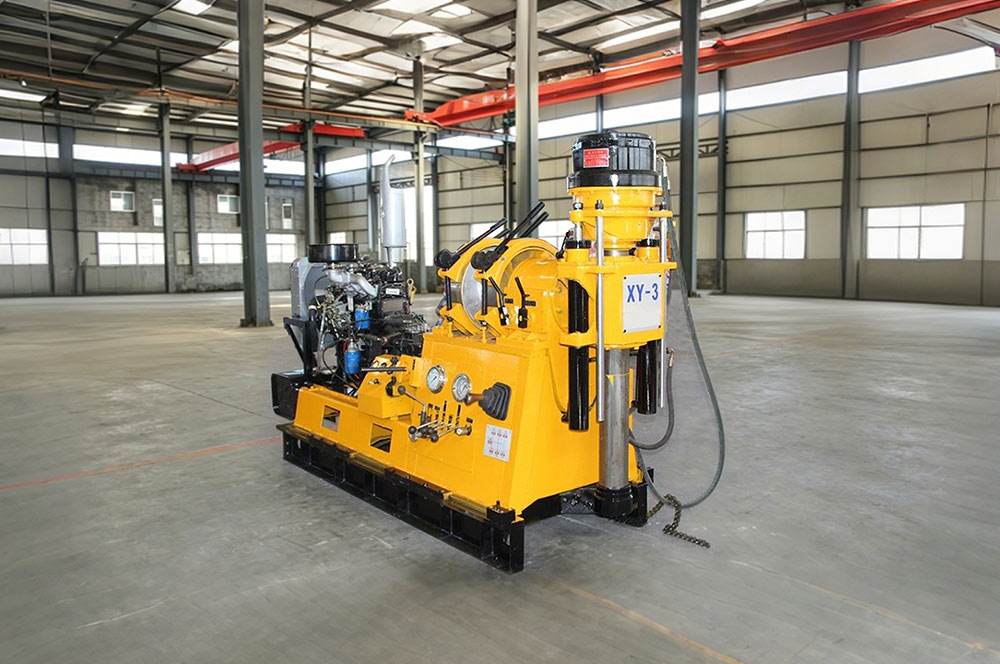

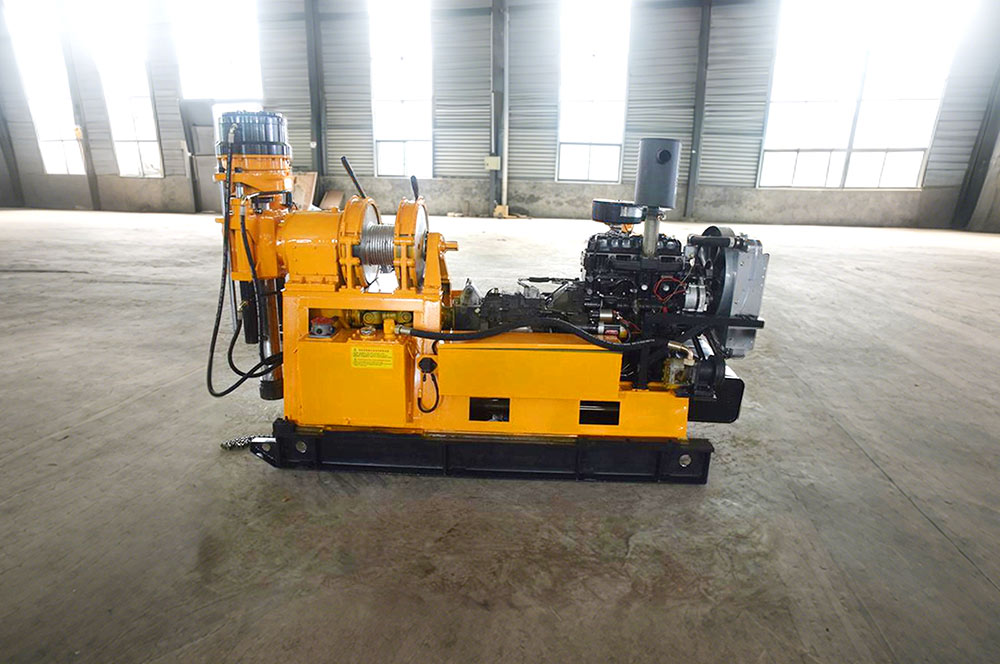

JTXY-3 Hydraulic Drill Rig

600m Drilling Depth | 75-300mm Diameter | 65°-90° Angle | 6t Vertical Lift

Product Overview

The JTXY-3 hydraulic drill rig is a professional-grade machine built for deep-hole drilling up to 600 meters. Ideally suited for geological exploration, foundation engineering, and civil water well projects, it provides small-to-medium teams with extended depth reach, flexible multi-angle drilling, and stable handling performance required for complex ground conditions.

Technical Specifications

Parameter	Specification
Model	JTXY-3
Max Drilling Depth	600 m
Drilling Diameter	75 - 300 mm
Drilling Angle	65° - 90°
Vertical Shaft Lifting Capacity	6 t
Single Rope Lifting Capacity	4 t
Single Rope Lifting Speed	0.5 - 1.9 m/s
Drill Rod Diameter	60 mm
Drum Capacity	50 m
Wire Rope Diameter	12.5 mm

Key Features

600m Deep-Drilling Reach: Offers superior depth capabilities, allowing contractors to take on deeper exploration and engineering projects than standard mid-range rigs.
Multi-Angle Flexibility: Supports 65°-90° drilling angles, making it highly adaptable for both vertical well drilling and inclined foundation testing.
Versatile Hole Range: The 75-300mm diameter range ensures compatibility with a variety of bore sizes, from precise exploration holes to large-opening civil wells.
Enhanced Lifting Power: Features a robust 6-ton vertical shaft lift and an upgraded 4-ton rope hoist, providing steady tool handling for 600m-class work.
Stable Hoisting Performance: Variable lifting speeds (up to 1.9 m/s) provide the precision and efficiency needed for daily rod handling and tool management.
